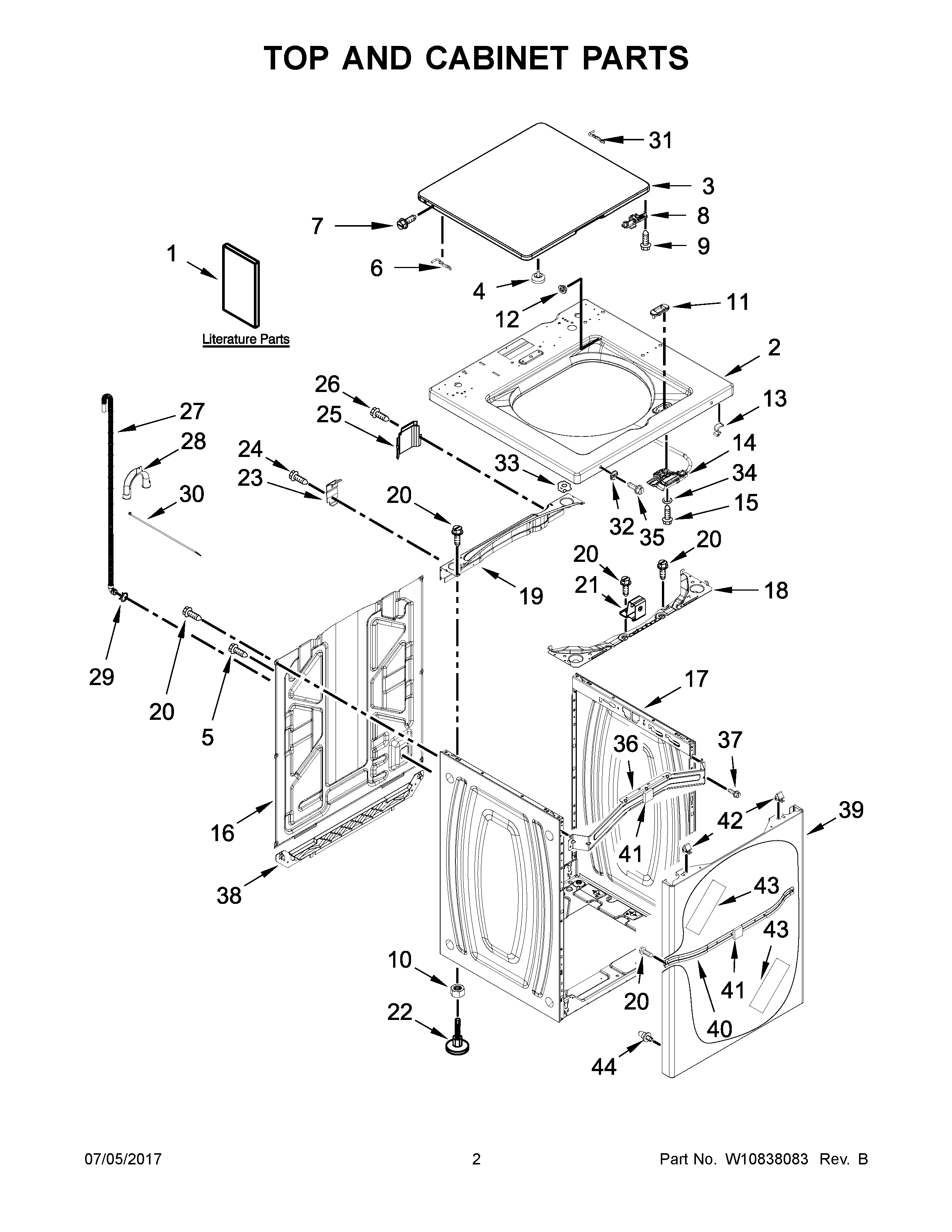

CAE2795FQ0 02 – TOP AND CABINET PARTS

Products

Position	Product
1C	QUICK START GUIDE
1B	TECH SHEET
1	USE AND CARE GUIDE
1A	INSTALLATION INSTRUCTIONS
2	TOP (WHITE)
3	WPW10338625 Whirlpool Lid
4	W11252488 Whirlpool Bumper
5	WP9740848 Whirlpool Dishwasher Screw
6	WP91770 Whirlpool Hinge
7	SCREW
8	WPW10240513 Whirlpool Strike
9	WPW10273971 Whirlpool Screw
10	WP3359452 Whirlpool Nut
11	WPW10392041 Whirlpool Dishwasher Lid Lock Bezel
12	WP21258 Whirlpool Washer Lid Hinge Bearing
13	WP90016 Whirlpool Clip
14	LATCH
15	W11679611 Whirlpool Commercial Part Screw
16	W11486091 Whirlpool Rear Panel
17	W10845574 Whirlpool Cabinet Assembly
18	W11695476 Whirlpool Brace Support
19	W11712680 Whirlpool Commercial Part Brace
20	W11685943 Whirlpool Screw
21	W10461182 Whirlpool Lock
22	W10862938 Whirlpool Leveling Feet
23	W10461176 Whirlpool Hinge
24	WP489128 Whirlpool Refrigerator Screw
25	W10461180 Whirlpool Cover Assembly
26	W10846509 Whirlpool Screw
27	W11244231 Whirlpool Hose
28	WPW10280024 Whirlpool Retainer
29	WP356138 Whirlpool Hose Clamp
30	WPW10339879 Whirlpool Wire Tie
31	WP54583 Whirlpool Hinge
32	W10461181 Whirlpool Bushing
33	WP90406 Whirlpool Nut
34	W10318627 Whirlpool O-Ring
35	W11170603 Whirlpool Screw
36	BRACKET, FRONT TOP
37	WP489442 Whirlpool Refrigerator Screw
38	BRACKET, BASE
39	W11704945 Whirlpool Panel Assembly
40	W10866521 Whirlpool Bracket Note
41	WP8283273 Whirlpool Pad
42	W11376161 Whirlpool Lock Assembly
43	W11096159 Whirlpool Sound ABS Assembly
44	W11590580 Whirlpool Locator
