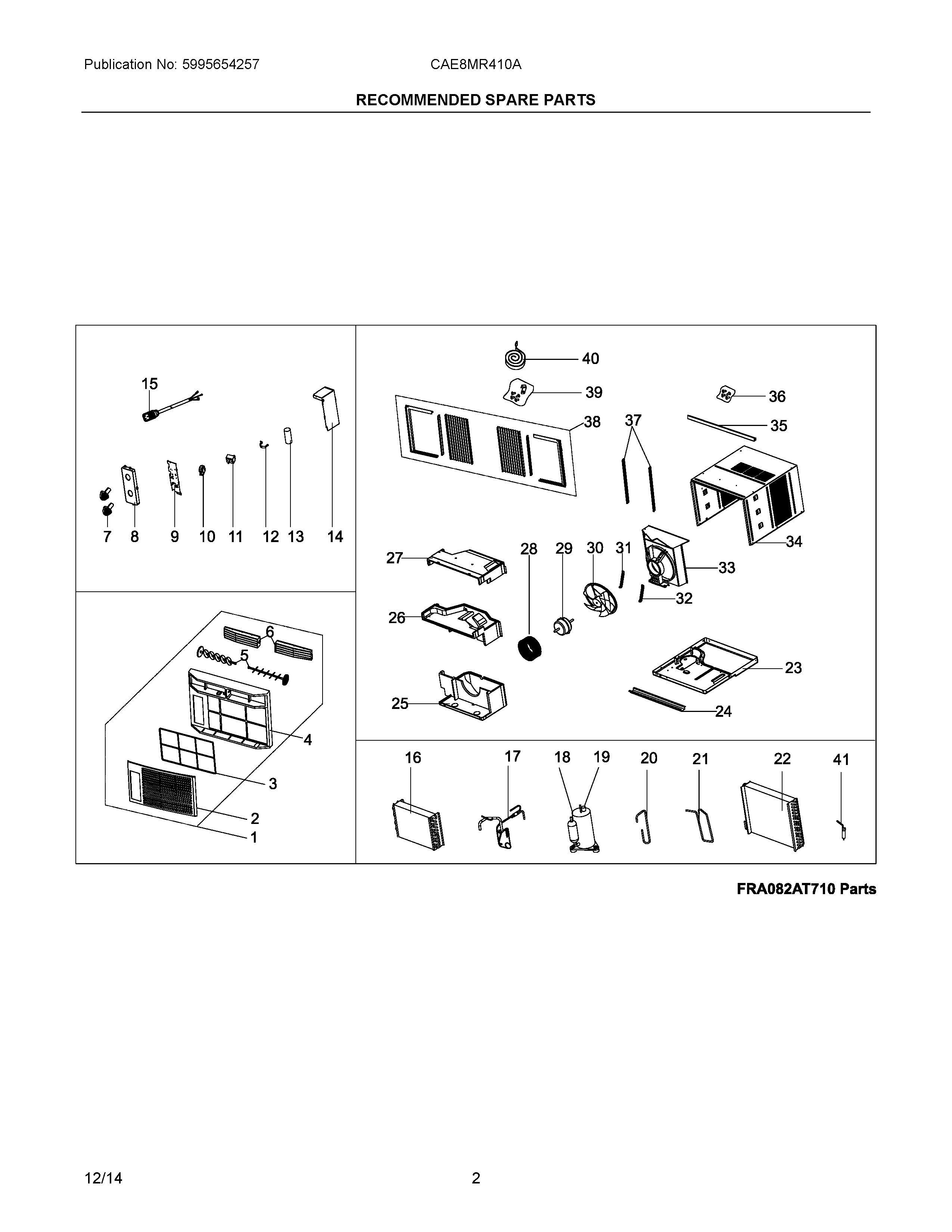

CAE8MR410A19 02 – RECOMMENDED SPARE PARTS

CAE8MR410A19 02 – RECOMMENDED SPARE PARTS

Written by

in

CAE8MR410A19 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304492076
2WCI 5304492077
3WCI 5304492078
4WCI 5304492079
55304492080 Frigidaire LOUVER
65304492081 Frigidaire Louver Assembly
7Knob Assembly,control ,w/spring
8WCI 5304477135
9WCI 5304477053
10Sensor Assembly,temperature
11Switch,master ,rotary
12Strap,capacitor clamp
13WCI 5304476003
14WCI 5304486035
15WCI 5304487573
16Evaporator,with ,capillary tube
17· Tube,capillary
185304489721 Frigidaire Air Conditioner Compressor
195304492022 Frigidaire Air Conditioner Overload Protector
20Tube,suction
21Tube,discharge
22WCI 5304492025
23Base,unit chassis
24WCI 5304483091
25WCI 5304476557
26WCI 5304486038
27WCI 5304486039
28WCI 5304476051
29Motor,fan
30Fan Blade,axial
33Shroud,condenser/fan
34WCI 5304483093
35Rail,shutter track ,top
36Screw Kit,top rail mount
37WCI 5304476523
38WCI 5304476524
395304491953 Frigidaire Air Conditioner Hardware
40Seal kit,foam ,sash filler
415304476367 Frigidaire Air Conditioner Filter Drier
