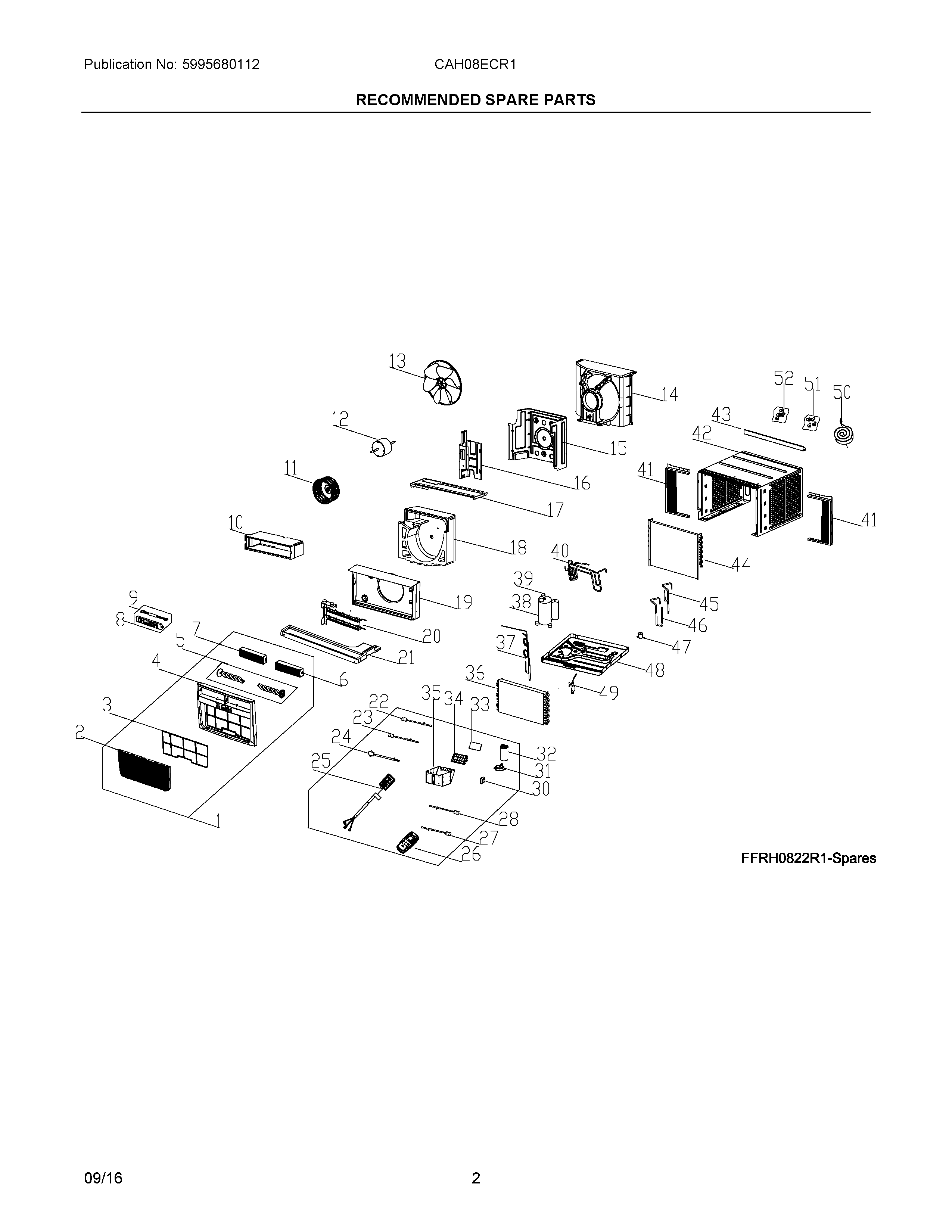

CAH08ECR11 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	Panel,front assy
2	Panel,front grill
3	5304535825 Frigidaire Air Filter
4	WCI 5304483567
5	Louver,vertical
6	Louver,horizontal ,right
7	Louver,horizontal ,left
8	PC Board,display/input
9	5304495009 Frigidaire Air Conditioner Wire
10	WCI 5304501888
11	5304471312 Frigidaire Air Conditioner Blower Wheel
12	5304501889 Frigidaire Air Conditioner Motor
13	5304507757 Frigidaire Air Conditioner Fan Blade
14	WCI 5304501062
15	WCI 5304501063
16	WCI 5304501064
17	WCI 5304501065
18	WCI 5304501890
19	WCI 5304501067
20	5304477339 Frigidaire Air Conditioner Heater
21	WCI 5304501068
22	SENSOR
23	5304512374 Frigidaire Air Conditioner Sensor
24	5304512375 Frigidaire Air Conditioner Sensor
25	5304501891 Frigidaire Air Conditioner Power Cord
26	Remote Control,transmitter
27	5304483216 Frigidaire Air Conditioner Sensor
28	5304490066 Frigidaire Air Conditioner Sensor
30	5304470989 Frigidaire Air Conditioner Transformer
31	WCI 5304501069
32	5304471294 Frigidaire CAPACITOR
33	5304496429 Frigidaire Air Conditioner PC Board
34	WCI 5304495029
35	WCI 5304501070
36	WCI 5304501892
37	5304501893 Frigidaire Air Conditioner Tube
38	WCI 5304493827
39	WCI 5304495930
40	WCI 5304501954
41	Window Filler Kit,slider panels ,accordion
42	Cabinet,wrapper/sleeve
43	Rail,shutter ,top channel
44	WCI 5304501895
45	WCI 5304496430
46	WCI 5304496427
47	Valve,drain
48	WCI 5304501896
49	5304476367 Frigidaire Air Conditioner Filter Drier
50	Seal kit,window ,foam strips
51	Hardware Kit,installation
52	Screw Kit,top rail mount
