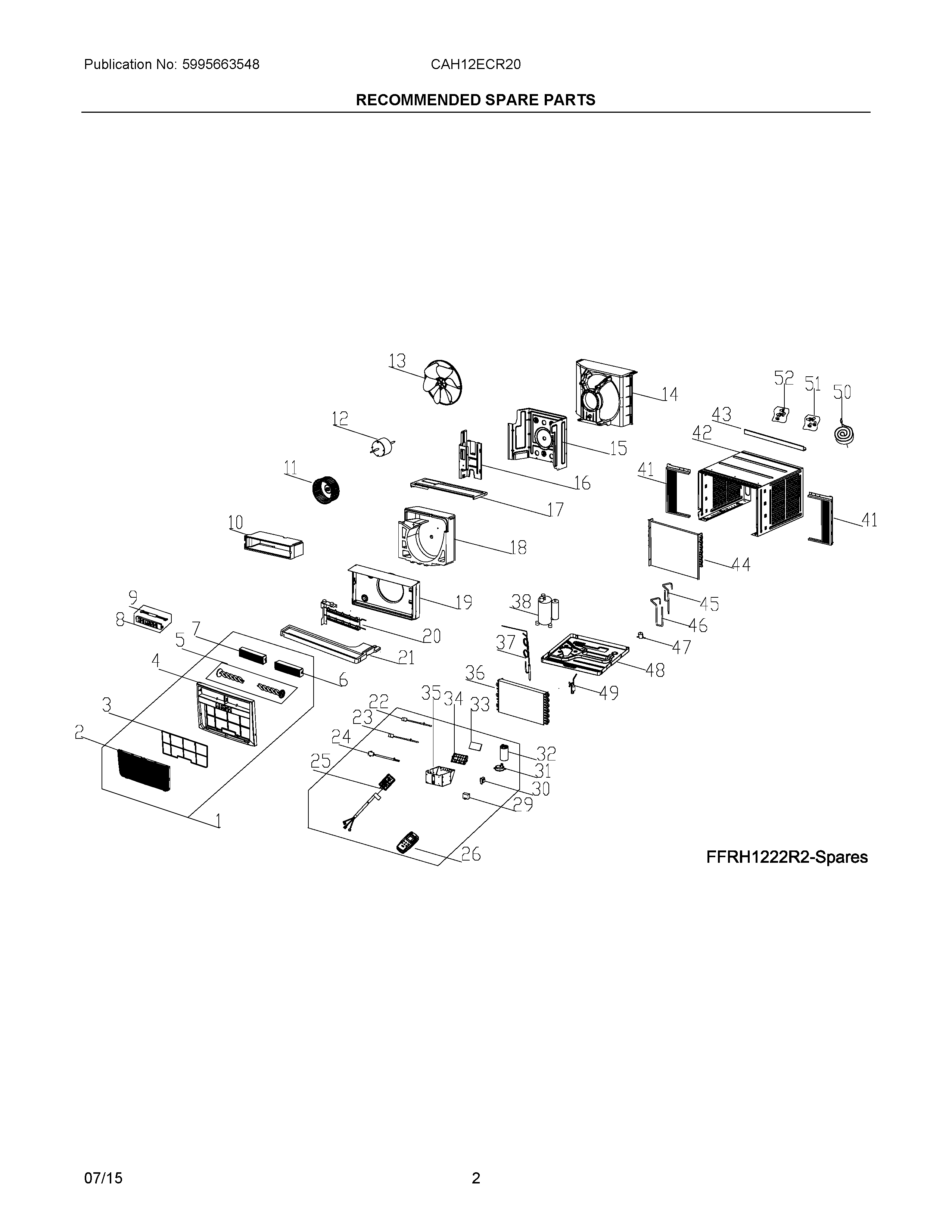

CAH12ECR20 02 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	Panel,front assy
2	Panel,front grill
3	5304535825 Frigidaire Air Filter
4	WCI 5304483567
5	Louver,vertical
6	Louver,horizontal ,right
7	Louver,horizontal ,left
8	PC Board,display/input
9	5304495009 Frigidaire Air Conditioner Wire
10	WCI 5304502002
11	5304476623 Frigidaire Blower Wheel
12	5304499948 Frigidaire Air Conditioner Motor
13	5304499949 Frigidaire Fan Blade
14	WCI 5304501062
15	WCI 5304501063
16	WCI 5304501064
17	WCI 5304501065
18	WCI 5304501066
19	WCI 5304501067
20	5304476390 Frigidaire Air Conditioner Heater Assembly
21	WCI 5304501068
22	SENSOR
23	5304512374 Frigidaire Air Conditioner Sensor
24	5304512375 Frigidaire Air Conditioner Sensor
25	5304500875 Frigidaire Air Conditioner Power Cord
26	Remote Control,transmitter
29	5304471077 Frigidaire Air Conditioner Capacitor
30	5304471063 Frigidaire Air Conditioner Transformer
31	WCI 5304501069
32	5304493239 Frigidaire Air Conditioner Capacitor
33	PC Board,main ,control/power
34	WCI 5304495029
35	WCI 5304501070
36	5304501071 Frigidaire Evaporator
37	5304501072 Frigidaire Tube
38	5304499947 Frigidaire Air Conditioner Compressor
41	Window Filler Kit,slider panels ,accordion
42	Cabinet,wrapper/sleeve
43	Rail,shutter ,top channel
44	5304501055 Frigidaire Condenser
45	WCI 5304501073
46	WCI 5304501074
47	Valve,drain
48	WCI 5304501896
49	5304476367 Frigidaire Air Conditioner Filter Drier
50	Seal kit,window ,foam strips
51	Hardware Kit,installation
52	Screw Kit,top rail mount
