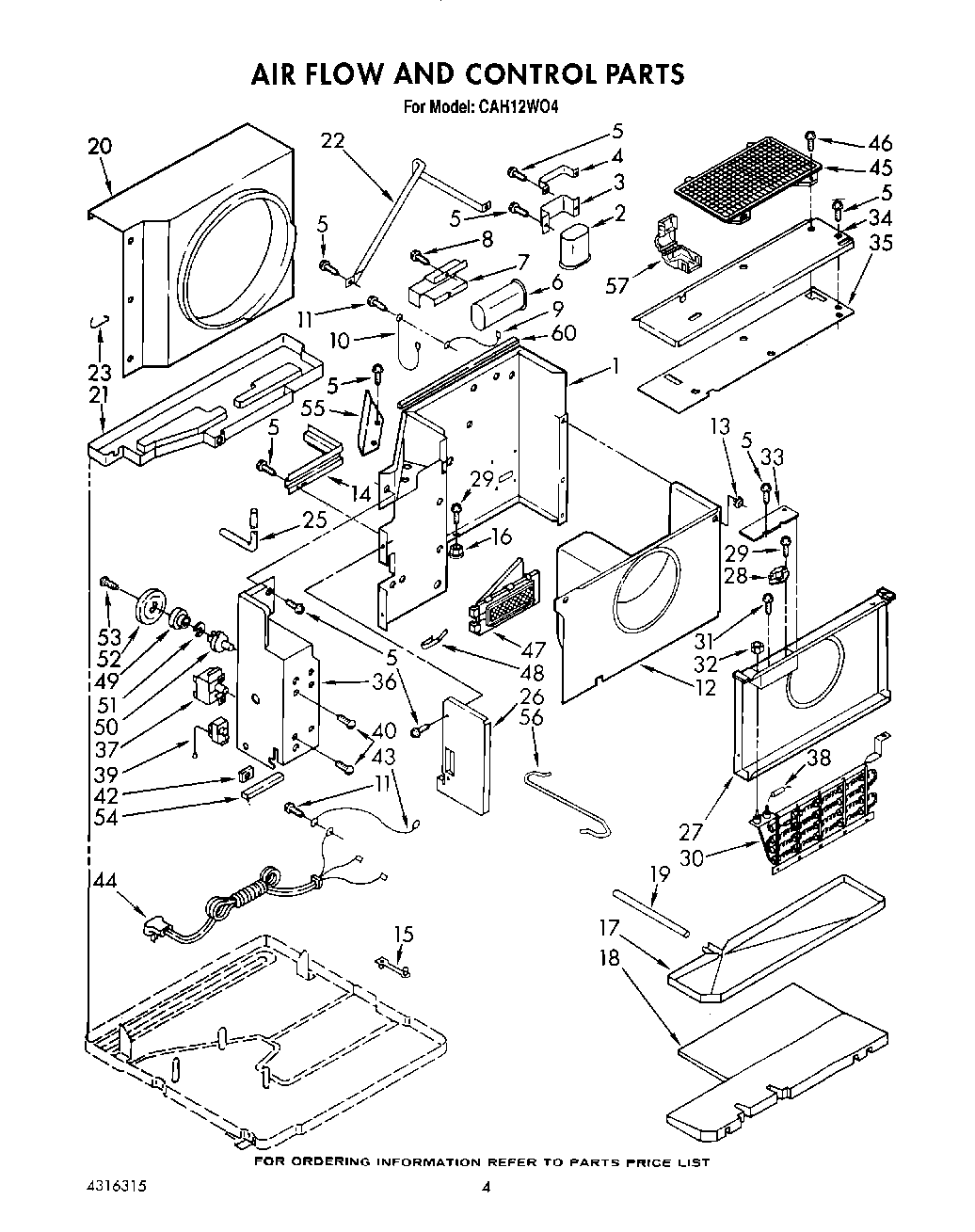

CAH12W04 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Wall, Dividing
2	Capacitor, Running
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	Capacitor, Fan
7	Bracket, Fan Motor Capacitor
9	Ground Wire
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Housing, Blower Wheel
13	Fastener, snap (2)
14	Channel, Wiring
15	Clamp, Cable
16	Clip, Speed
17	Pan, Evaporator Condensate
18	Insulation, Condensate Pan
19	Tube, Condensate
20	Shroud, Condenser
21	Pan, Condensate
22	Support, Unit
23	Clip, Shroud (3)
25	Sleeve, Insulator
26	Dividing Wall Assembly, L.S.
27	Deflector, Heat Assembly
28	Switch, Limit
29	Screw, 8 x 3/8
30	Heater, Air
31	WP488234 Whirlpool Air Conditioner Screw
32	WP488826 Whirlpool Nut
33	Cover, Wire Enclosure
34	Cover, Evaporator
35	Insulation, Evaporator Cover
36	Box, Control Assembly
37	Switch, Rotary
38	Fuse, Heater
39	Control, Temperature
40	Screw, 6-32 x .175
42	Grommet
43	Wire, Ground
44	Cable, Appliance
45	Guard, Evaporator Impeller
46	WP488729 Whirlpool Refrigerator Door Screw
47	Door, Exhaust
48	Spring, Door
49	Bushing, Shaft
50	Shaft, Control
51	Washer
52	Cam, Exhaust
53	Screw, 7-18 x 5/8
54	WP854334 Whirlpool Air Conditioner Sealing Strip
55	Guide, Wire
56	Wire, C
57	WPL 90515
