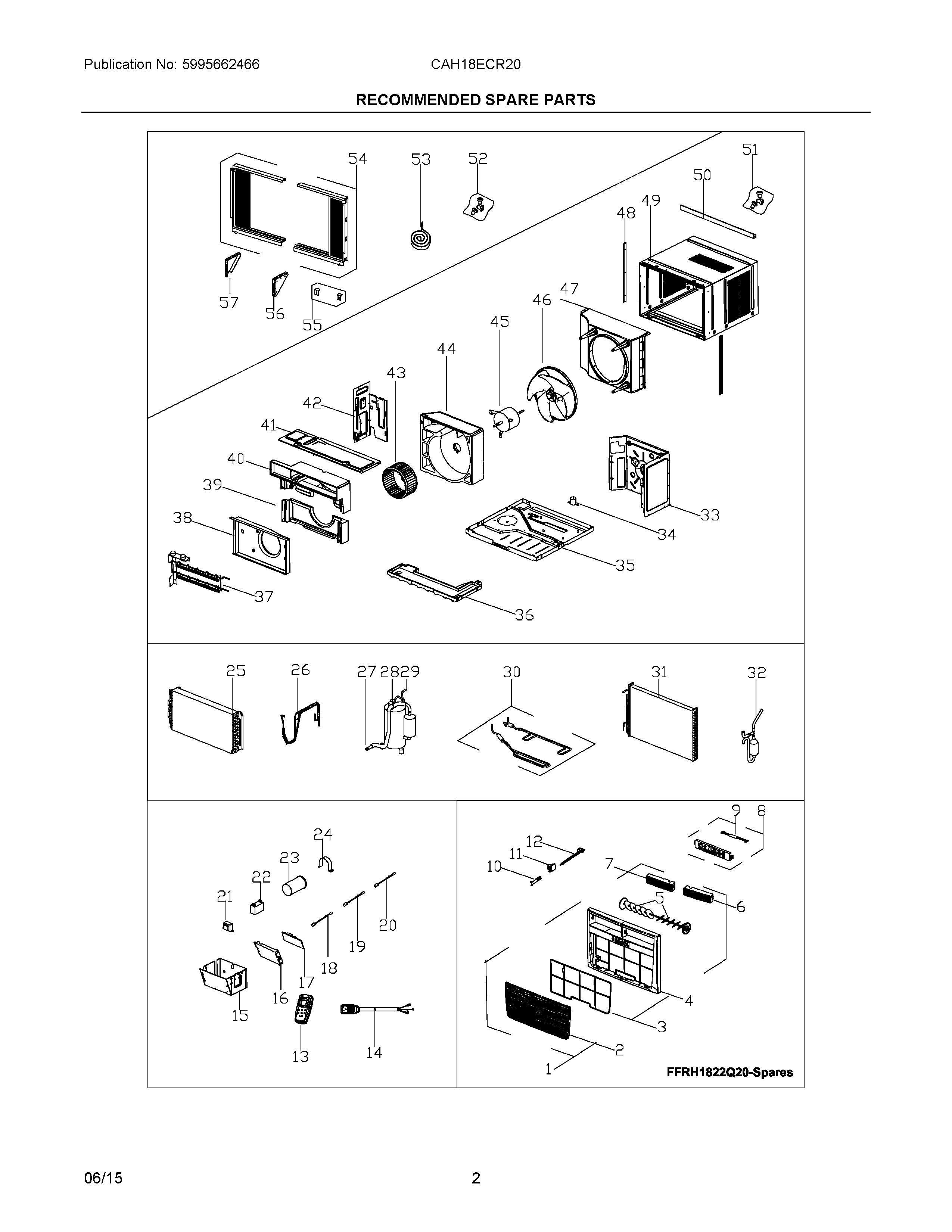

CAH18ECR20 02 – RECOMMENDED SPARE PARTS

CAH18ECR20 02 – RECOMMENDED SPARE PARTS

Written by

in

CAH18ECR20 02 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304483553
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4· Panel,frame ,front
5· Louver,vertical
6· Louver,horizontal ,right
7· Louver,horizontal ,left
8PC Board,display/input
95304495009 Frigidaire Air Conditioner Wire
105304495010 Frigidaire Air Conditioner Handle
115304476359 Frigidaire Air Conditioner Link Assembly
12Door,vent control ,with lever
13Remote Control,transmitter
145304500901 Frigidaire Air Conditioner Power Cord
155304495623 Frigidaire Box Control
16WCI 5304495029
175304496321 Frigidaire Air Conditioner PC Board
185304504724 Frigidaire Sensor
195304512375 Frigidaire Air Conditioner Sensor
20SENSOR
215304471063 Frigidaire Air Conditioner Transformer
225304482883 Frigidaire Air Conditioner Capacitor
235304499940 Frigidaire Air Conditioner Capacitor
24WCI 5304500876
255304500890 Frigidaire Air Conditioner Evaporator
265304500891 Frigidaire Air Conditioner Tube
275304495654 Frigidaire Air Conditioner Tube
285304499938 Frigidaire Air Conditioner Compressor
295304500892 Frigidaire Air Conditioner Tube
305304495628 Frigidaire Air Conditioner Tube
315304500893 Frigidaire Air Conditioner Condenser
325304476257 Frigidaire Air Conditioner Filter Drier
33WCI 5304495630
34Valve,drain
35Base,unit chassis
36Tray,drip pan
375304529410 Frigidaire Heater
38WCI 5304495739
39WCI 5304495740
405304496322 Frigidaire Scroll
415304495632 Frigidaire Cover
42WCI 5304495633
435304529414 Frigidaire Blower-Fan
44Scroll,blower housing ,rear
455304483059 Frigidaire Air Conditioner Motor
46BLADE-FAN
475304495634 Frigidaire Air Conditioner Shroud
48Retainer,shutter ,cabinet sides
49Cabinet,wrapper/sleeve
50Rail,shutter track ,top angle
51Screw Kit,top rail mount
52Hardware,mounting ,screws/locks
53Seal kit,foam ,sash & rails
54Window Filler Kit,slider panel
55Bracket,sill angle
56Bracket,mounting ,right window
57Bracket,mounting ,left window
