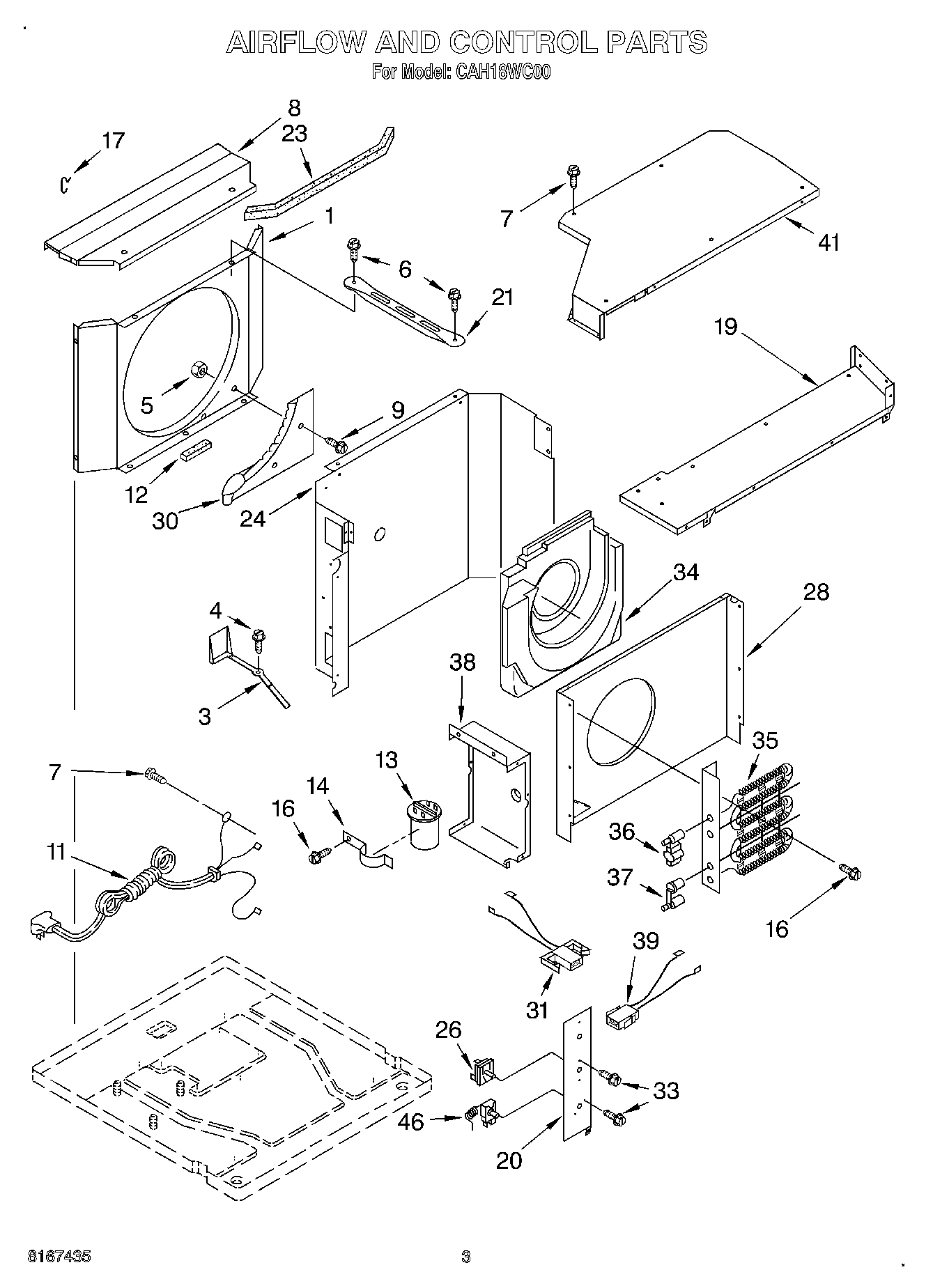

CAH18WC00 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
3	Door, Exhaust
4	Screw, 8-18 x .437
5	WP488130 Whirlpool Air Conditioner Nut
6	WP308685 Whirlpool Microwave Screw
8	Top, Condenser
9	Screw, 8 x 3/8
11	Cord, Appliance
12	Seal, Condensate Cup
13	Capacitor, Running
14	Bracket, Capacitor
16	WP489069 Whirlpool Compactor Screw
17	Clip, Shroud (2)
19	Top, Evaporator Shroud
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
26	Switch Rotary
28	Shroud Assembly, Evaporator
30	Cup, Condensate
31	Wire Harness, Heater
33	Screw, 6-32 x .175
34	Housing, Air
35	Element, Heating
36	Switch, Limit
37	Fuse, Link
38	Control Box (R.S.)
39	Harness, Heater
41	Cover, Top
46	Control, Temperature
