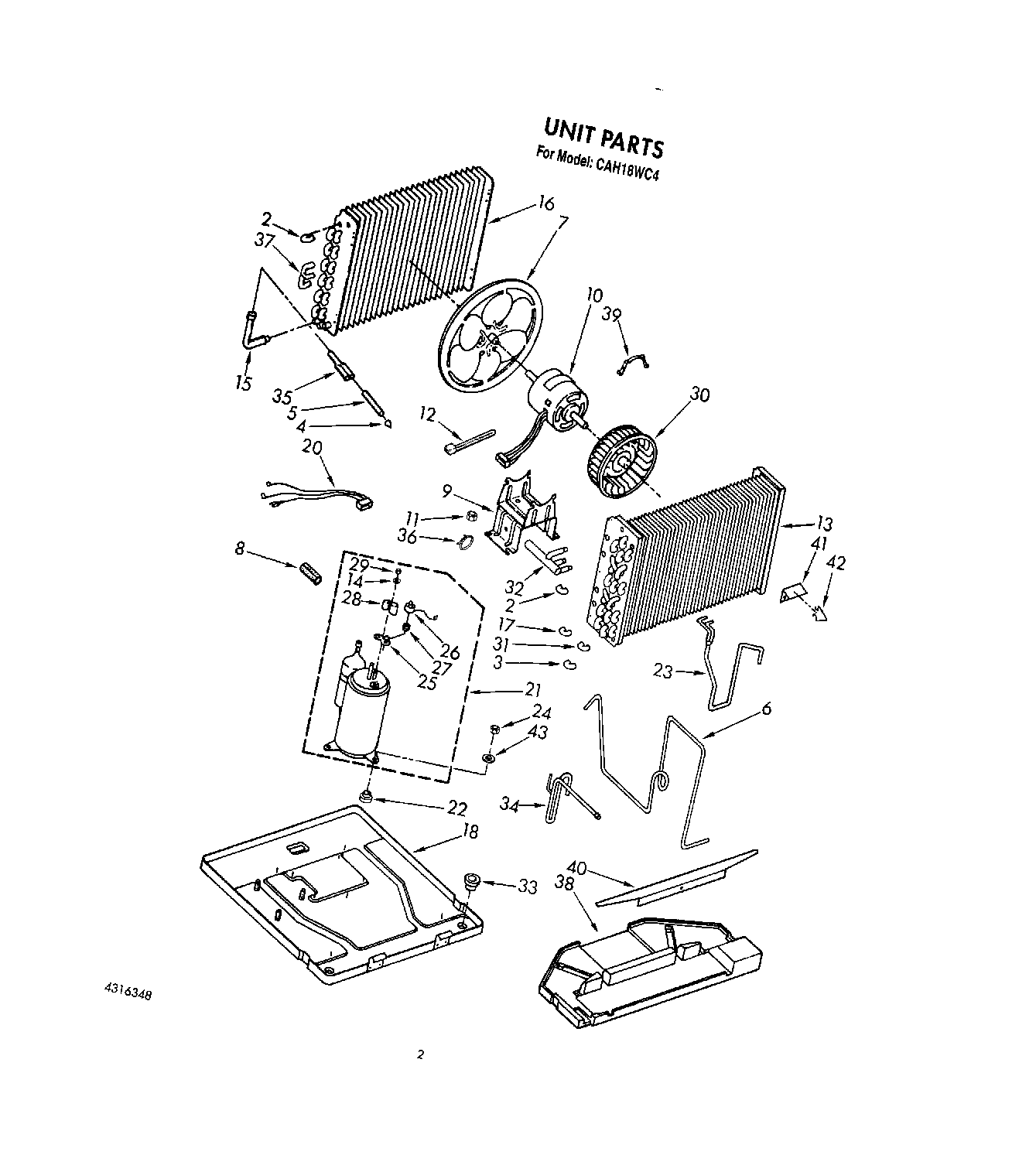

CAH18WC4 02 – UNIT, LIT/OPTIONAL

Products

Position	Product
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (3)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Connecting
16	Condenser
17	Tube, Riser (2)
18	Base
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Discharge Tube Assembly
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
31	Return Bend (2)
32	Manifold, Suction
33	Cup, Condensate Drain
34	Suction Tube Assembly
35	Tube, Flow Divider
36	Clamp (2)
37	Bend, Return (3-Way)
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Cover, Pan
41	Anticipator
42	Clip, Anticipator
43	Buy Guide
43	Tech Sheet
43	W11236646 Whirlpool Washer Assembly
43	Instructions, Installation
43	Use & Care Guide
43	Literature Parts (List, Repair Parts)
