CAH18WC4 04 – CABINET

CAH18WC4 04 – CABINET

Written by

in

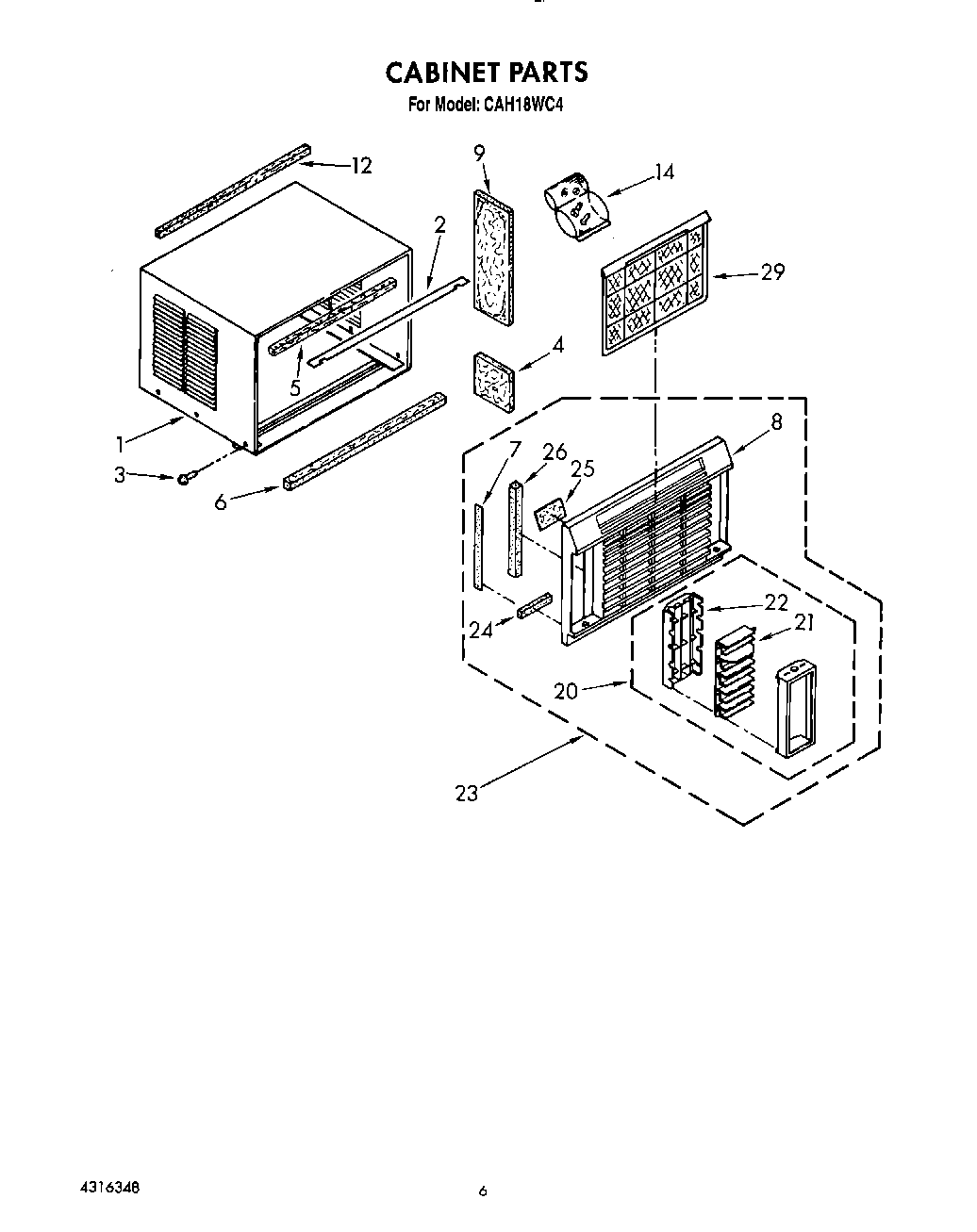

CAH18WC4 04 – CABINET

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Seal, Top
6Seal
7Seal (2)
8Cabinet Front
9Insulation, Cabinet Side (2)
12Seal
14Bag, Accessory
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal (Right Side)
24Seal (Left Side)
25Seal (Right Side)
25Seal (Left Side)
26WP854334 Whirlpool Air Conditioner Sealing Strip
29Filter
