CAH18WC41 01 – UNIT, LITERATURE

Products

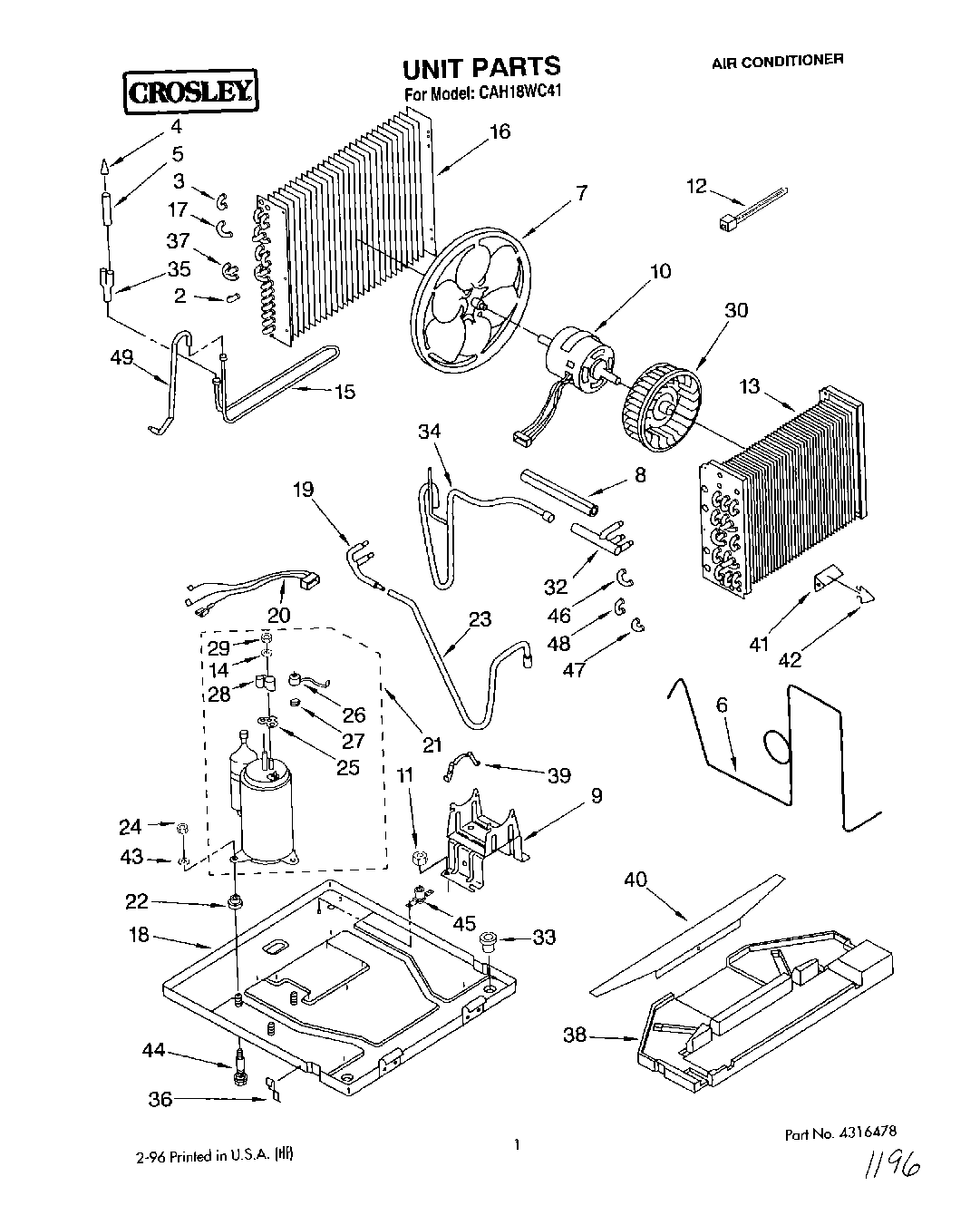

Position	Product
	Instructions, Installation
	Wiring Diagram
	Use & Care Guide
	Tech Sheet
2	Bend, Return Condenser (10)
3	Bend, Return Condenser (4)
4	Strainer
5	Tube, Outlet (Includes Illus. 4)
6	Tube, Restrictor (3)
7	Blade, Fan (Condenser)
8	Seal, Suction Tube
9	Bracket, Fan Motor
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	WPW10339879 Whirlpool Wire Tie
13	Evaporator
14	Gasket, Nut
15	Tube, Wet Loop
16	Condenser
17	Bend, Return Condenser (1)
18	Base
19	Manifold, Discharge
20	Harness, Wiring (Compressor Service)
21	Compressor
22	WP950021 Whirlpool Grommet
23	Tube, Discharge
24	Locknut (3)
25	WP950035 Whirlpool Cover Gasket
26	WP1161170 Whirlpool Air Conditioner Overload
27	Spring, Overload
28	WP950036 Whirlpool Cover Assembly
29	WP950027 Whirlpool Mounting Nut
30	Wheel, Blower (Evaporator)
32	Manifold, Suction
33	Cup, Condensate Drain
34	Suction Tube Assembly
35	Tube, Flow Divider
36	Clamp (2)
37	Bend, Return (3-Way)
38	Pan, Drain
39	WPY015825 Whirlpool Motor Clip
40	Cover, Pan
41	Anticipator
42	Clip, Anticipator
43	W11236646 Whirlpool Washer Assembly
44	Bolt, Compressor
45	Valve, Condensate
46	Bend, Return Evaporator (4)
47	Bend, Return Evaporator (4)
48	Bend, Return Evaporator (11)
49	Tube, Wet Loop Connect
