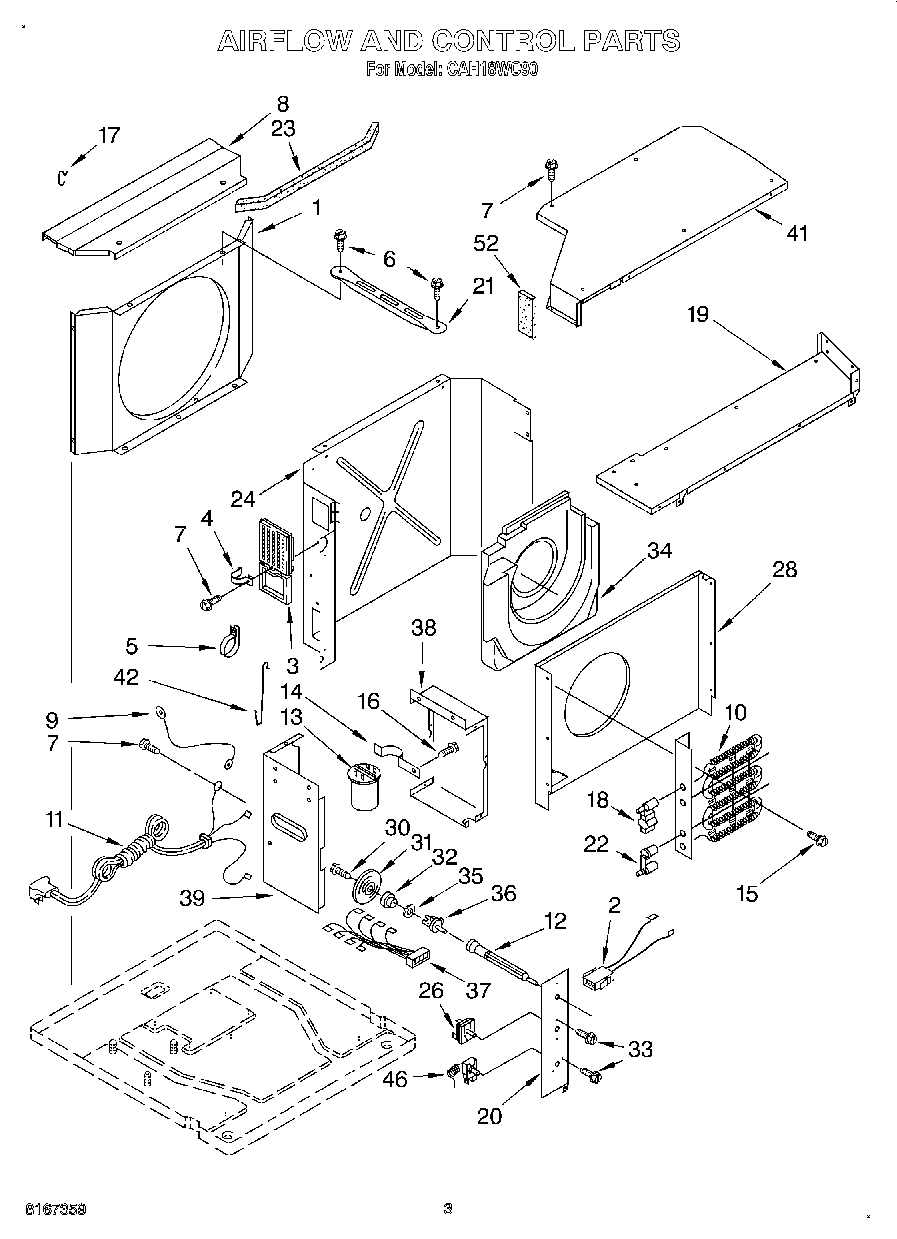

CAH18WC90 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Harness, Heater
3	Door, Air (2)
4	Spring, Door (2)
5	Clamp, Wiring
6	WP308685 Whirlpool Microwave Screw
8	Top, Condenser
9	Wire, Ground
10	Element, Heating
11	Cord, Appliance
12	Control, Shaft
13	Capacitor, Running
14	Bracket, Capacitor
15	WP489069 Whirlpool Compactor Screw
16	WP488787 Whirlpool Refrigerator Screw
17	Clip, Shroud (2)
18	Limit, Switch
19	Evap. Shroud Top
20	Panel, Control
21	Support, Unit (2)
22	Link, Fuse
23	Seal, Shroud
24	Dividing Wall
26	Switch Rotary
28	Shroud Assembly, Evaporator
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Housing, Air
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring (Control Box)
38	Control Box (R.S.)
39	Control Box (L.S.)
41	Cover, Top
42	Wire, Control Exhaust
46	Control, Temperature
52	Seal, Anti-Rub
