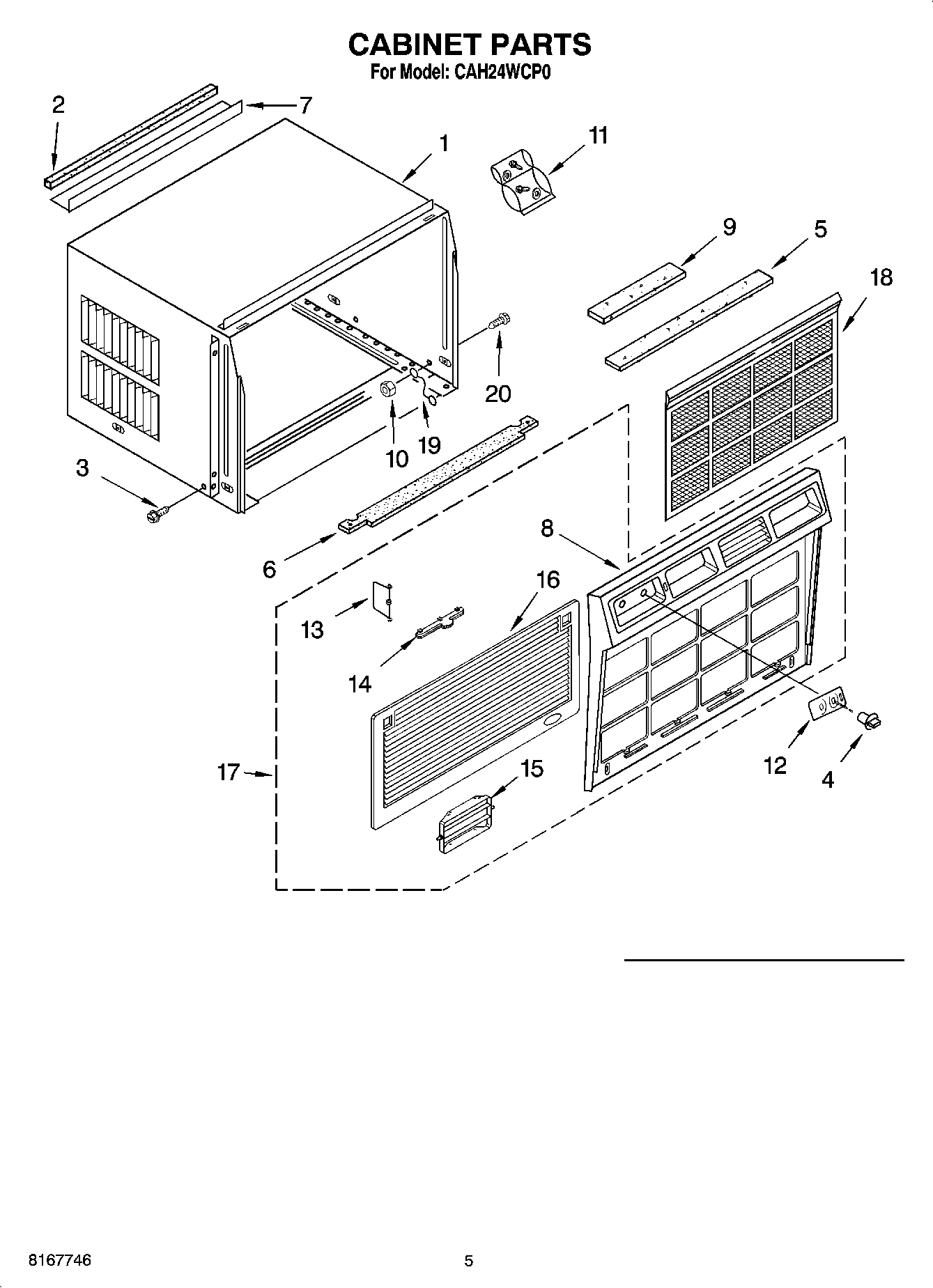

CAH24WCP0 03 – CABINET PARTS

Products

PositionProduct
1Cabinet
2Gasket, Meeting Rail
3WP489069 Whirlpool Compactor Screw
4WP8031121 Whirlpool Air Conditioner Control Knob
5Seal, Front Large
6Seal
7Angle (Top)
8Frame, Front
9Seal
10WP486255 Whirlpool Air Conditioner Nut
11Bag, Accessory
12ESCUTCHEON
13Louver, Verticle
14Link, Verticle Louver (2)
15Cartridge
16Door, Filter
17Front, Complete
18Filter
19Wire, Ground
20WP488234 Whirlpool Air Conditioner Screw
