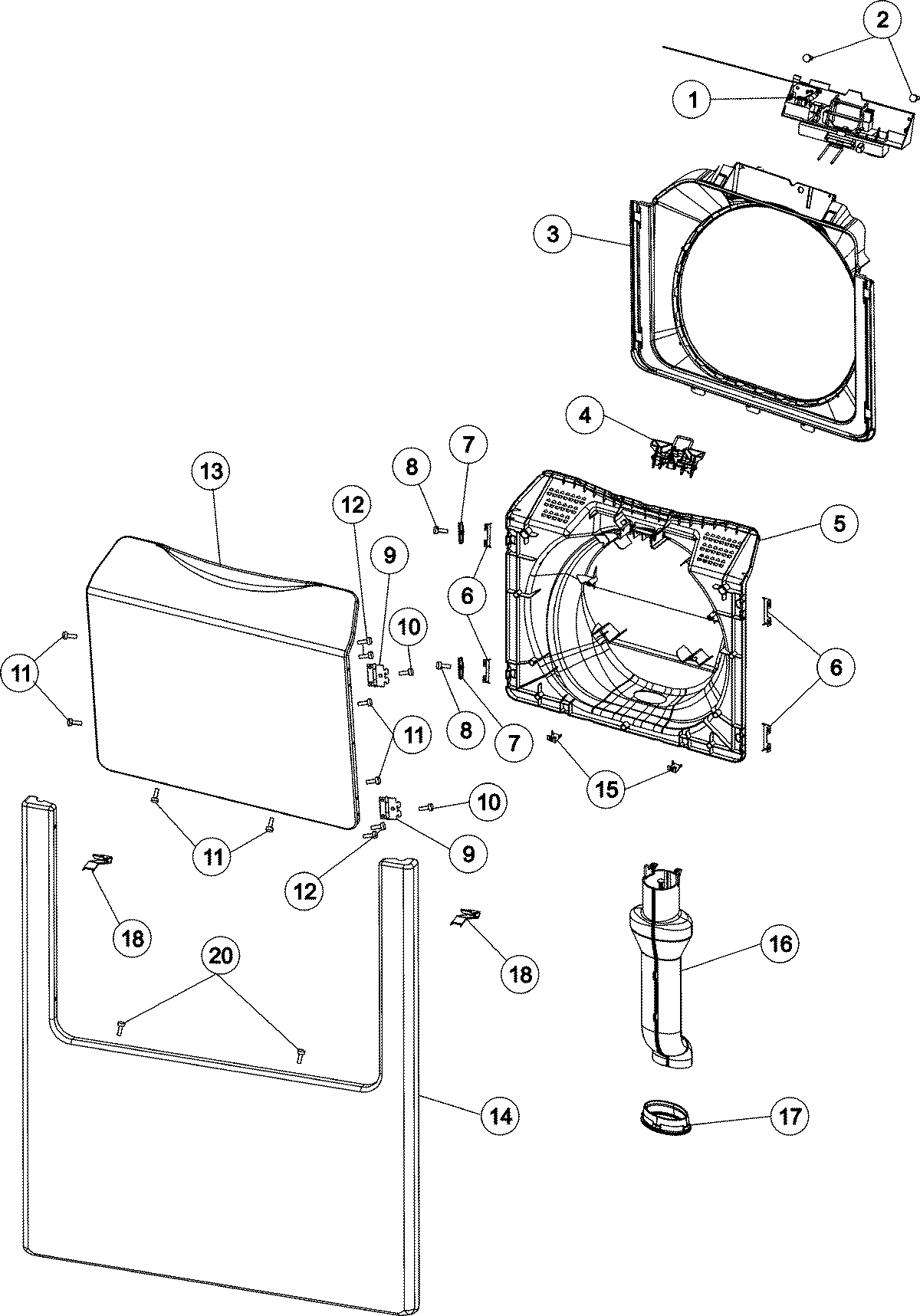

CAH4205AWJ 04 – FRONT PANEL, DOOR & SHROUD

CAH4205AWJ 04 – FRONT PANEL, DOOR & SHROUD

Written by

in

CAH4205AWJ 04 – FRONT PANEL, DOOR & SHROUD

Products

PositionProduct
1WP22004435 Whirlpool Latch Assembly
2W11573574 Whirlpool Screw
3MAY 22003516
4WP22003269 Whirlpool Door Lock Assembly
6MAY 22002038
7WP33001764 Whirlpool Cover
8WP33001787 Whirlpool Screw
9WP22002798 Whirlpool Door Hinge
10WP22002012 Whirlpool Screw Assembly
11SCREW
12WP98006631 Whirlpool Screw
13MAY 22004497
14MAY 22004496
15MAY 22002039
16MAY 22003850
17WP22003075 Whirlpool Grommet
18MAY 22002244
