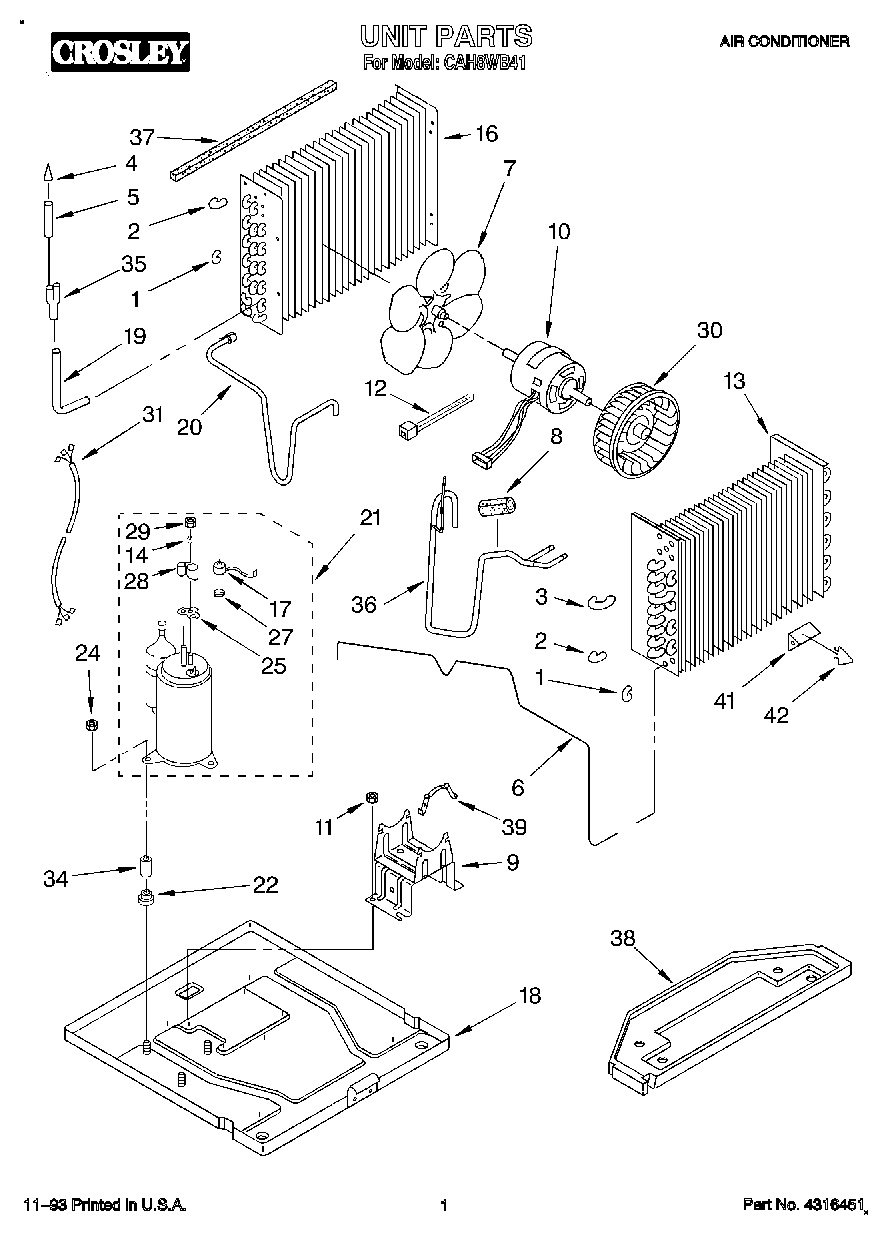

CAH8WB41 01 – UNIT, LITERATUREadmin2025-04-26T12:09:08+00:00CAH8WB41 01 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| Tech Sheet |
| Wiring Diagram |
| Use & Care Guide |
| Instructions, Installation |
| 1 | Bend, Return Condenser (4) |
| 2 | Bend, Return Condenser (10) |
| 3 | Tube, Riser (2) |
| 4 | Strainer |
| 5 | Tube, Outlet (Includes No. 26) |
| 6 | Tube, Restrictor |
| 7 | Blade, Fan (Condenser) |
| 8 | Insulation, Suction Tube |
| 9 | Bracket, Fan Motor |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | WPW10339879 Whirlpool Wire Tie |
| 13 | Evaporator |
| 14 | Gasket, Nut |
| 16 | Condenser |
| 17 | WP1161170 Whirlpool Air Conditioner Overload |
| 18 | Base |
| 19 | Tube, Connecting |
| 20 | Tube, Discharge |
| 21 | 4317916 Whirlpool Air Conditioner Compressor |
| 22 | Grommet |
| 24 | Locknut (3) |
| 25 | WP950035 Whirlpool Cover Gasket |
| 27 | Spring, Overload |
| 28 | WP950036 Whirlpool Cover Assembly |
| 29 | WP950027 Whirlpool Mounting Nut |
| 30 | Wheel, Blower (Evaporator) |
| 31 | Harness, Compressor |
| 34 | Sleeve, Compressor (3) |
| 35 | Tube, Flow Divider |
| 36 | Tube, Suction Asy |
| 37 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 37 | Seal, Condenser Bottom |
| 38 | Pan, Drain |
| 39 | WPY015825 Whirlpool Motor Clip |
| 41 | Anticipator |
| 42 | Clip, Anticipator |
