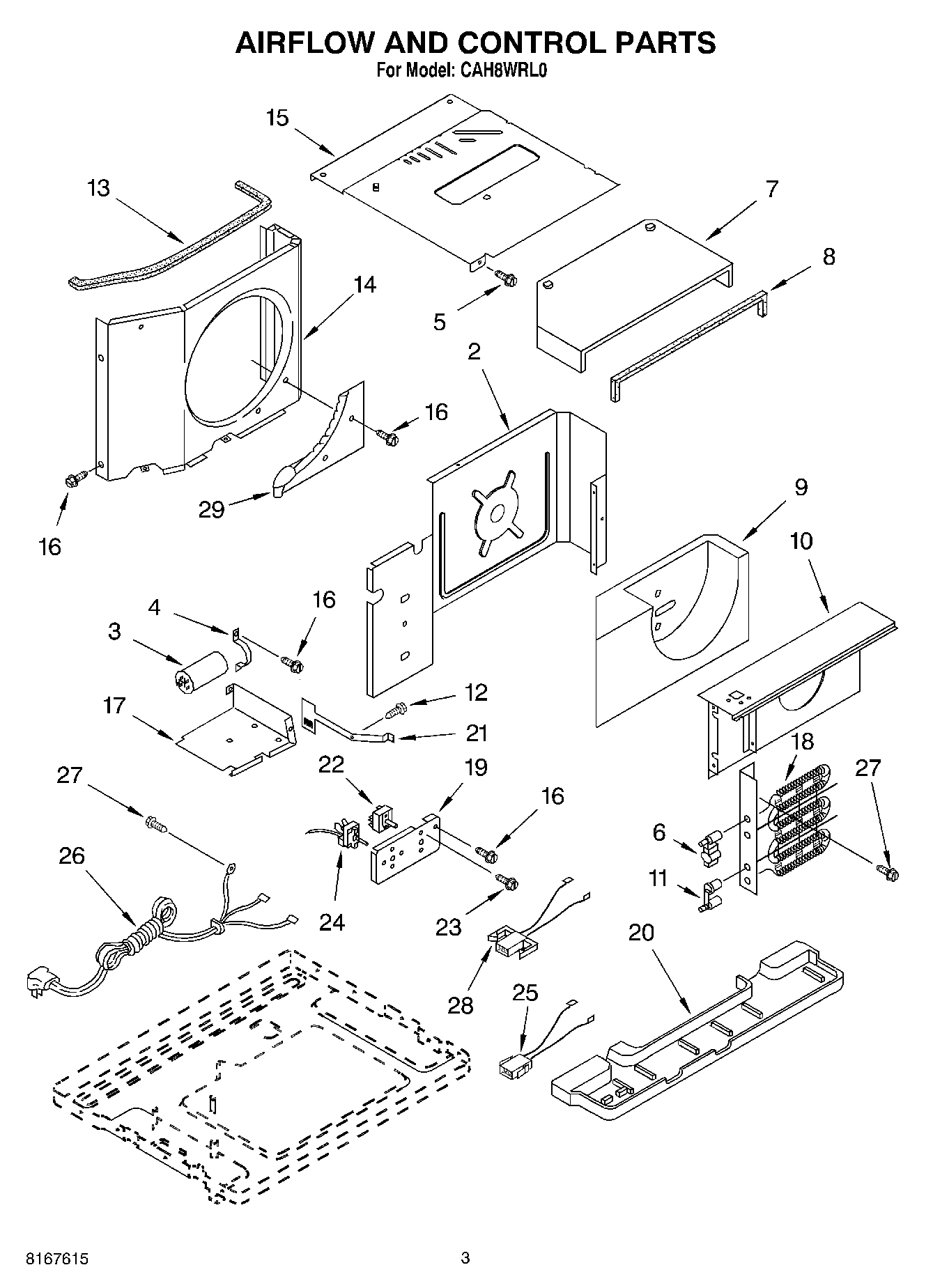

CAH8WRL0 02 – AIR FLOW AND CONTROLadmin2025-04-26T10:58:51+00:00CAH8WRL0 02 – AIR FLOW AND CONTROL
Products
| Position | Product |
|---|
| 2 | Wall, Dividing |
| 3 | Capacitor, Running |
| 4 | Bracket, Capacitor |
| 5 | Screw, 8-18 x 3/8 |
| 6 | Limit Switch |
| 7 | Hood, Air Housing |
| 8 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 9 | Housing, Air |
| 10 | Shroud, Evaporator |
| 11 | Link, Fuse |
| 12 | Screw, 8-18 x .437 |
| 13 | Seal, Condenser Shroud |
| 14 | Shroud, Condenser |
| 15 | Cover, Unit |
| 16 | Screw, 8 x 3/8 |
| 17 | Box, Control |
| 18 | Element, Heating |
| 19 | Panel, Control |
| 20 | Pan, Drain |
| 21 | Door, Exhaust |
| 22 | Switch, Rotary |
| 23 | Screw, 6-32 x .175 |
| 24 | Thermostat |
| 25 | Harness, Heater Plug |
| 26 | Cable, Appliance |
| 27 | Screw 8-18 x .295 |
| 28 | Heater, Harness Receptacle |
| 29 | Cup, Condensate |
