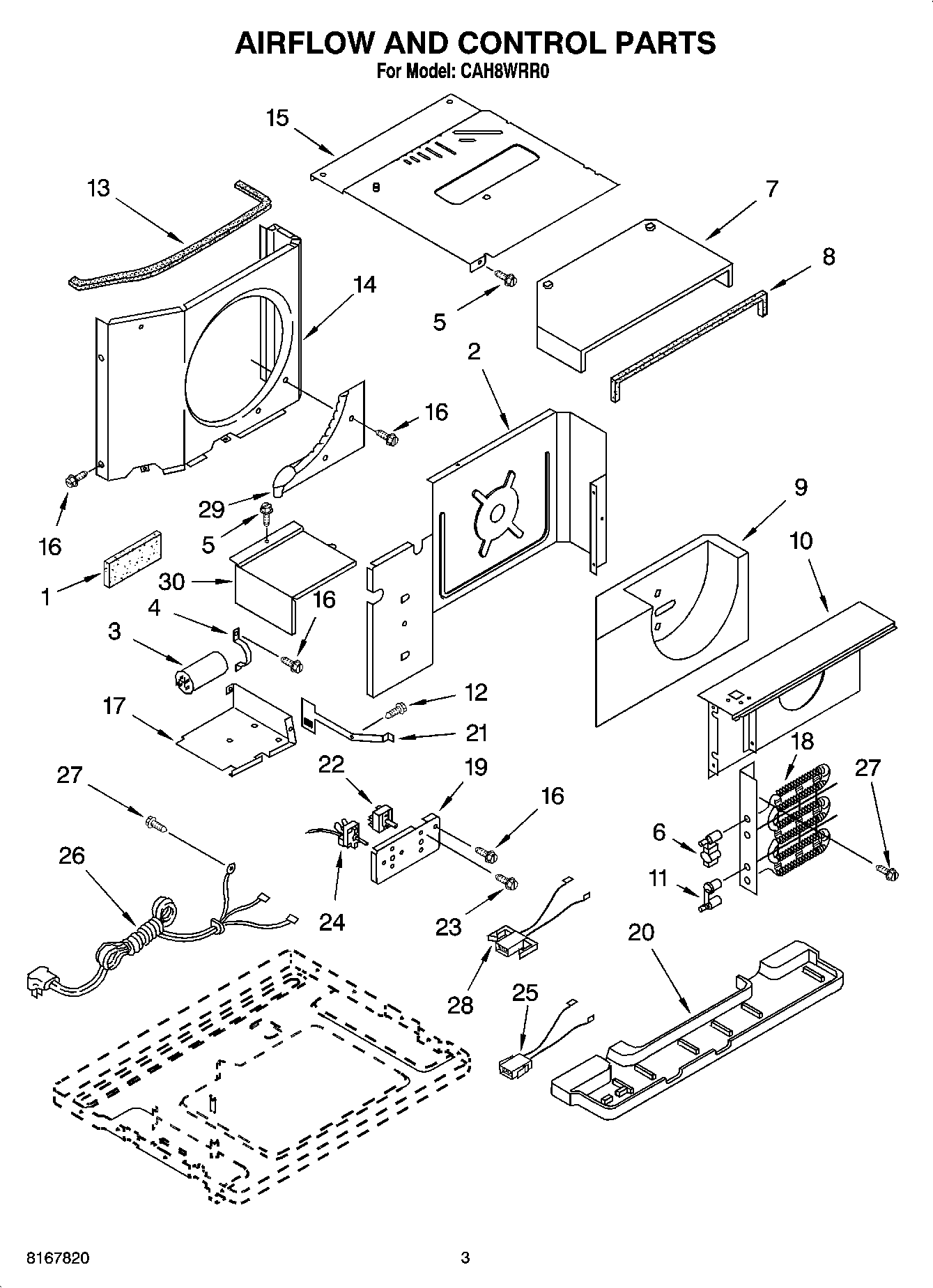

CAH8WRR0 02 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Seal
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
5	WP3196557 Whirlpool Screw
6	Limit Switch
7	Hood, Air Housing
8	WP854334 Whirlpool Air Conditioner Sealing Strip
9	Housing, Air
10	Shroud, Evaporator
11	Link, Fuse
12	Screw, 8-18 x .437
13	Seal, Condenser Shroud
14	Shroud, Condenser
15	Cover, Unit
16	Screw, 8 x 3/8
17	Box, Control
18	Element, Heating
19	Panel, Control
20	Pan, Drain
21	Door, Exhaust
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Thermostat
25	Harness, Heater Plug
26	Cable, Appliance
27	Screw 8-18 x .295
28	Heater, Harness Receptacle
29	Cup, Condensate
30	Cover, Control Box
