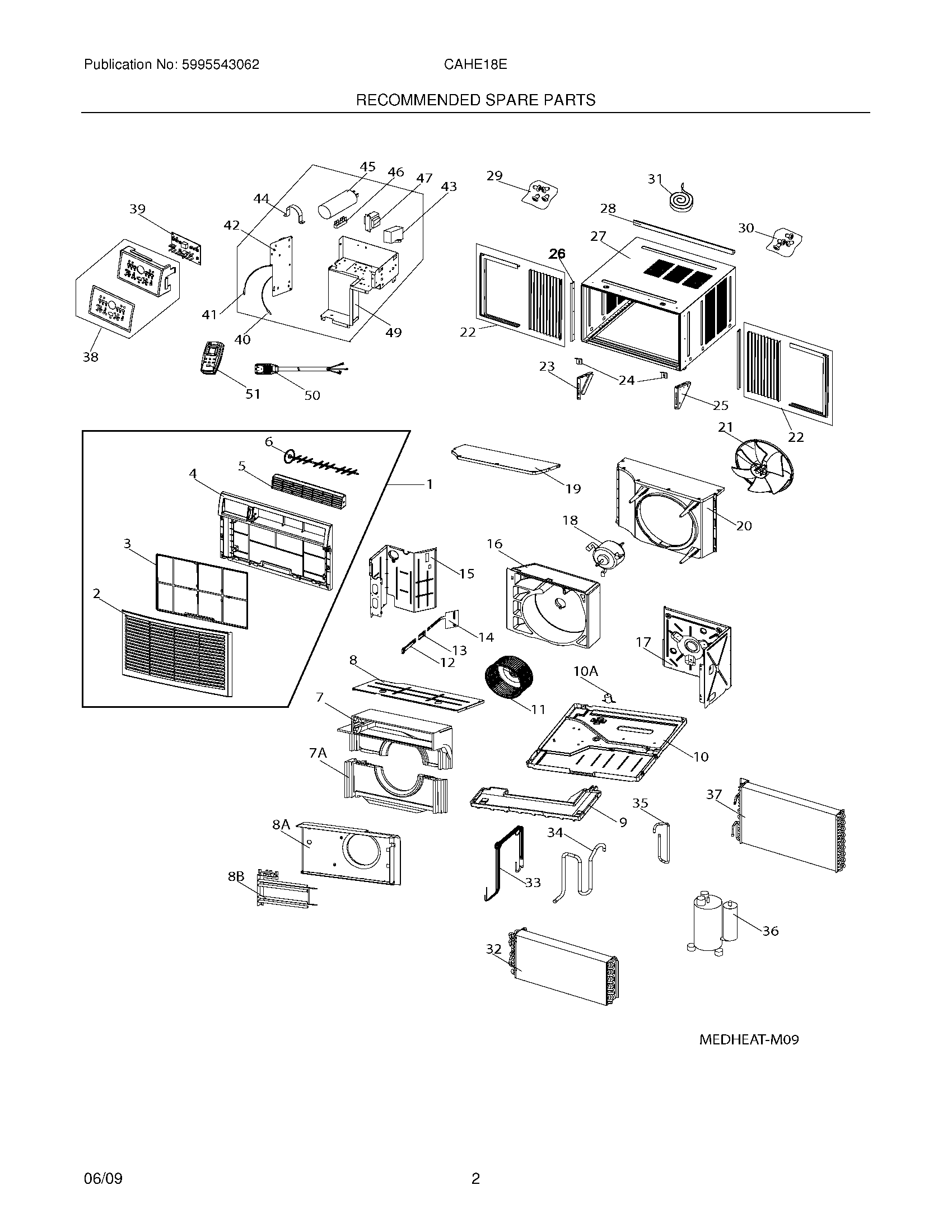

CAHE18ERA 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304472651
2	WCI 5304472523
3	WCI 5304472524
4	WCI 5304472652
5	WCI 5304472526
6	WCI 5304472527
7	WCI 5304472637
7A	WCI 5304472636
8B	5304529410 Frigidaire Heater
8A	WCI 5304472622
8	WCI 5304472529
9	Tray,drip pan
10A	WCI 5304472345
10	WCI 5304472638
11	5304529414 Frigidaire Blower-Fan
12	WCI 5304472533
13	WCI 5304472534
14	DOOR,VENT CONTROL,W/LEVER,vent control ,with lever
15	WCI 5304472536
16	WCI 5304472639
17	WCI 5304472538
18	5304483059 Frigidaire Air Conditioner Motor
19	WCI 5304472540
20	WCI 5304472541
21	BLADE-FAN
22	WCI 5304472542
23	WCI 5304472358
24	Bracket,sill angle
25	WCI 5304472359
26	WCI 5304472543
27	WCI 5304472544
28	WCI 5304472545
29	Screw Kit,top rail mount
30	WCI 5304472547
31	WCI 5304472548
32	WCI 5304472602
33	WCI 5304472603
34	WCI 5304472604
35	WCI 5304472605
36	WCI 5304472606
37	WCI 5304472607
38	WCI 5304472653
39	WCI 5304472641
40	5304512375 Frigidaire Air Conditioner Sensor
41	Sensor,temperature ,ambient
42	WCI 5304472642
43	5304472609 Frigidaire Air Conditioner Capacitor
44	WCI 5304472610
45	WCI 5304472611
46	WCI 5304472401
47	5304471063 Frigidaire Air Conditioner Transformer
49	WCI 5304472560
50	WCI 5304472403
51	WCI 5304471314
