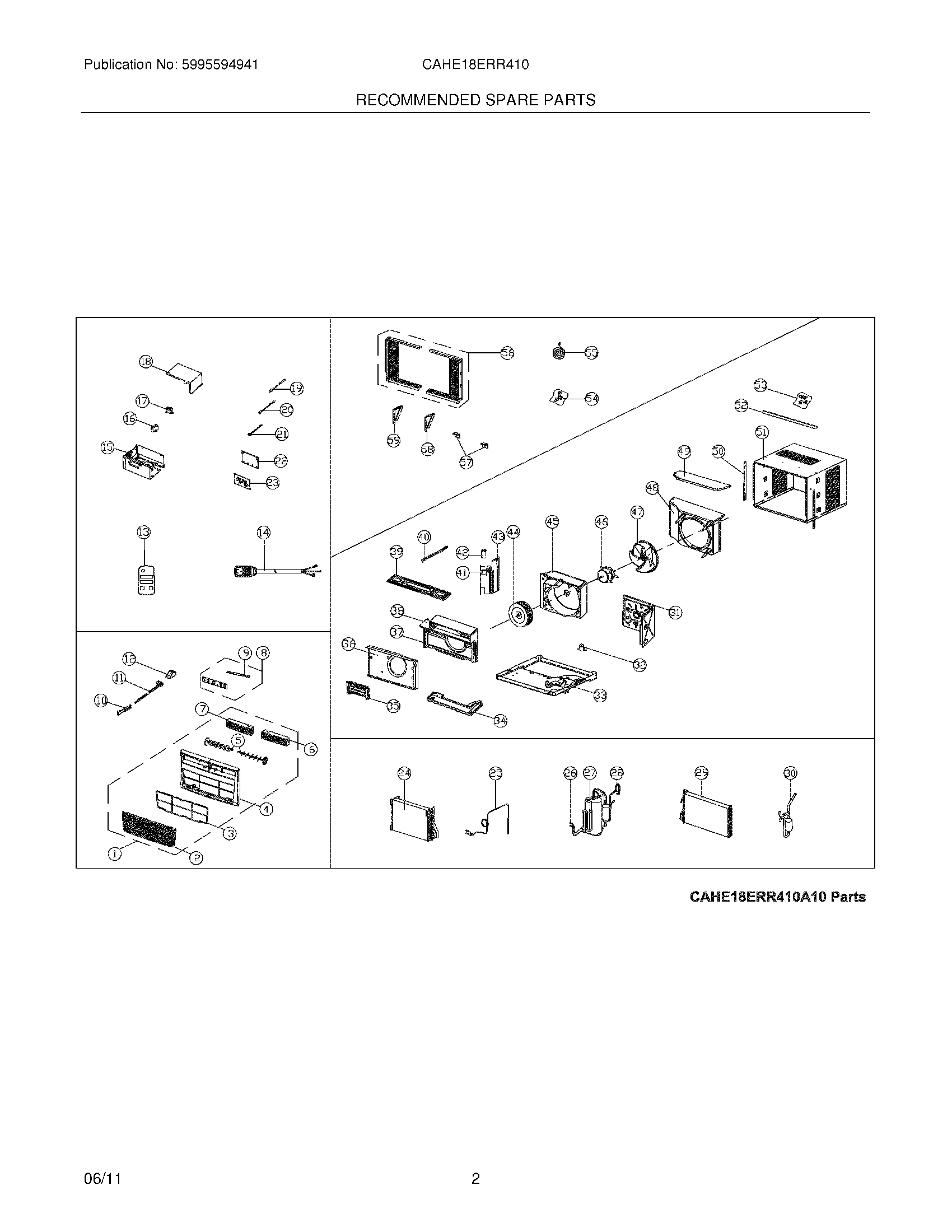

CAHE18ERR410A13 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1WCI 5304483558
2Panel,front grille ,tilt-out
35304525598 Frigidaire Air Conditioner Filter
4· Panel,frame ,front
5· Louver,vertical
6· Louver,horizontal ,right
7· Louver,horizontal ,left
8WCI 5304482936
9Wire,connector ,pc boards
10Handle,vent control
11Door,vent control ,with lever
125304476359 Frigidaire Air Conditioner Link Assembly
13Remote Control,transmitter
145304476312 Frigidaire Air Conditioner Power Cord
15WCI 5304476361
165304482883 Frigidaire Air Conditioner Capacitor
175304471063 Frigidaire Air Conditioner Transformer
18WCI 5304476314
19Sensor,temperature ,ambient
20SENSOR
215304512375 Frigidaire Air Conditioner Sensor
22WCI 5304476251
23WCI 5304483065
24WCI 5304483058
25WCI 5304476318
26Tube,suction
275304475735 Frigidaire Air Conditioner Compressor
28WCI 5304476320
29WCI 5304476321
305304476322 Frigidaire Air Conditioner Filter Drier
31WCI 5304472538
32Valve,drain
33Base,unit chassis
34Tray,drip pan
355304529410 Frigidaire Heater
36WCI 5304476325
37WCI 5304483066
38WCI 5304483067
39WCI 5304476326
40WCI 5304476327
41Strap,capacitor clamp
42WCI 5304475736
43Bulkhead,partition ,front/left
445304529414 Frigidaire Blower-Fan
45Scroll,blower housing ,rear
465304483059 Frigidaire Air Conditioner Motor
47BLADE-FAN
48WCI 5304476329
49WCI 5304476330
50Retainer,shutter ,cabinet sides
51WCI 5304482516
52Rail,shutter track ,top angle
53Screw Kit,top rail mount
54WCI 5304472548
55Hardware,mounting ,screws/locks
56Window Filler Kit,slider panel
57Bracket,sill angle
58Bracket,mounting ,right window
59Bracket,mounting ,left window
