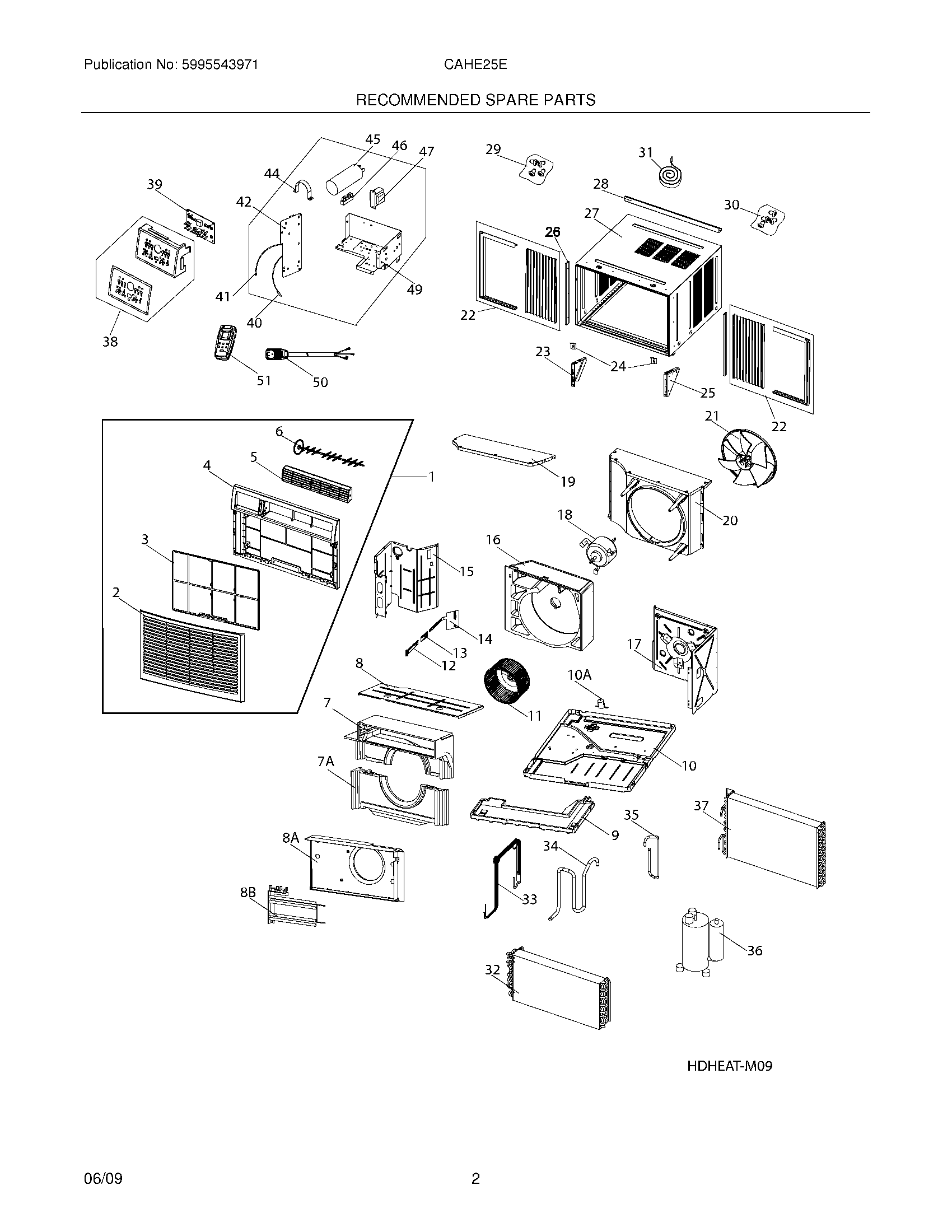

CAHE25ERA 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	WCI 5304472318
2	WCI 5304472319
3	WCI 5304472320
4	WCI 5304472335
5	WCI 5304472336
6	WCI 5304472337
7A	WCI 5304472340
7	WCI 5304472341
8	WCI 5304472352
8B	5304529410 Frigidaire Heater
8A	WCI 5304472339
9	Tray,drip pan ,foam
10	WCI 5304472344
10A	WCI 5304472345
11	5304529414 Frigidaire Blower-Fan
12	WCI 5304472347
13	WCI 5304472348
14	WCI 5304472349
15	WCI 5304472350
16	WCI 5304472342
17	WCI 5304472351
18	WCI 5304472353
19	WCI 5304472354
20	WCI 5304472355
21	BLADE-FAN
22	WCI 5304472357
23	WCI 5304472358
24	Bracket,sill angle
25	WCI 5304472359
26	WCI 5304472361
27	WCI 5304472362
28	WCI 5304472363
29	Screw Kit,top rail mount
30	WCI 5304472365
31	Seal kit,foam ,sash & rails
32	WCI 5304472390
33	WCI 5304472391
34	WCI 5304472392
35	WCI 5304472393
36	WCI 5304472394
37	WCI 5304472395
38	WCI 5304472404
39	WCI 5304472397
40	5304512375 Frigidaire Air Conditioner Sensor
41	Sensor,temperature ,ambient
42	WCI 5304472398
44	Strap,capacitor clamp
45	WCI 5304472400
46	WCI 5304472401
47	5304471063 Frigidaire Air Conditioner Transformer
49	WCI 5304472402
50	WCI 5304472403
51	WCI 5304471314
