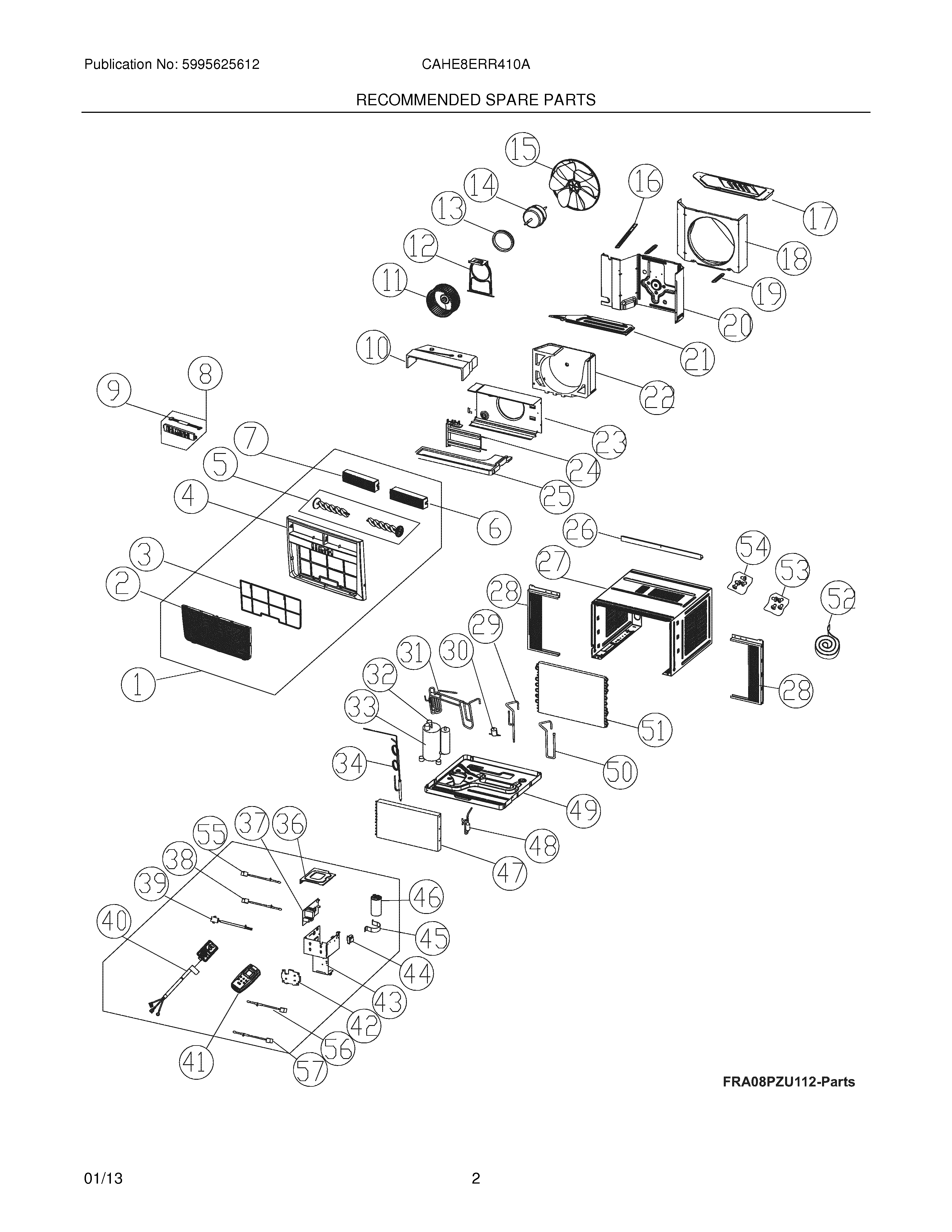

CAHE8ERR410A12 03 – RECOMMENDED SPARE PARTS

Products

PositionProduct
1Panel,front assy
2Panel,front grill
35304535825 Frigidaire Air Filter
4WCI 5304483567
5Louver,vertical
6Louver,horizontal ,right
7Louver,horizontal ,left
8WCI 5304482936
9Wire,connector ,pc boards
10WCI 5304483210
115304471312 Frigidaire Air Conditioner Blower Wheel
12WCI 5304471285
13WCI 5304471286
14WCI 5304471284
155304471287 Frigidaire Air Conditioner Fan Blade
16WCI 5304471254
17WCI 5304471288
18WCI 5304483211
19WCI 5304471253
20WCI 5304487602
21WCI 5304476388
22WCI 5304471301
23WCI 5304487603
245304477339 Frigidaire Air Conditioner Heater
25WCI 5304471265
26WCI 5304482525
27Cabinet,wrapper/sleeve
28WCI 5304471252
29WCI 5304487607
30Valve,drain
31WCI 5304487608
32Overload Protector,compressor
33WCI 5304483171
34WCI 5304487609
36WCI 5304483214
375304483215 Frigidaire Air Conditioner PC Board
38Sensor,temperature ,ambient
395304512375 Frigidaire Air Conditioner Sensor
40WCI 5304476457
41Remote Control,transmitter
42WCI 5304487610
43WCI 5304483218
445304470989 Frigidaire Air Conditioner Transformer
45Strap,capacitor clamp
46WCI 5304476003
47WCI 5304487611
485304476367 Frigidaire Air Conditioner Filter Drier
49WCI 5304483220
50WCI 5304487612
51WCI 5304487613
52Seal kit,window ,foam strips
53WCI 5304471257
54Screw Kit,top rail mount
55SENSOR
565304483216 Frigidaire Air Conditioner Sensor
575304490066 Frigidaire Air Conditioner Sensor
