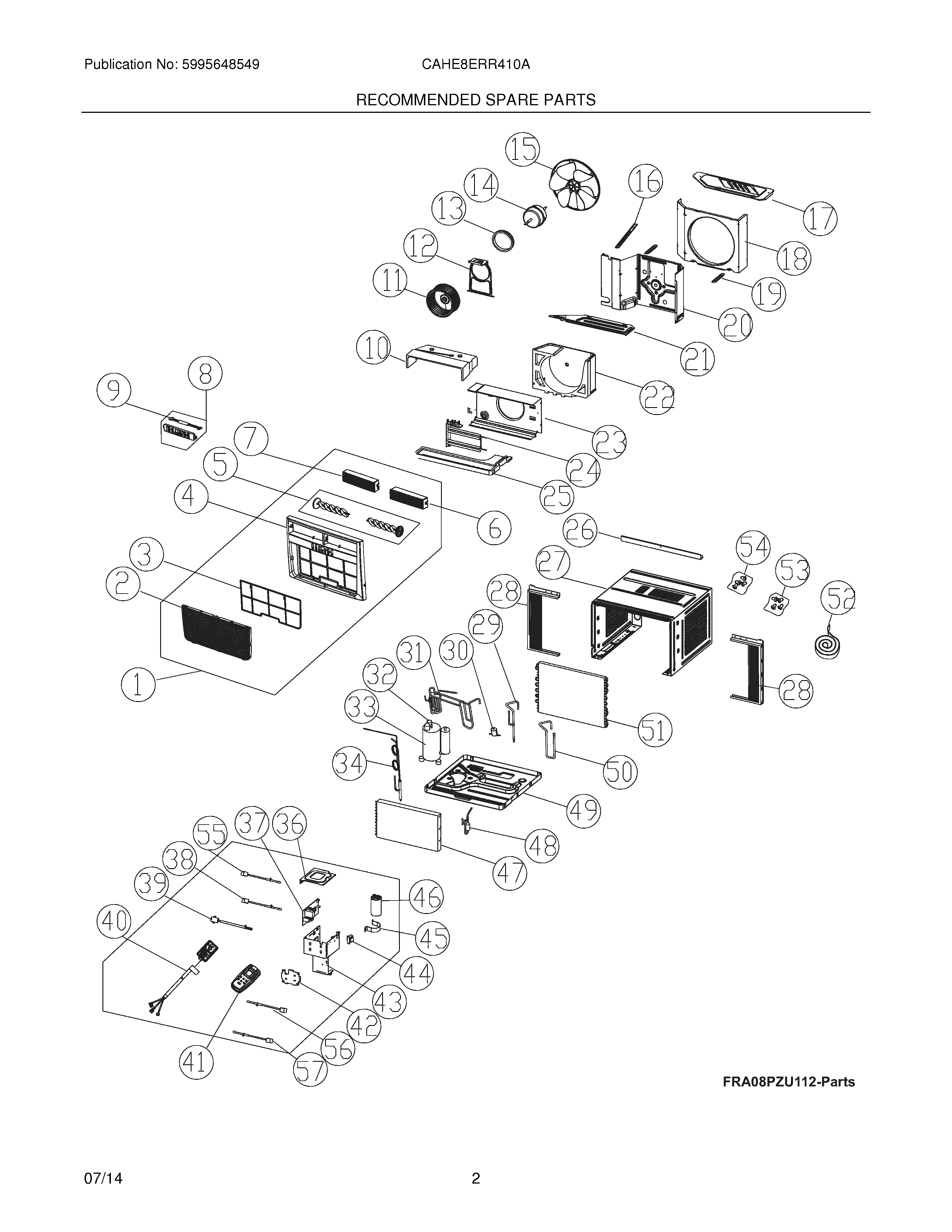

CAHE8ERR410A16 03 – RECOMMENDED SPARE PARTS

Products

Position	Product
1	Panel,front assy
2	Panel,front grill
3	5304535825 Frigidaire Air Filter
4	WCI 5304483567
5	Louver,vertical
6	Louver,horizontal ,right
7	Louver,horizontal ,left
8	PC Board,display/input
9	5304495009 Frigidaire Air Conditioner Wire
10	WCI 5304483210
11	5304471312 Frigidaire Air Conditioner Blower Wheel
12	WCI 5304471285
13	WCI 5304471286
14	WCI 5304471284
15	5304471287 Frigidaire Air Conditioner Fan Blade
16	WCI 5304471254
17	WCI 5304471288
18	WCI 5304483211
19	WCI 5304471253
20	WCI 5304487602
21	WCI 5304476388
22	WCI 5304471301
23	WCI 5304495588
24	5304477339 Frigidaire Air Conditioner Heater
25	WCI 5304471265
26	Rail,shutter ,top channel
27	Cabinet,wrapper/sleeve
28	Window Filler Kit,slider panels ,accordion
29	WCI 5304496432
30	Valve,drain
31	WCI 5304496433
32	5304492022 Frigidaire Air Conditioner Overload Protector
33	5304489721 Frigidaire Air Conditioner Compressor
34	WCI 5304487609
36	WCI 5304483214
37	5304496429 Frigidaire Air Conditioner PC Board
38	5304512374 Frigidaire Air Conditioner Sensor
39	5304512375 Frigidaire Air Conditioner Sensor
40	WCI 5304476457
41	Remote Control,transmitter
42	WCI 5304487610
43	WCI 5304483218
44	5304470989 Frigidaire Air Conditioner Transformer
45	Strap,capacitor clamp
46	WCI 5304476003
47	WCI 5304487611
48	5304476367 Frigidaire Air Conditioner Filter Drier
49	WCI 5304483220
50	WCI 5304496434
51	WCI 5304496431
52	Seal kit,window ,foam strips
53	Hardware Kit,installation
54	Screw Kit,top rail mount
55	SENSOR
56	5304483216 Frigidaire Air Conditioner Sensor
57	5304490066 Frigidaire Air Conditioner Sensor
