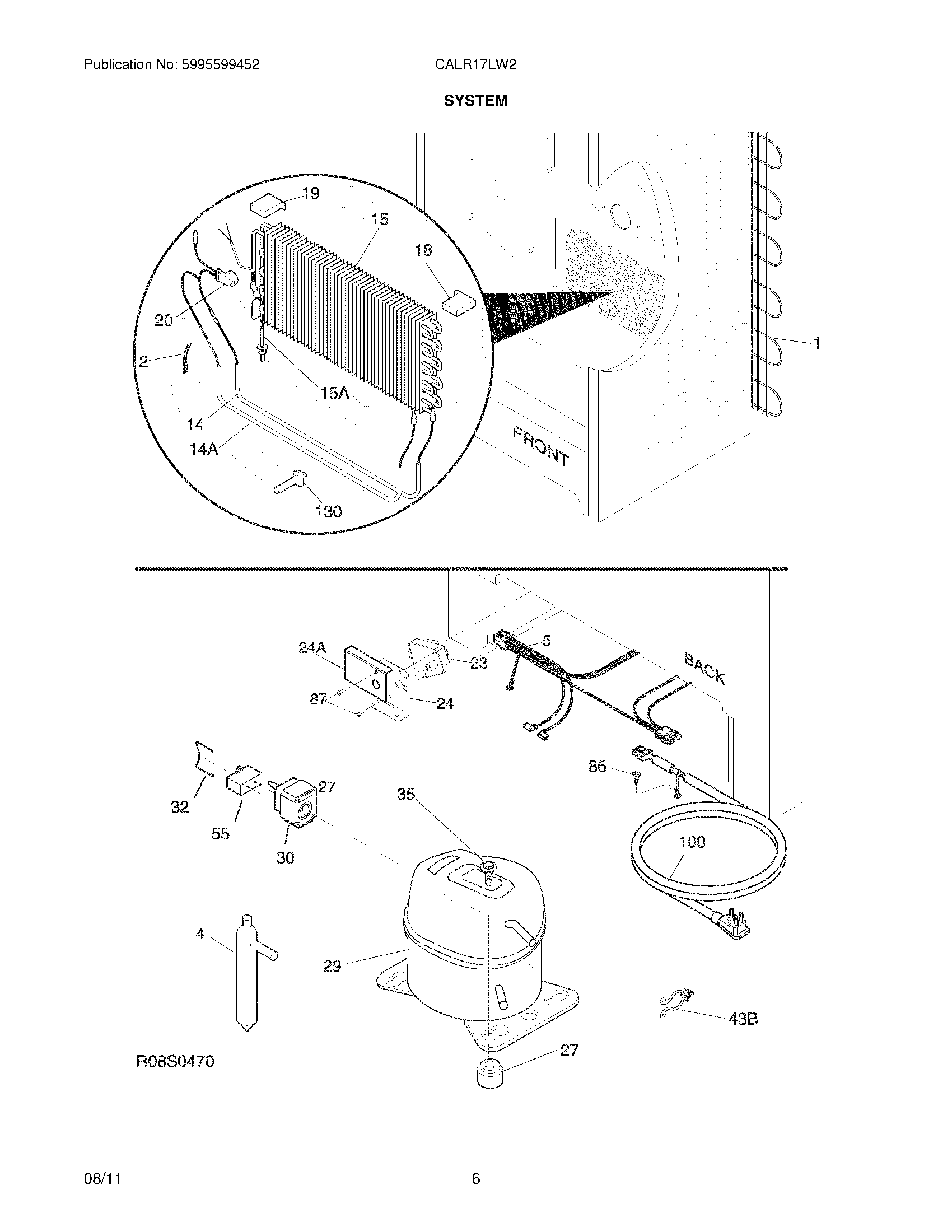

CALR17LW2 07 – SYSTEM

CALR17LW2 07 – SYSTEM

Written by

in

CALR17LW2 07 – SYSTEM

Products

PositionProduct
NI216695300 Frigidaire Refrigerator Bimetal Relay
NI241853202 Frigidaire Refrigerator Screw
NI240555002 Frigidaire Refrigerator Screw #8-32 X 3/8
NIWCI 216683900
NIWCI 216502500
15300083897 Frigidaire Refrigerator Condenser P1 O/S2
25308000110 Frigidaire Refrigerator Evaporator/Heater Primary Strap
45303305677 Frigidaire Replacement Filter Dryer Filters
5297244600 Frigidaire Refrigerator Harness-Main
14297253602 Frigidaire Refrigerator U17 Defrost Heater
14AWCI 297222901
15A297217900 Frigidaire Refrigerator Suction Tube
15297414901 Frigidaire Refrigerator Evaporator
18297078701 Frigidaire Refrigerator Insulator-Evaporator
19297078801 Frigidaire Refrigerator Evaporator Insulator
20DEFROST THERMOSTAT
235304518034 Frigidaire Refrigerator Defrost Timer
24AWCI 297207900
24WCI 216968501
27216337701 Frigidaire Refrigerator Screw
295304507767 Frigidaire Refrigerator Compressor Kit
30216954200 Frigidaire Refrigerator Start Relay Device
32216954300 Frigidaire Refrigerator Clip
35297368501 Frigidaire Bolt
43B297315800 Frigidaire Refrigerator Clip
55Run Capacitor,10MF
86216036601 Frigidaire Refrigerator Screw
87216858001 Frigidaire Refrigerator Screw
130297244700 Frigidaire Refrigerator Support
