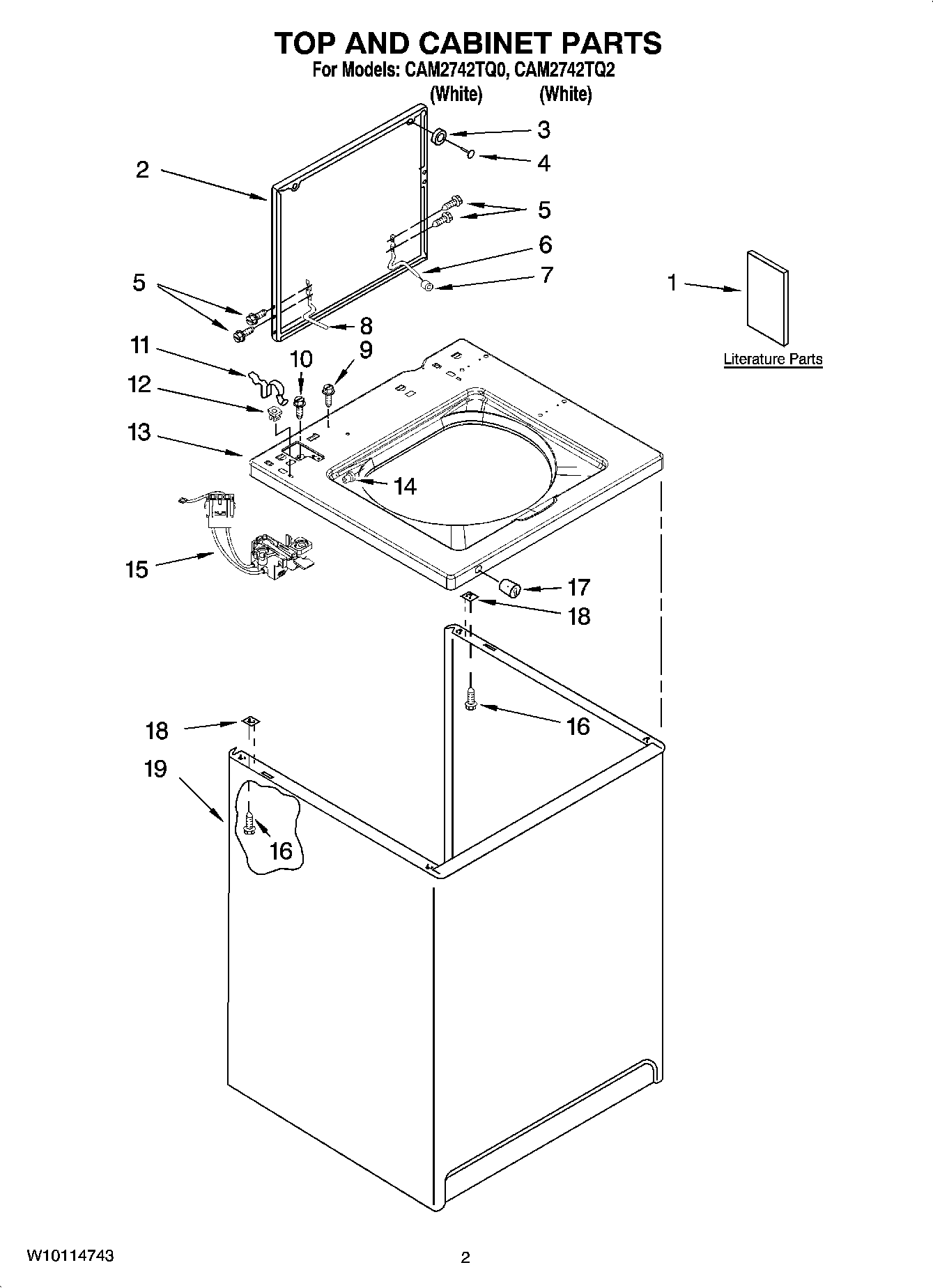

CAM2742TQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Repair Parts List
1	Energy Guide
1	WPL 8316532
1	Wiring Diagram
2	Lid
3	BUMPER
4	WP356907 Whirlpool Rivet
5	SCREW
6	WP54583 Whirlpool Hinge
7	Bumper, Lid Hinge
8	WP8524784 Whirlpool Hinge Assembly
9	WP3351614 Whirlpool Screw
10	Screw, Lid Switch (2)
11	WP62780 Whirlpool Cabinet Clip
12	Nut, Push-In (2)
13	Top
14	WP21258 Whirlpool Washer Lid Hinge Bearing
15	WP8054980 Whirlpool Lid Switch Assembly
16	WP3390631 Whirlpool Screw
17	WP387371 Whirlpool Plug
18	WP62750 Whirlpool Spacer
19	63424 Whirlpool Cabinet Assembly
