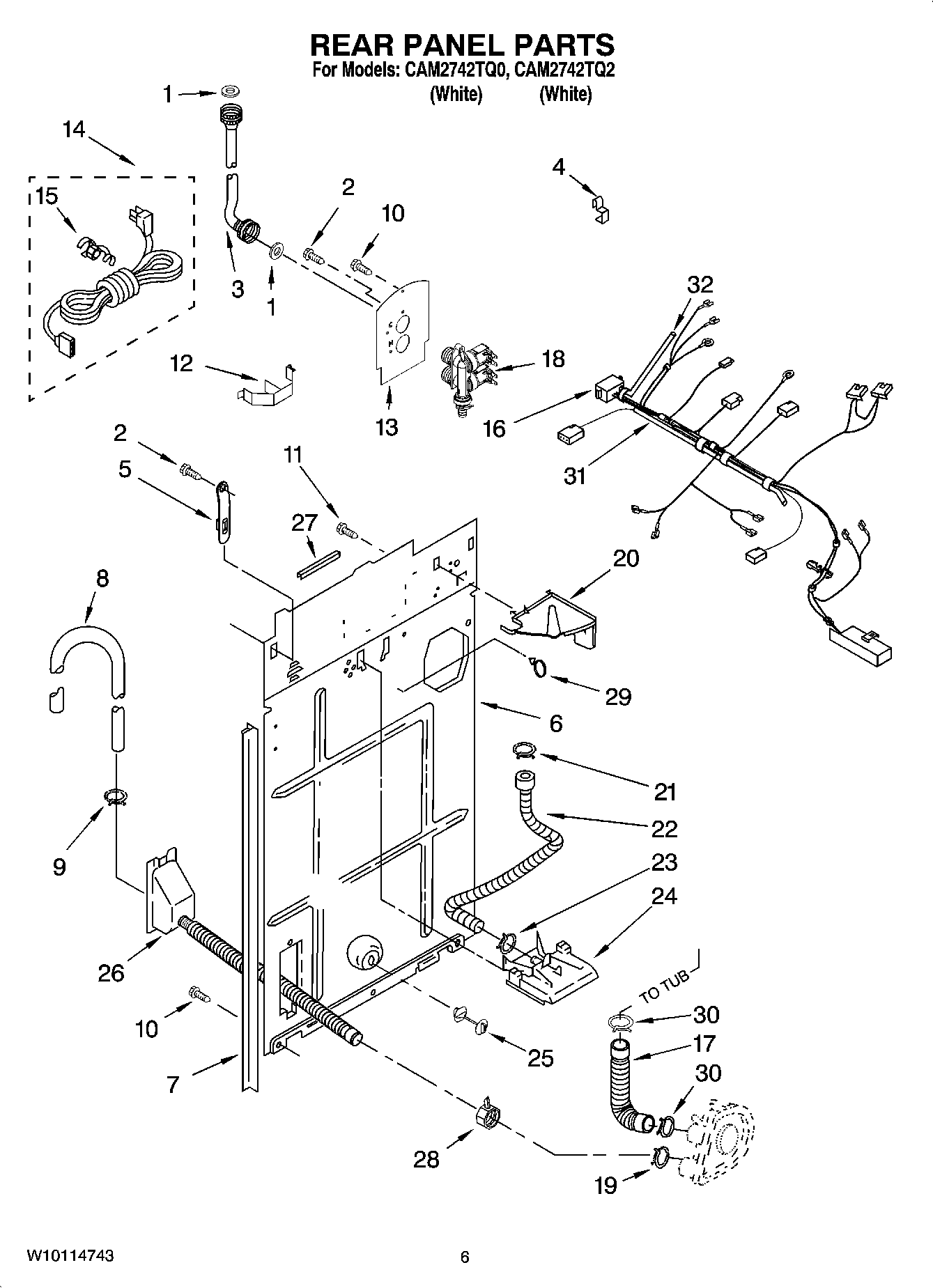

CAM2742TQ0 04 – REAR PANEL PARTS

CAM2742TQ0 04 – REAR PANEL PARTS

Written by

in

CAM2742TQ0 04 – REAR PANEL PARTS

Products

PositionProduct
Following Parts Not Illustrated
Miscellaneous Parts Bag
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP3949380 Whirlpool Fill Hose
3WP3949381 Whirlpool Fill Hose
4Clip, Harness
5WP8568314 Whirlpool Strap
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WP96743 Whirlpool Hose
9WP285655 Whirlpool Hose Clamp
10WP3390631 Whirlpool Screw
11WP3351614 Whirlpool Screw
12Clip, Harness & Pressure Hose
13285930 Whirlpool Plate
14285928 Whirlpool Power Cord Assembly
15Strain Relief, Power Cord
16Harness, Wiring (Includes Items 12 & 13) (For Detail See Pages 12 & 13)
17285871 Whirlpool Hose and Clamp
18WP3979346 Whirlpool Water Inlet Valve
19WP356138 Whirlpool Hose Clamp
20WPL 8539874
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27Edge Protector
28Clamp, Hose
298559320 Whirlpool Clip
30WP616099 Whirlpool Clamp
32WP353244 Whirlpool Hose
