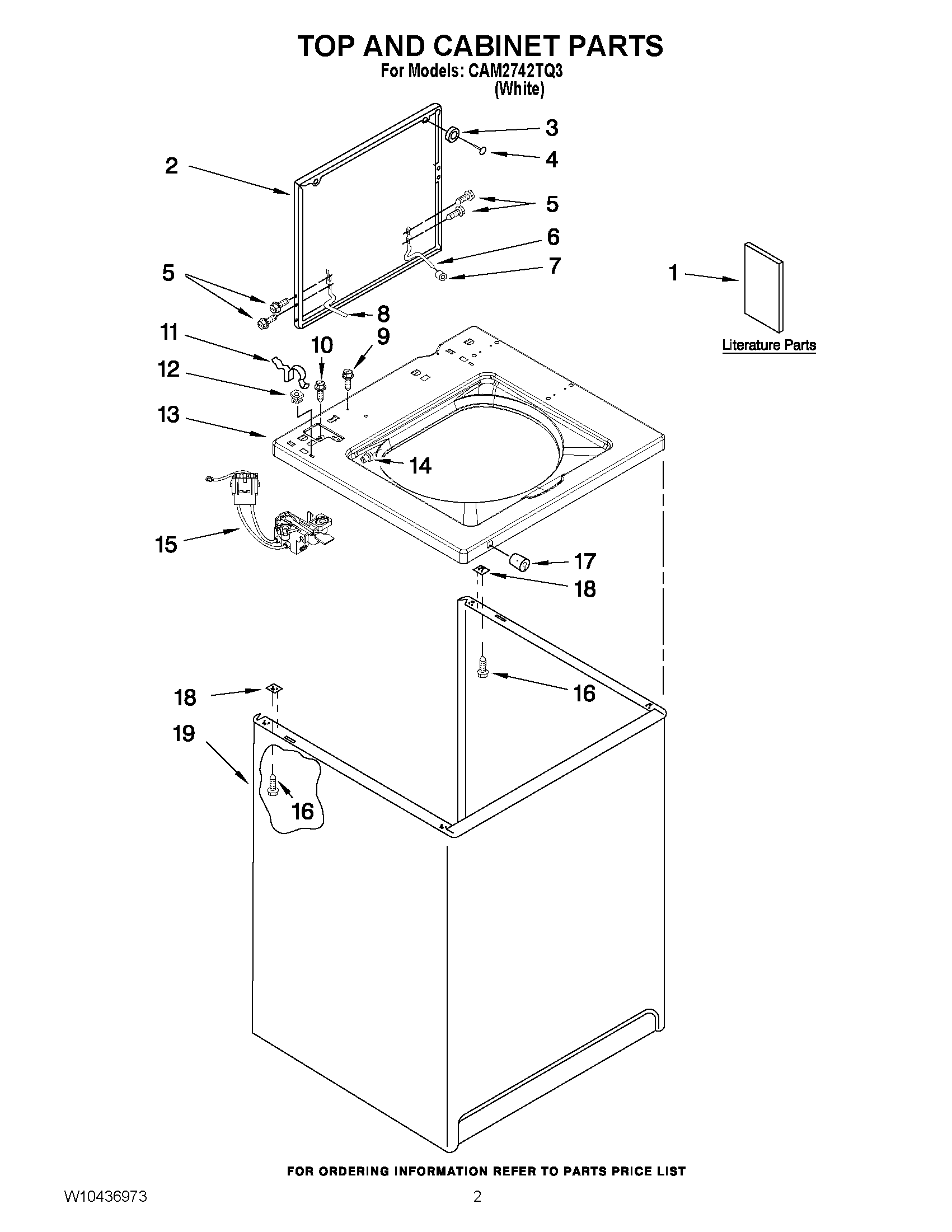

CAM2742TQ3 01 – TOP AND CABINET PARTS

Products

PositionProduct
1INSTALLATION, INSTRUCTIONS
1Wiring Diagram
1WPL 8316532
1ENERGY GUIDE
2Lid
3BUMPER
4WP356907 Whirlpool Rivet
5SCREW
6WP54583 Whirlpool Hinge
7Bumper, Lid Hinge
8WP8524784 Whirlpool Hinge Assembly
9WP3351614 Whirlpool Screw
10Screw, Lid Switch (2)
11WP62780 Whirlpool Cabinet Clip
12Nut, Push-In (2)
13Top
14WP21258 Whirlpool Washer Lid Hinge Bearing
15WP8054980 Whirlpool Lid Switch Assembly
16WP3390631 Whirlpool Screw
17WP387371 Whirlpool Plug
18WP62750 Whirlpool Spacer
1963424 Whirlpool Cabinet Assembly
