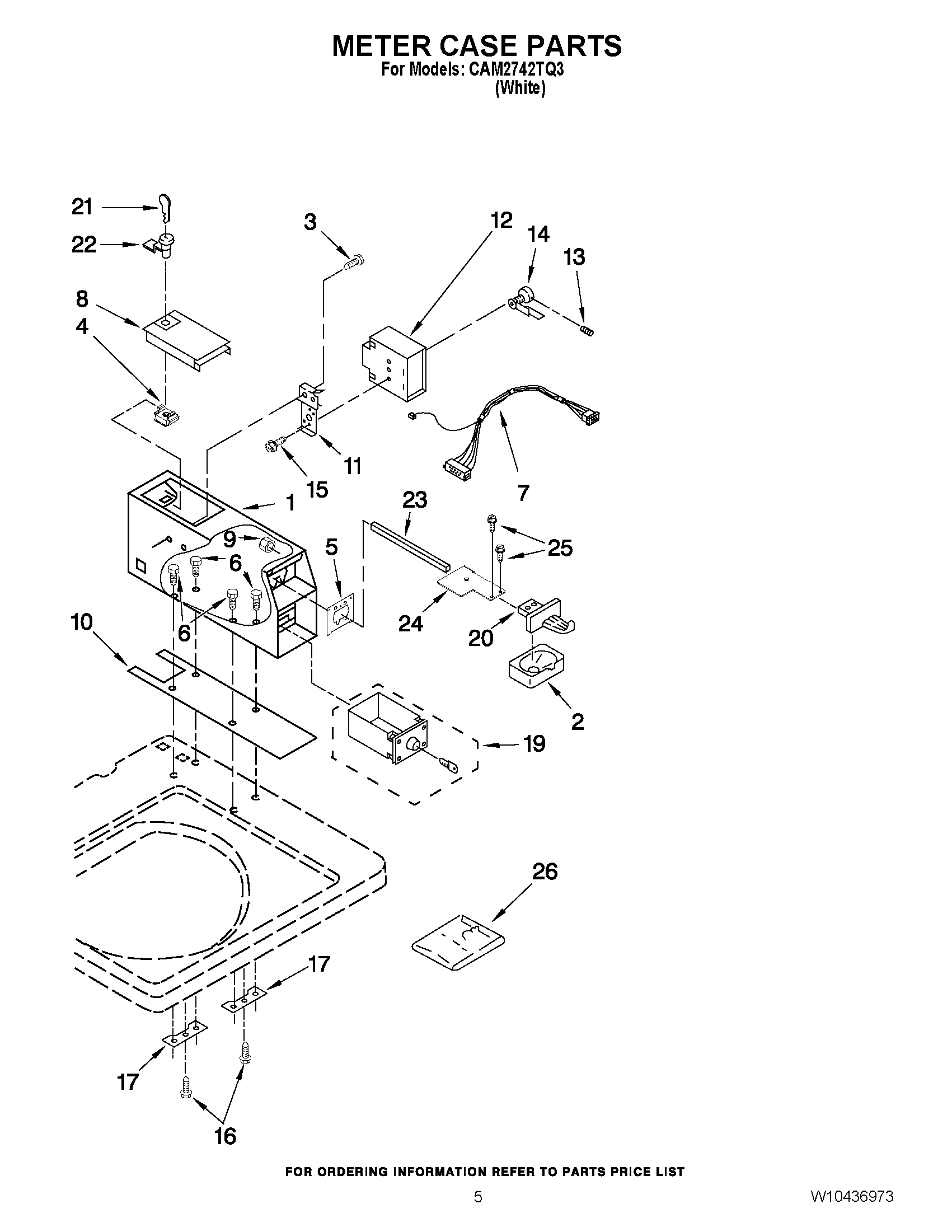

CAM2742TQ3 03 – METER CASE PARTS

Products

Position	Product
1	WPW10461200 Whirlpool Case
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
5	279950 Whirlpool Funnel
6	W11715721 Whirlpool Screw Assembly
7	W10138351 Whirlpool Wire Harness
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
9	WP3400029 Whirlpool Dishwasher Nut
10	WP3954812 Whirlpool Cushion
11	Bracket, Timer
12	WPW10112081 Whirlpool Timer
13	Setscrew, 10-32
14	WP354987 Whirlpool C-Clip
14	Clutch, Timer
15	WP3400064 Whirlpool Screw
16	W10841059 Whirlpool Screw
17	3347825 Whirlpool Plate
19	W11190039 Whirlpool Coin Box Assembly
20	W11126319 Whirlpool Washer Dryer Coin Chute
21	KEY
22	W11315637 Whirlpool Lock Assembly
23	WP8576635 Whirlpool Bolt
24	W11318367 Whirlpool Extension
25	WPL 3400086
26	WPL 8316524
