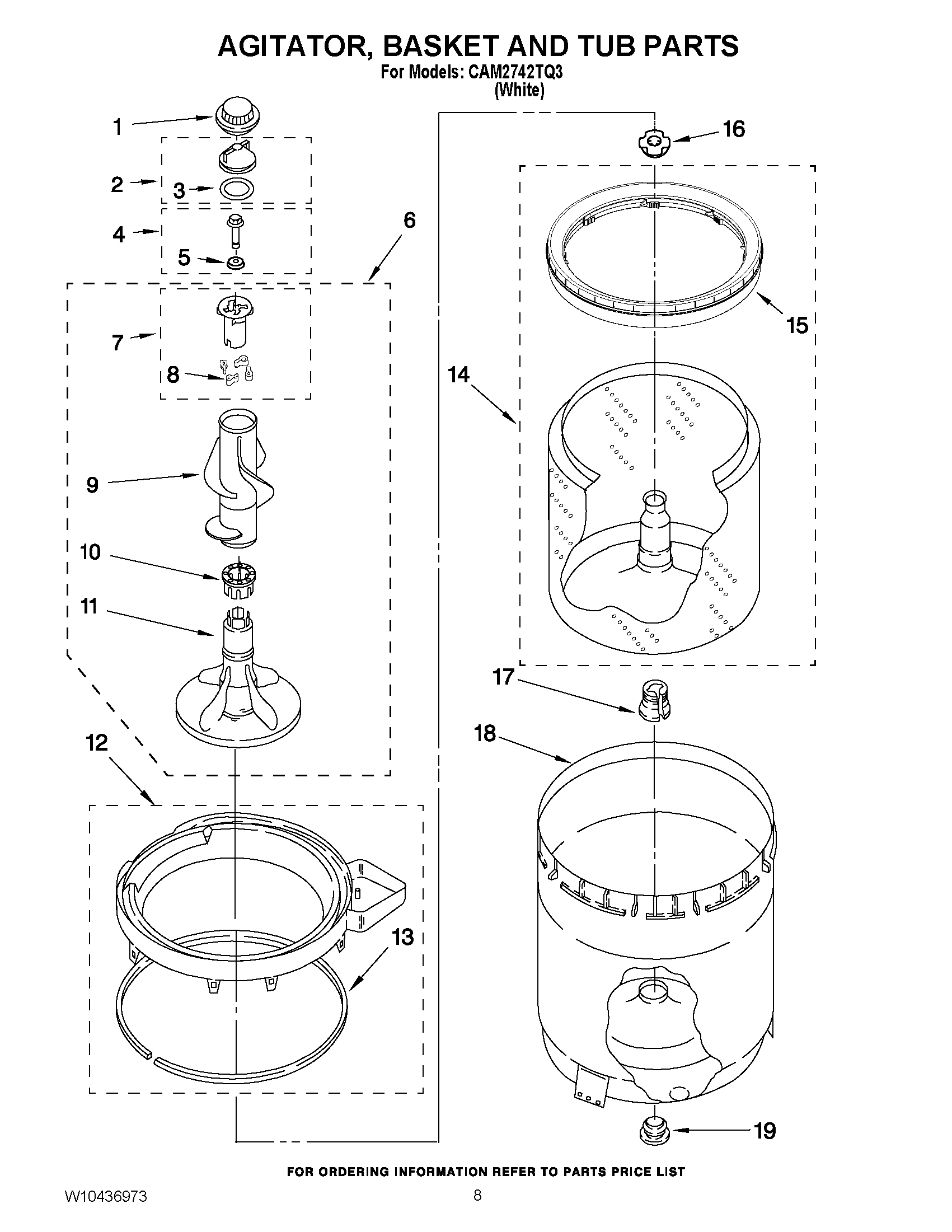

CAM2742TQ3 05 – AGITATOR, BASKET AND TUB PARTS

CAM2742TQ3 05 – AGITATOR, BASKET AND TUB PARTS

Written by

in

CAM2742TQ3 05 – AGITATOR, BASKET AND TUB PARTS

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2285550 Whirlpool Cap
3WPW10072840 Whirlpool Seal Assembly
4W10772621 Whirlpool Washplate Screw
5WP3949550 Whirlpool Gasket Assembly
6WP3349743 Whirlpool Agitator
7285751 Whirlpool Washer Agitator Cam and 4 Dogs Kit
880040 Whirlpool Washer Agitator Dog Kit
9W11676449 Whirlpool Agitator Mover
10285620 Whirlpool Washer
11WP3349578 Whirlpool Agitator
12W10880720 Whirlpool Tub Ring
13WP3976308 Whirlpool Tub Seal
14W10389329 Whirlpool Microwave Basket
15WP387240 Whirlpool Balance Ring
16WP21366 Whirlpool Spanner Nut
17WP389140 Whirlpool Drive Block or Bell
1863849 Whirlpool Outer Tub Primary Assembly
19W10814296 Whirlpool Washer Center Post Seal Gasket
