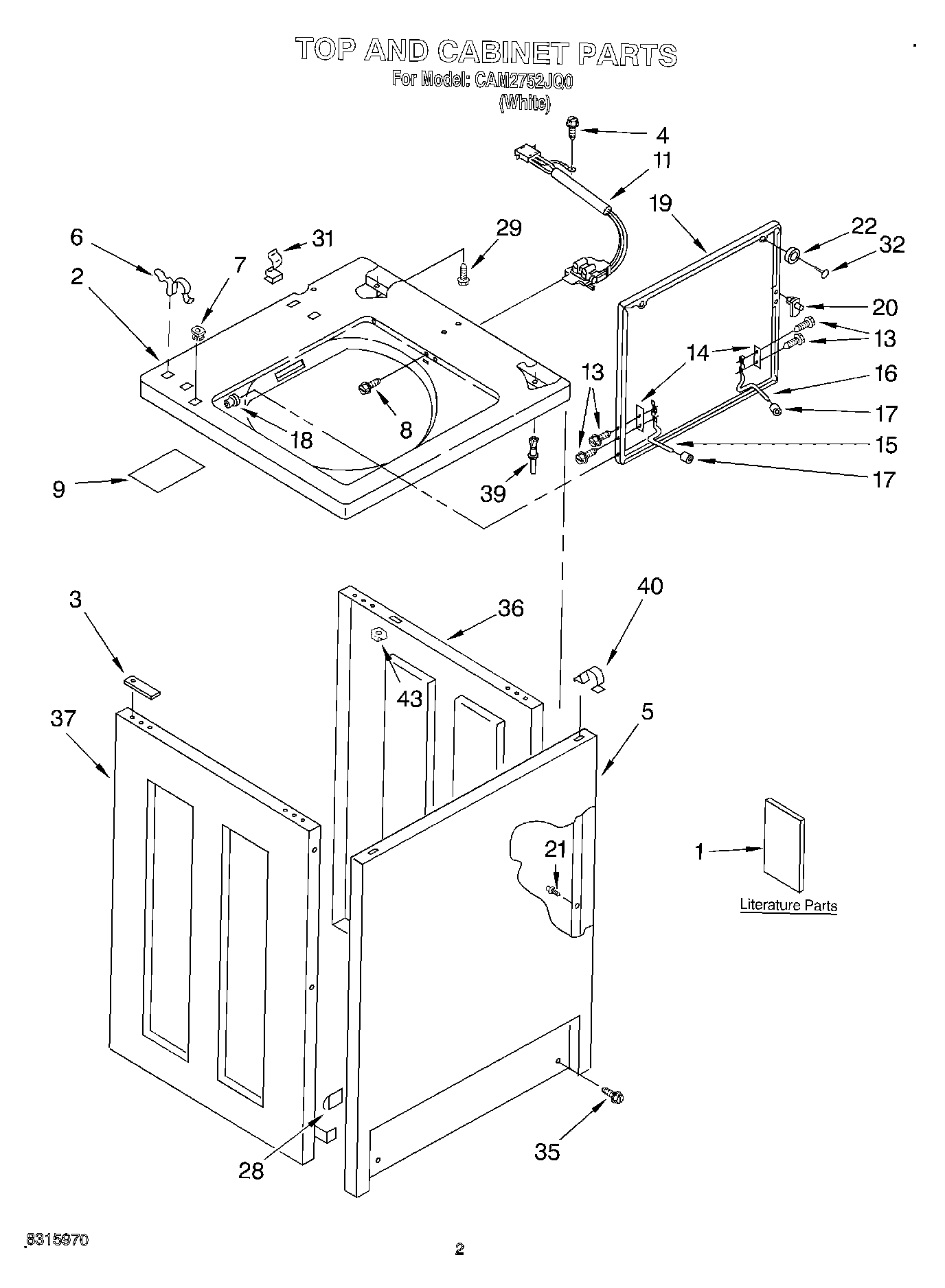

CAM2752JQ0 02 – TOP AND CABINET, LIT/OPTIONAL
Written by
in
CAM2752JQ0 02 – TOP AND CABINET, LIT/OPTIONAL
Products
Position
Product
1
Literature Parts (Installation Instructions)
1
Literature Parts (Wiring Diagram)
1
Literature Parts (Repair Parts List)
2
Top
3
Spacer, Cabinet To Top (4)
4
W10841059 Whirlpool Screw
5
WP3358500 Whirlpool Panel
6
WP62780 Whirlpool Cabinet Clip
7
Nut, Push-In (2)
8
WP3356311 Whirlpool Screw
9
Shield, Pressure Switch
11
285671 Whirlpool Lid Switch Assembly
13
SCREW
14
WP21097 Whirlpool Pad
15
WP54584 Whirlpool Hinge
16
WP91770 Whirlpool Hinge
17
Bumper, Lid Hinge
18
WP21258 Whirlpool Washer Lid Hinge Bearing
19
WPW10193854 Whirlpool Lid Assembly
20
WP358684 Whirlpool Strike Assembly
21
Locator (4)
22
BUMPER
28
WP98234 Whirlpool Nut
29
Screw (2)
31
WP90016 Whirlpool Clip
32
WP356907 Whirlpool Rivet
35
WP3373329 Whirlpool Dishwasher Screw
36
Panel, R. H. (White)
37
Panel, L. H. (White)
39
Pin, Locator (2)
40
WP18776 Whirlpool Lock
43
WP90406 Whirlpool Nut
43
350938 Whirlpool Spray Gun
43
350956 Whirlpool Spray Assembly
43
72017 Whirlpool Appliance Touch-Up Paint White
43
799344 Whirlpool Refrigerator Paint
43
WP72107 Whirlpool Touchup
43
WP285195 Whirlpool Sealer Assembly
43
350930 Whirlpool White Spray Paint
43
Shipping Kit
43
Almond (Uncut)
43
350572 Whirlpool Oil Transmission 15 Oz
43
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
←
