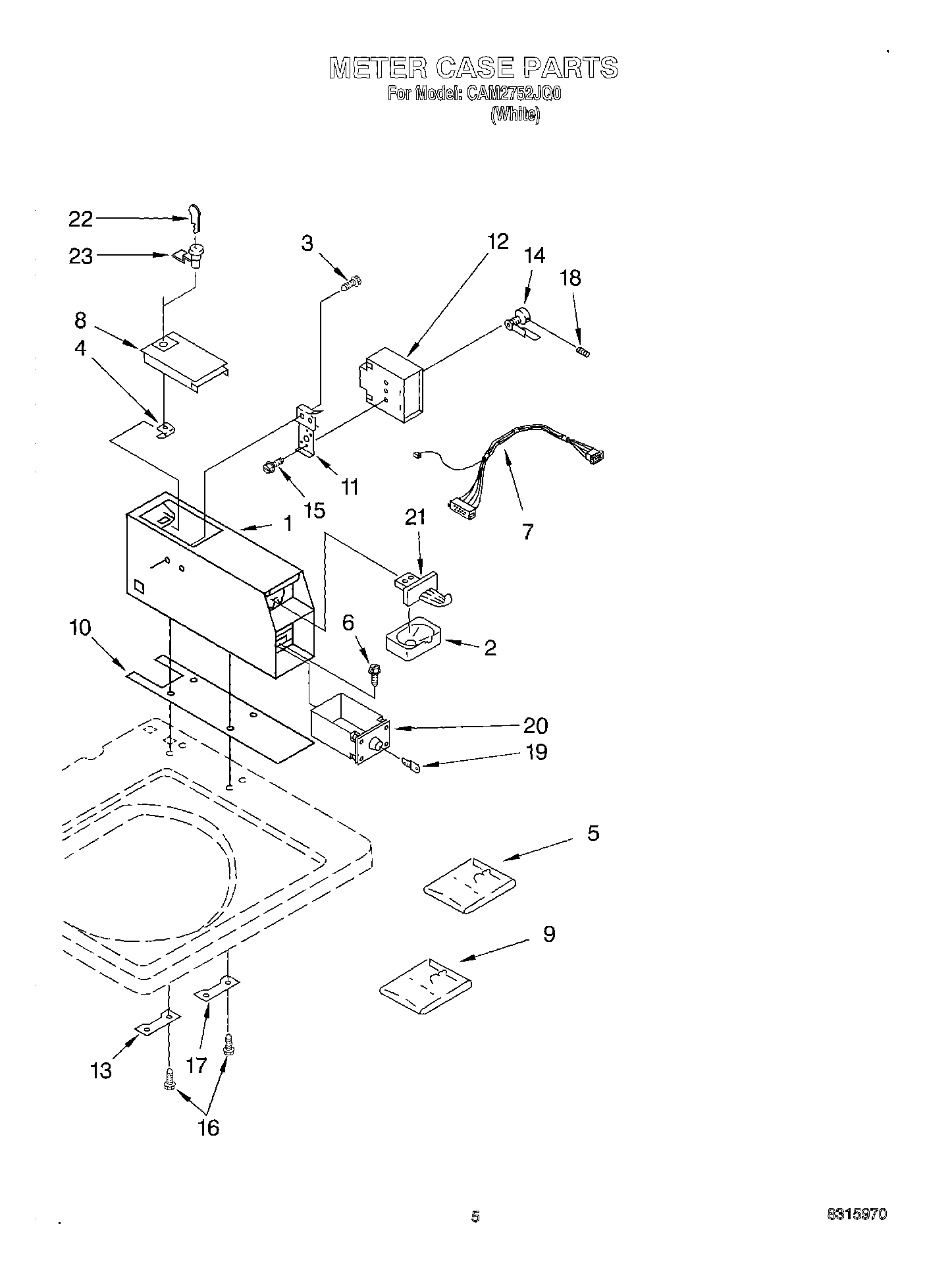

CAM2752JQ0 04 – METER CASE

Products

Position	Product
1	WPW10461200 Whirlpool Case
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
5	279950 Whirlpool Funnel
6	W11715721 Whirlpool Screw Assembly
6	3353994 Whirlpool Screw Assembly
7	3954764 Whirlpool Wire Harness
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
9	WP3406965 Whirlpool Coin Chute
10	WP3954812 Whirlpool Cushion
11	Bracket, Timer
12	WP8575004 Whirlpool Timer
13	Plate, Mounting
14	Clutch, Timer
14	WP354987 Whirlpool C-Clip
15	WP3400064 Whirlpool Screw
16	W10841059 Whirlpool Screw
17	3347825 Whirlpool Plate
18	Setscrew, 10-32
