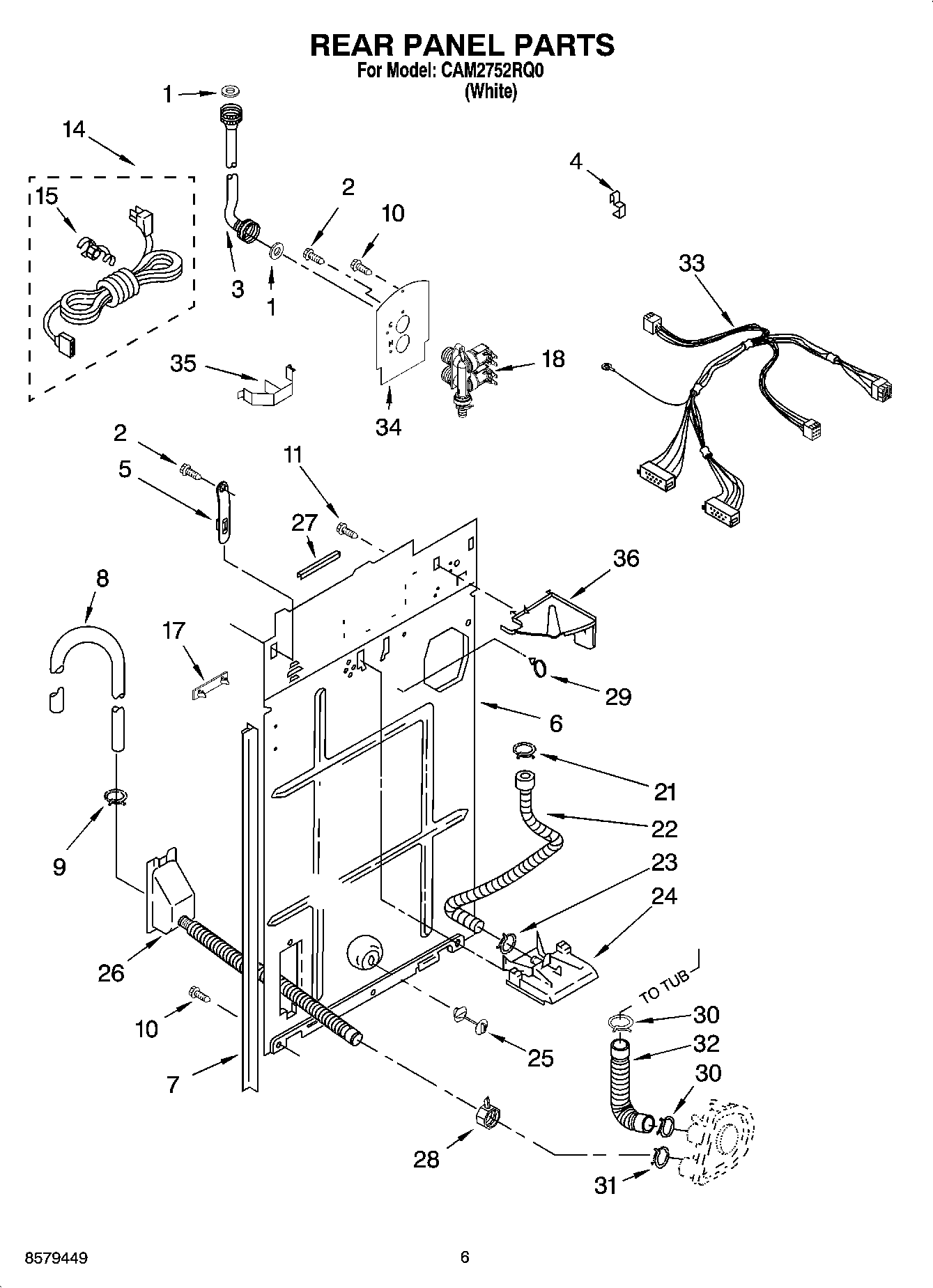

CAM2752RQ0 04 – REAR PANEL PARTS

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP3949380 Whirlpool Fill Hose
3WP3949381 Whirlpool Fill Hose
4Clip, Harness
5WP8568314 Whirlpool Strap
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8WP96743 Whirlpool Hose
8285702 Whirlpool Extensions
9WP371502 Whirlpool Clamp
10WP3390631 Whirlpool Screw
11WP3351614 Whirlpool Screw
14285928 Whirlpool Power Cord Assembly
15Strain Relief, Power Cord
17WP389379 Whirlpool Retainer
18WP3979346 Whirlpool Water Inlet Valve
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3360977 Whirlpool Washer Tub Fill Nozzle
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27Edge Protector
28Clamp, Hose
298559320 Whirlpool Clip
30WP616099 Whirlpool Clamp
31WP356138 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
33Harness, Timer
34285930 Whirlpool Plate
35Clip, Harness & Pressure Hose
36Miscellaneous Parts Bag
36WPL 8539874
36Following Parts Not Illustrated
