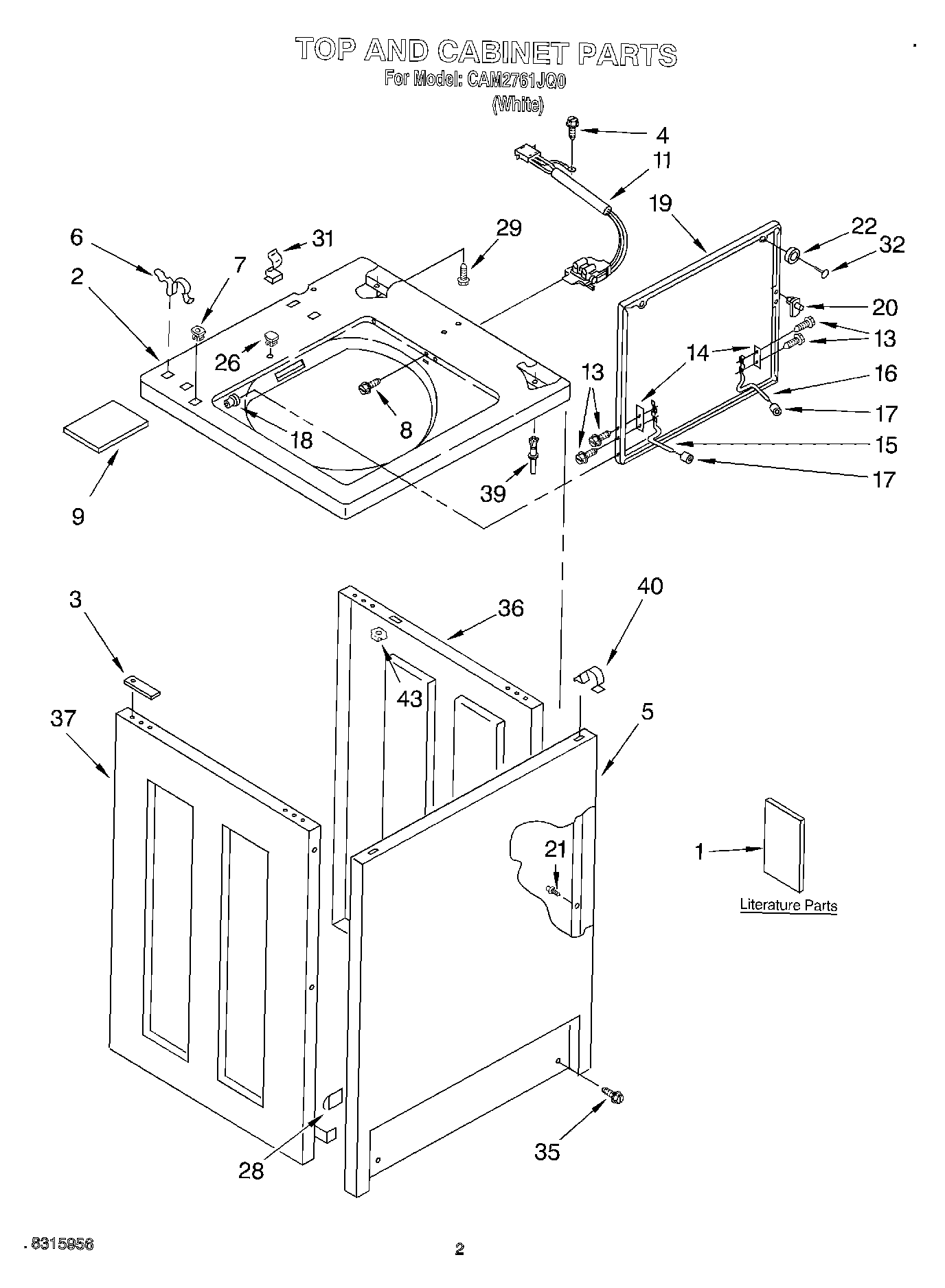

CAM2761JQ0 02 – TOP AND CABINET, LIT/OPTIONAL

CAM2761JQ0 02 – TOP AND CABINET, LIT/OPTIONAL

Written by

in

CAM2761JQ0 02 – TOP AND CABINET, LIT/OPTIONAL

Products

PositionProduct
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
1Literature Parts (Repair Parts List)
2Top
3Spacer, Cabinet To Top (4)
4WP8281182 Whirlpool Screw Assembly
5WP3358500 Whirlpool Panel
6WP62780 Whirlpool Cabinet Clip
7Nut, Push-In (2)
8WP3356311 Whirlpool Screw
9Shield, Pressure Switch
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193854 Whirlpool Lid Assembly
20WP358684 Whirlpool Strike Assembly
21Locator (4)
22BUMPER
26Stop, Push-In Top
28WP98234 Whirlpool Nut
29Screw (2)
31WP90016 Whirlpool Clip
32WP356907 Whirlpool Rivet
35WP3373329 Whirlpool Dishwasher Screw
36Panel, R. H. (White)
37Panel, L. H. (White)
39Pin, Locator (2)
40WP18776 Whirlpool Lock
43350938 Whirlpool Spray Gun
43350956 Whirlpool Spray Assembly
4372017 Whirlpool Appliance Touch-Up Paint White
43799344 Whirlpool Refrigerator Paint
43WP72107 Whirlpool Touchup
43350930 Whirlpool White Spray Paint
43Almond (Uncut)
43WP90406 Whirlpool Nut
43LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
43Shipping Kit
43WP285195 Whirlpool Sealer Assembly
43350572 Whirlpool Oil Transmission 15 Oz
