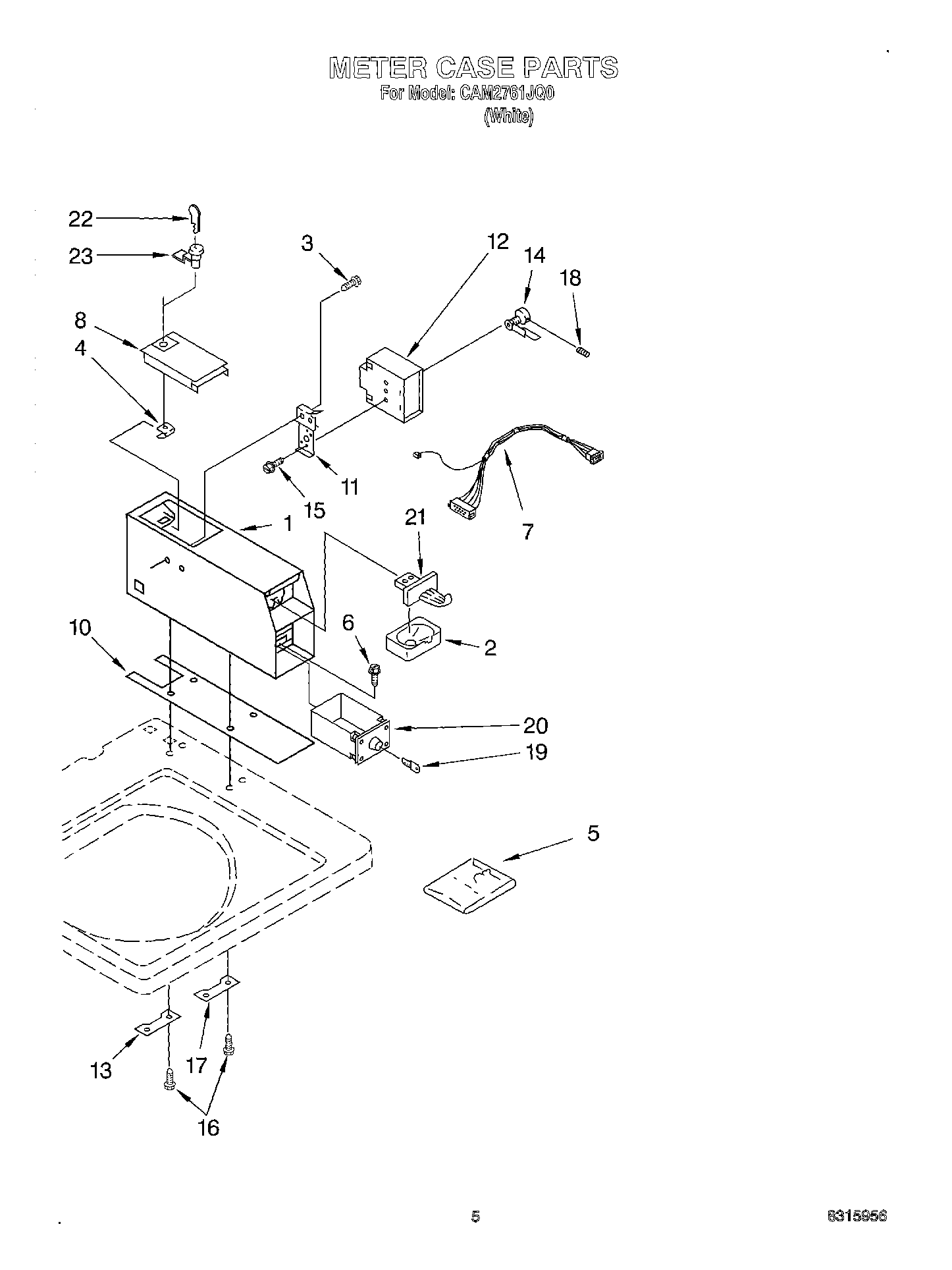

CAM2761JQ0 04 – METER CASE

CAM2761JQ0 04 – METER CASE

Written by

in

CAM2761JQ0 04 – METER CASE

Products

PositionProduct
1WPW10461200 Whirlpool Case
2WP385421 Whirlpool Coin Operated Laundry Funnel
3339805 Whirlpool Screw
4WP90406 Whirlpool Nut
5279950 Whirlpool Funnel
6W11715721 Whirlpool Screw Assembly
63353994 Whirlpool Screw Assembly
73954764 Whirlpool Wire Harness
8W11283272 Whirlpool Washer Dryer Meter Case Access Door
10WP3954812 Whirlpool Cushion
11Bracket, Timer
12WP8575004 Whirlpool Timer
13Plate, Mounting
14Clutch, Timer
14WP354987 Whirlpool C-Clip
15WP3400064 Whirlpool Screw
16W10841059 Whirlpool Screw
173347825 Whirlpool Plate
18Setscrew, 10-32
