  • CAM2762JQ0 05 – REAR PANEL

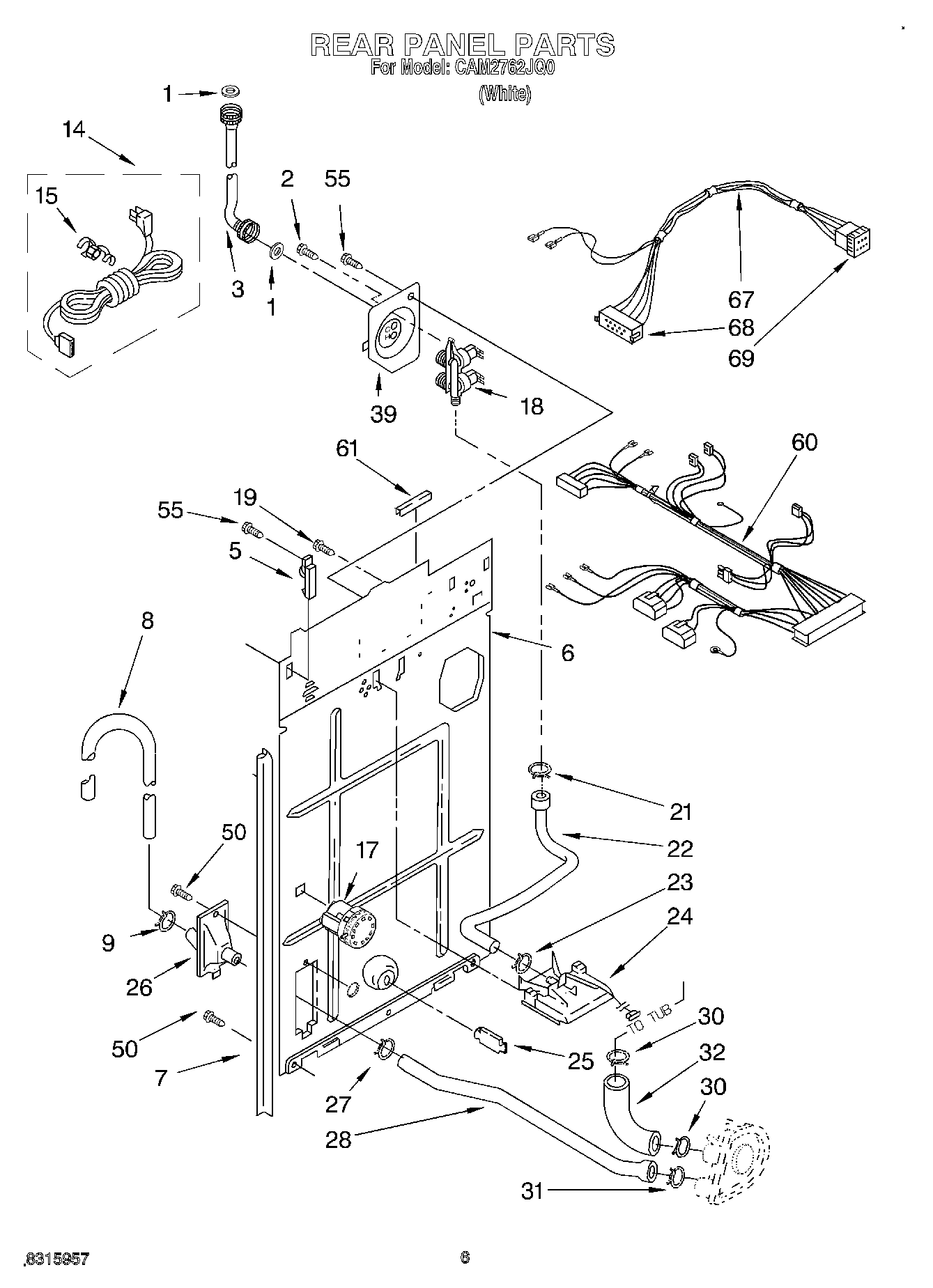

CAM2762JQ0 05 – REAR PANEL

CAM2762JQ0 05 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP9740848 Whirlpool Dishwasher Screw
3WP3949381 Whirlpool Fill Hose
3WP3949380 Whirlpool Fill Hose
5Hinge, Console (2)
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8285666 Whirlpool Drain Hose 10'
8285702 Whirlpool Extensions
8WP96743 Whirlpool Hose
14285928 Whirlpool Power Cord Assembly
15Strain Relief, Power Cord
17W10339019 Whirlpool Washer Water Level Switch
18285805 Whirlpool Washer Water Inlet Valve
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28WP3348552 Whirlpool Hose
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
39285930 Whirlpool Plate
50WP3390631 Whirlpool Screw
55WP488729 Whirlpool Refrigerator Door Screw
60Harness, Wiring (For Detail See Pages 12 & 13)
61Edge Protector
67Harness, Timer (Includes Illus. 68 & 69)
68W10876590 Whirlpool Connector
69Cap, Terminal (15 Way)
