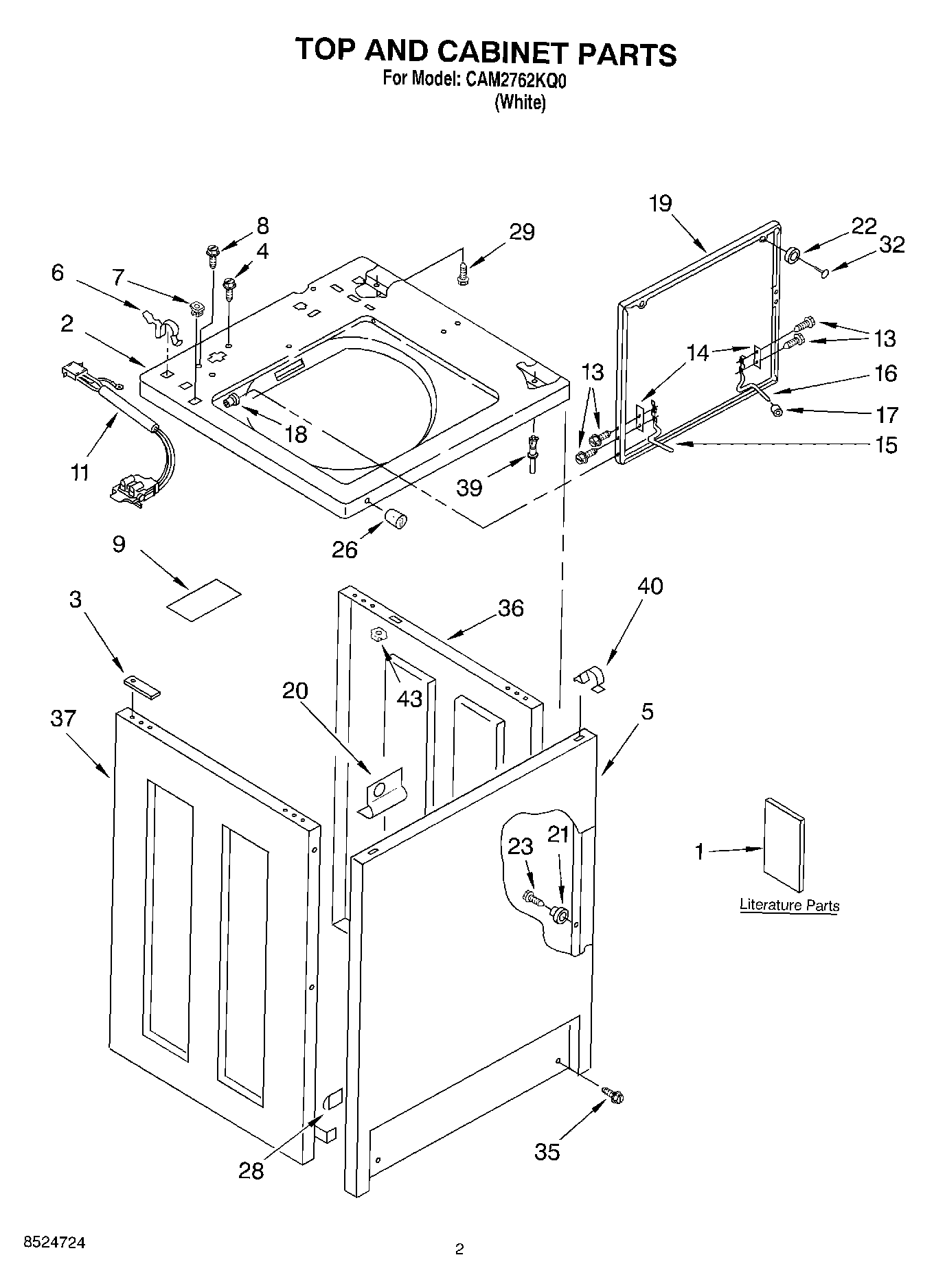

CAM2762KQ0 02 – TOP AND CABINET, LITERATURE

CAM2762KQ0 02 – TOP AND CABINET, LITERATURE

Written by

in

CAM2762KQ0 02 – TOP AND CABINET, LITERATURE

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Wiring Diagram)
1Literature Parts (Installation Instructions)
1Literature Parts (Instructions, Coin Kit)
2Top
3Spacer, Cabinet To Top (4)
4WP3351614 Whirlpool Screw
5WP3358500 Whirlpool Panel
6WP62780 Whirlpool Cabinet Clip
7Nut, Push-In (2)
8Screw, Lid Switch (2)
9Shield, Pressure Switch
11WP8054980 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP8524784 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193854 Whirlpool Lid Assembly
20Rivet (2)
20Bracket, Lock
21Locator (4)
22BUMPER
23WP9741232 Whirlpool Dishwasher Screw
26WP387371 Whirlpool Plug
28WP98234 Whirlpool Nut
29Screw (2)
32WP356907 Whirlpool Rivet
35WP3373329 Whirlpool Dishwasher Screw
36Panel, R. H. (White)
37Panel, L. H. (White)
39Pin, Locator (2)
40WP18776 Whirlpool Lock
43WP90406 Whirlpool Nut
