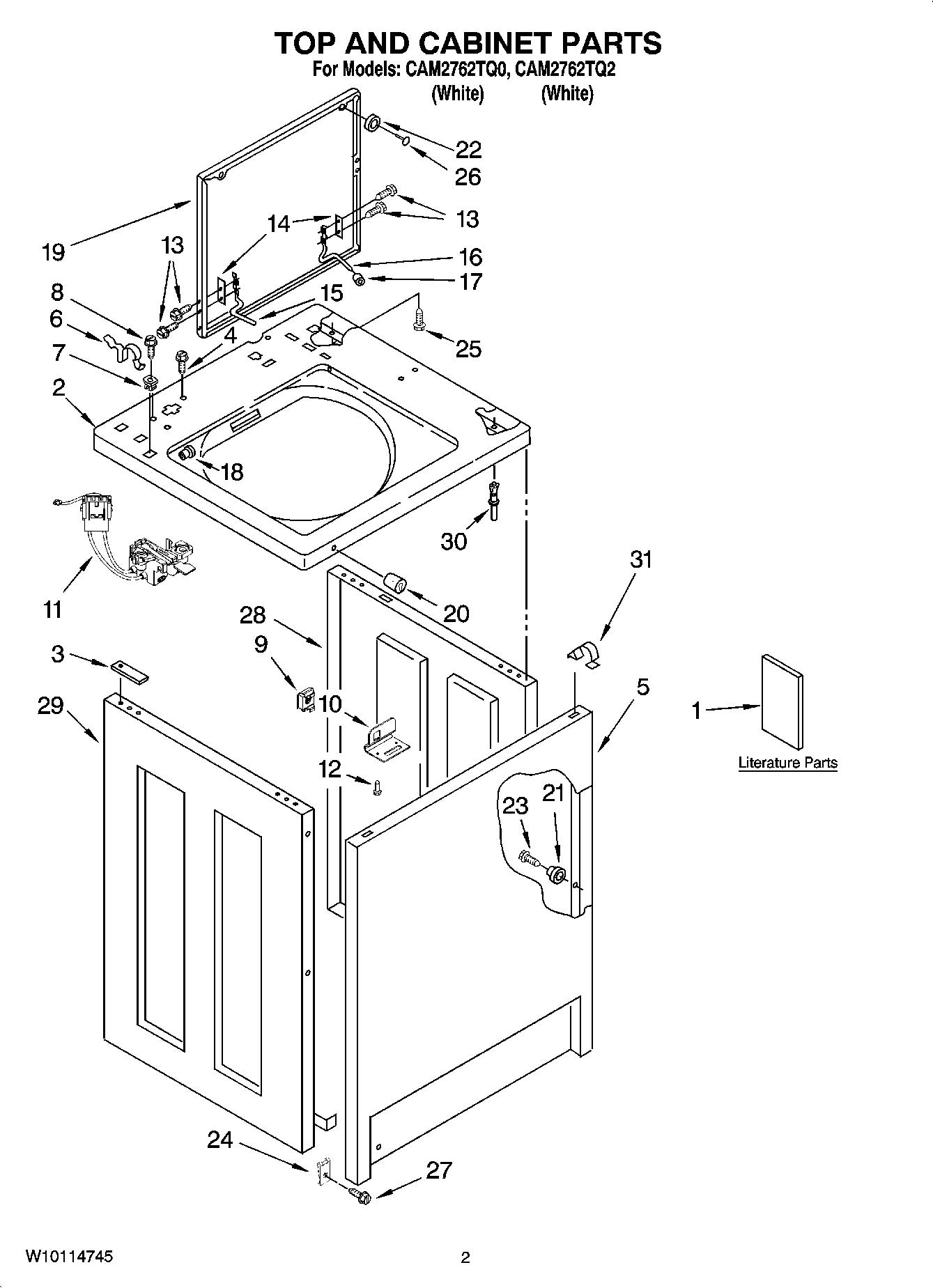

CAM2762TQ0 01 – TOP AND CABINET PARTS

CAM2762TQ0 01 – TOP AND CABINET PARTS

Written by

in

CAM2762TQ0 01 – TOP AND CABINET PARTS

Products

PositionProduct
1Energy Guide
1Wiring Diagram
1Repair Parts List
1Installation Instructions
2Top
3Spacer, Cabinet To Top (4)
4WP3351614 Whirlpool Screw
5WP3358500 Whirlpool Panel
6WP62780 Whirlpool Cabinet Clip
7Nut, Push-In (2)
8Screw, Lid Switch (2)
9WP90406 Whirlpool Nut
10Bracket, Lock
11WP8054980 Whirlpool Lid Switch Assembly
12Rivet (2)
13SCREW
14WP21097 Whirlpool Pad
15WP8524784 Whirlpool Hinge Assembly
16WP54583 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193854 Whirlpool Lid Assembly
20WP387371 Whirlpool Plug
21Locator (4)
22BUMPER
23WP9741232 Whirlpool Dishwasher Screw
24WP98234 Whirlpool Nut
25Screw (2)
26WP356907 Whirlpool Rivet
27WP3373329 Whirlpool Dishwasher Screw
28Side Panel (RH)
29Side Panel (LH)
30Pin, Locator (2)
31WP18776 Whirlpool Lock
