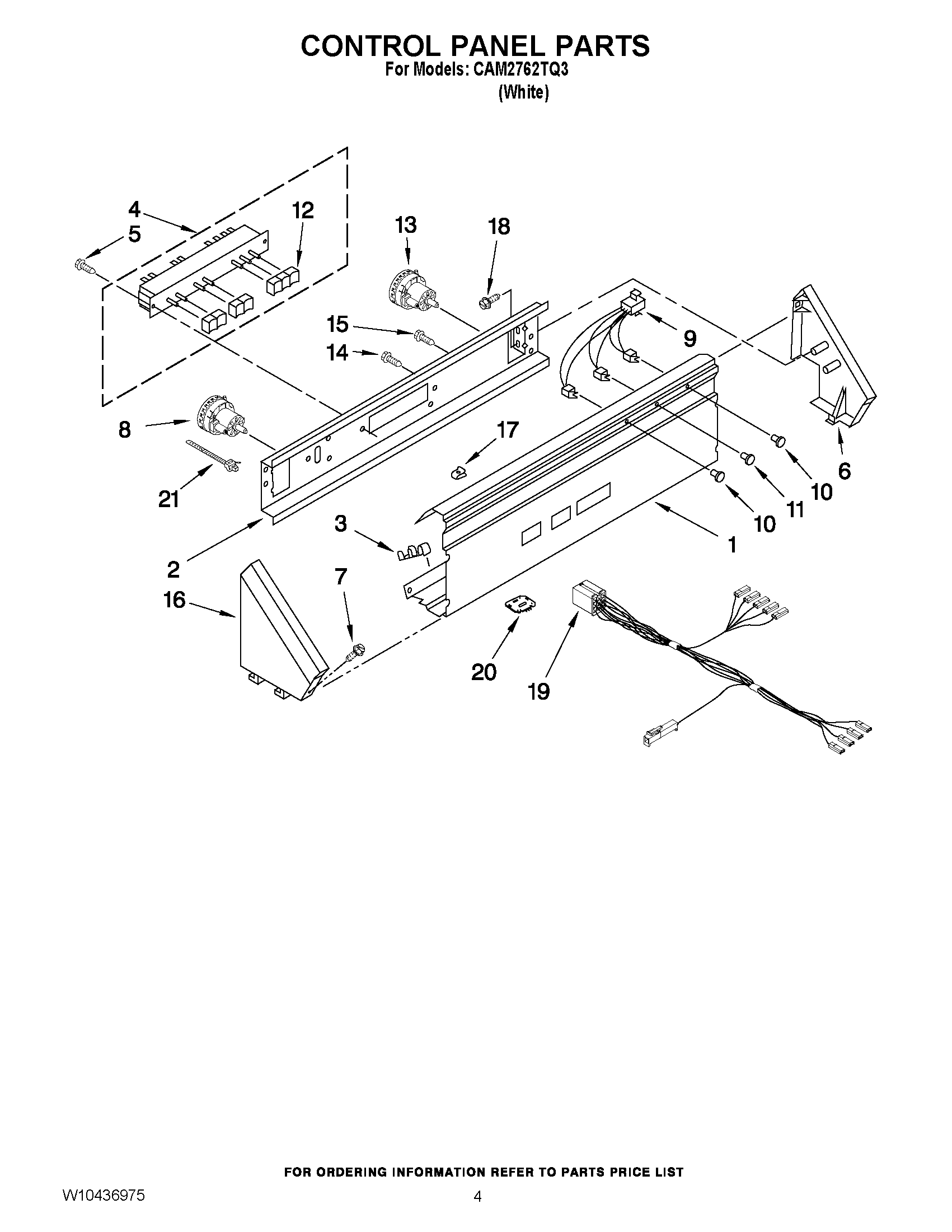

CAM2762TQ3 02 – CONTROL PANEL PARTS

CAM2762TQ3 02 – CONTROL PANEL PARTS

Written by

in

CAM2762TQ3 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Panel, Console
2Bracket, Control
3W10113937 Whirlpool Clamp
4WPW10330140 Whirlpool Push Button Switch
5WPW10139210 Whirlpool Screw
6End Cap (R.H.)
7WP8281182 Whirlpool Screw Assembly
8WPW10414164 Whirlpool Washer Water Level Switch
10WP3348109 Whirlpool Light Lens
11WP3348110 Whirlpool Light Lens
12SWITCH-PB
13WPW10414162 Whirlpool Washer Water Level Switch
143400073 Whirlpool Screw
15WP90767 Whirlpool Screw
16W11686050 Whirlpool Drive Motor
17WP689559 Whirlpool Nut
18WPW10109200 Whirlpool Screw
19Harness, Wiring
20Control, Automatic Temp. (ATC)
21CABLE TIE
