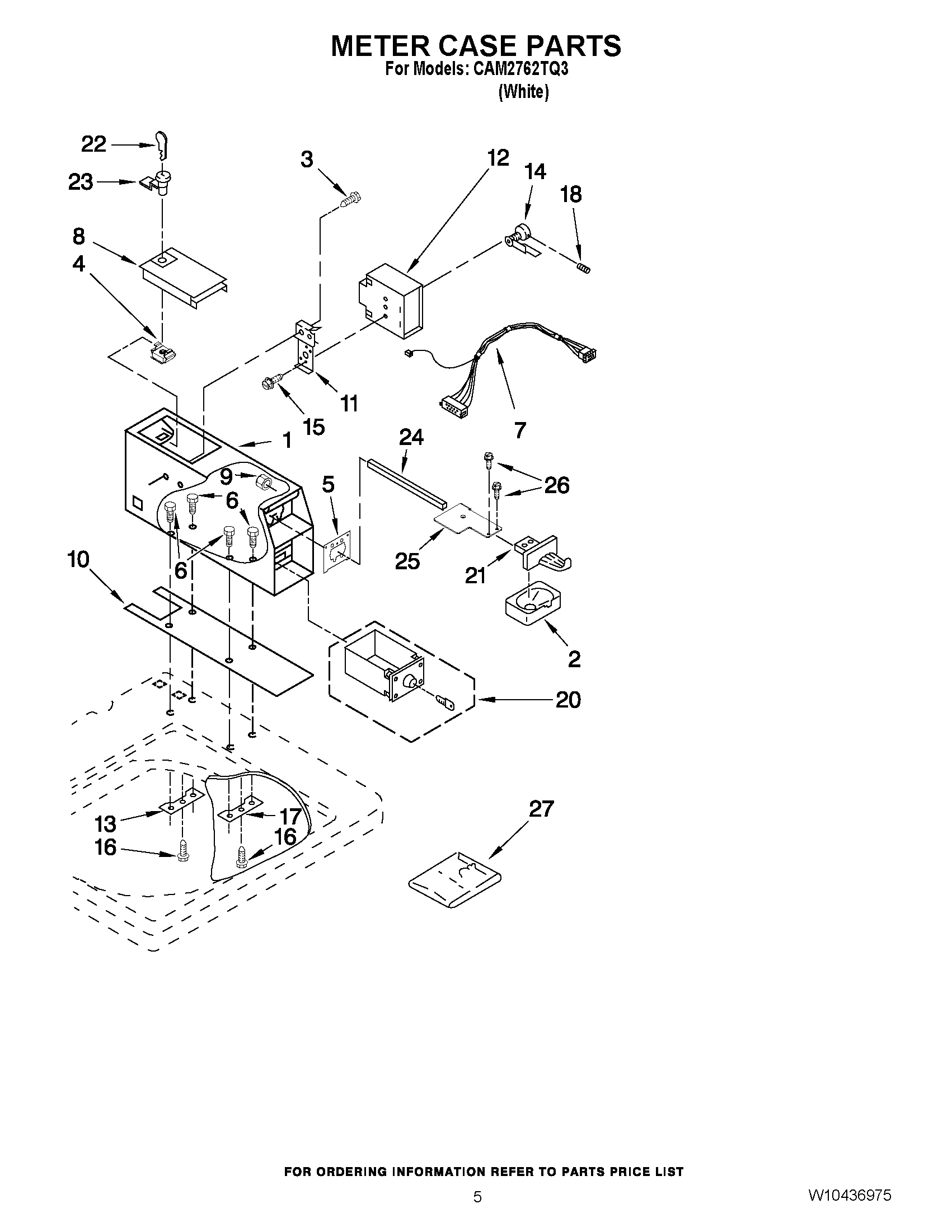

CAM2762TQ3 03 – METER CASE PARTS

CAM2762TQ3 03 – METER CASE PARTS

Written by

in

CAM2762TQ3 03 – METER CASE PARTS

Products

PositionProduct
1WPW10461200 Whirlpool Case
2WP385421 Whirlpool Coin Operated Laundry Funnel
3339805 Whirlpool Screw
4WP90406 Whirlpool Nut
5279950 Whirlpool Funnel
6W11715721 Whirlpool Screw Assembly
63353994 Whirlpool Screw Assembly
7W10138351 Whirlpool Wire Harness
8W11283272 Whirlpool Washer Dryer Meter Case Access Door
9WP3400029 Whirlpool Dishwasher Nut
10WP3954812 Whirlpool Cushion
11Bracket, Timer
12WPW10112081 Whirlpool Timer
13Plate, Mounting
14Clutch, Timer
14WP354987 Whirlpool C-Clip
15WP3400064 Whirlpool Screw
16W10841059 Whirlpool Screw
173347825 Whirlpool Plate
18Setscrew, 10-32
20W11190039 Whirlpool Coin Box Assembly
21W11126319 Whirlpool Washer Dryer Coin Chute
224396669 Whirlpool Washer Dryer Door Key
23W11315637 Whirlpool Lock Assembly
24WP8576635 Whirlpool Bolt
25W11318367 Whirlpool Extension
26WPL 3400086
27WPL 8316524
