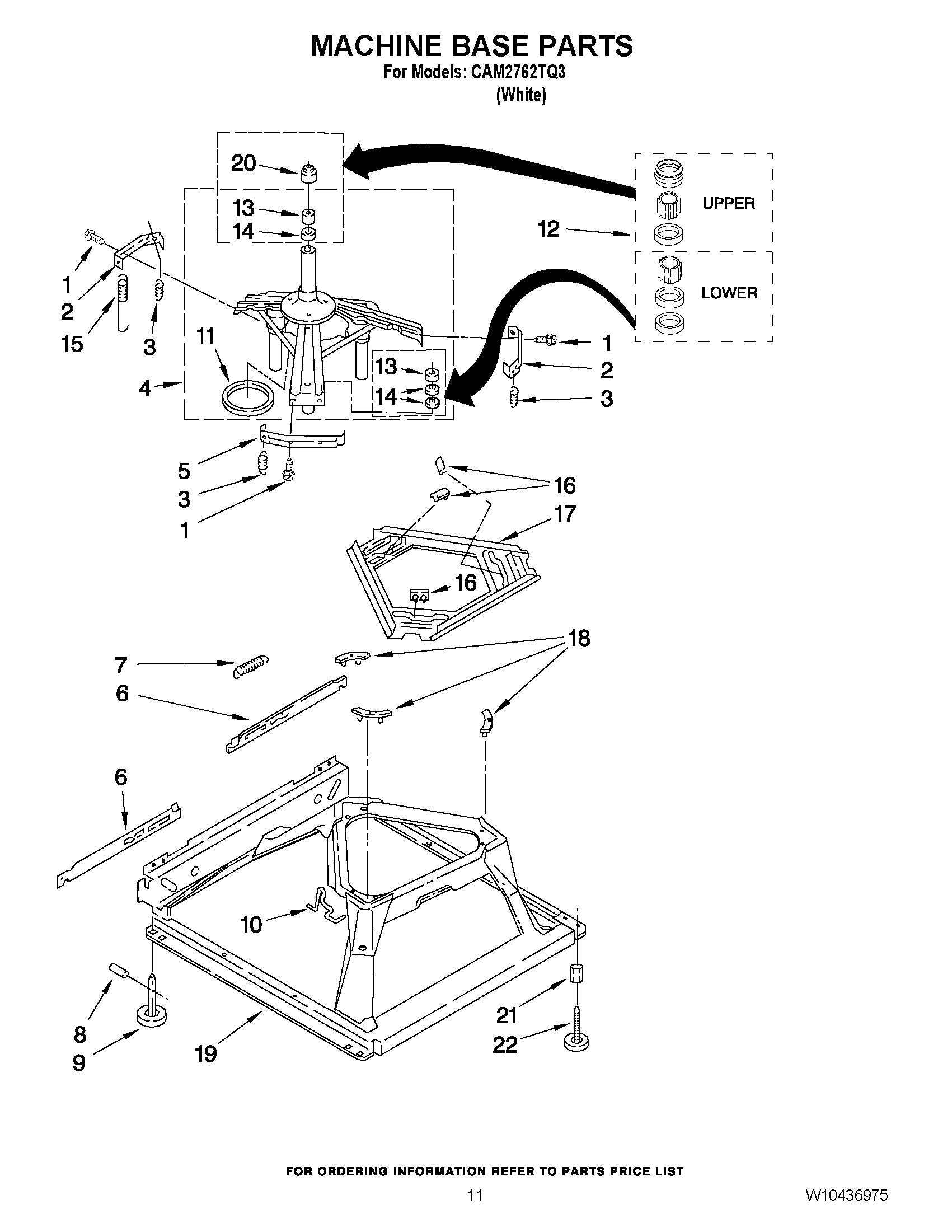

CAM2762TQ3 07 – MACHINE BASE PARTS

CAM2762TQ3 07 – MACHINE BASE PARTS

Written by

in

CAM2762TQ3 07 – MACHINE BASE PARTS

Products

PositionProduct
1W10846509 Whirlpool Screw
2WP64067 Whirlpool Bracket
3WP63907 Whirlpool Washer Suspension Spring
4Support & Brake, Tub
5Bracket, Spring Outer (L.F.)
6Link, Leveling Mechanism (2)
78316845 Whirlpool Washer Spring
8WP62837 Whirlpool Dowel Pin
9285244 Whirlpool Leveling Feet
10WPW10145155 Whirlpool Retainer
11WP63134 Whirlpool Ring
12285203 Whirlpool CP Bearing
13WP8546455 Whirlpool Bearing
14W11095997 Whirlpool Seal
15WPW10250667 Whirlpool Washer Suspension Spring
16285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack
17WP3946509 Whirlpool Skate Plate
18285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack
19Base Assembly (Includes Illus, 6, 7, 8, 9, 16, 17,18, & 26.)
20WP8577376 Whirlpool Seal
21WP3359452 Whirlpool Nut
22WPW10001130 Whirlpool Leveling Leg
