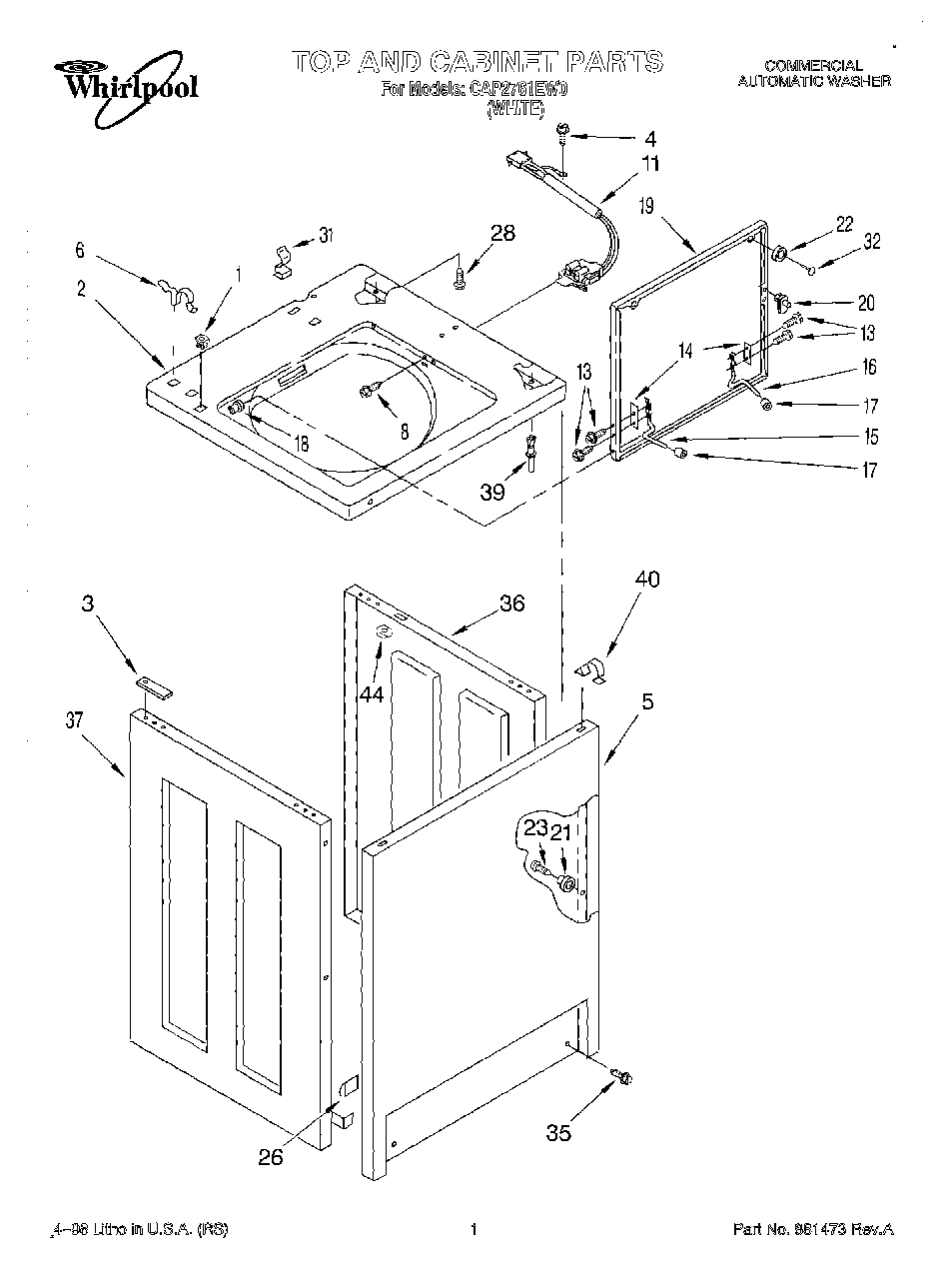

CAP2761EW0 01 – TOP AND CABINET

Products

Position	Product
1	Nut, Push-In (2)
2	Top
3	Spacer, Cabinet To Top (4)
4	SCREW
5	WP3358500 Whirlpool Panel
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP91770 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193854 Whirlpool Lid Assembly
20	WP358684 Whirlpool Strike Assembly
21	Locator (4)
22	BUMPER
23	WP9741232 Whirlpool Dishwasher Screw
26	WP98234 Whirlpool Nut
28	Screw (2)
31	WP90016 Whirlpool Clip
32	WP356907 Whirlpool Rivet
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (White)
37	Panel, L. H. (White)
39	Pin, Locator (2)
40	WP18776 Whirlpool Lock
44	WP90406 Whirlpool Nut
