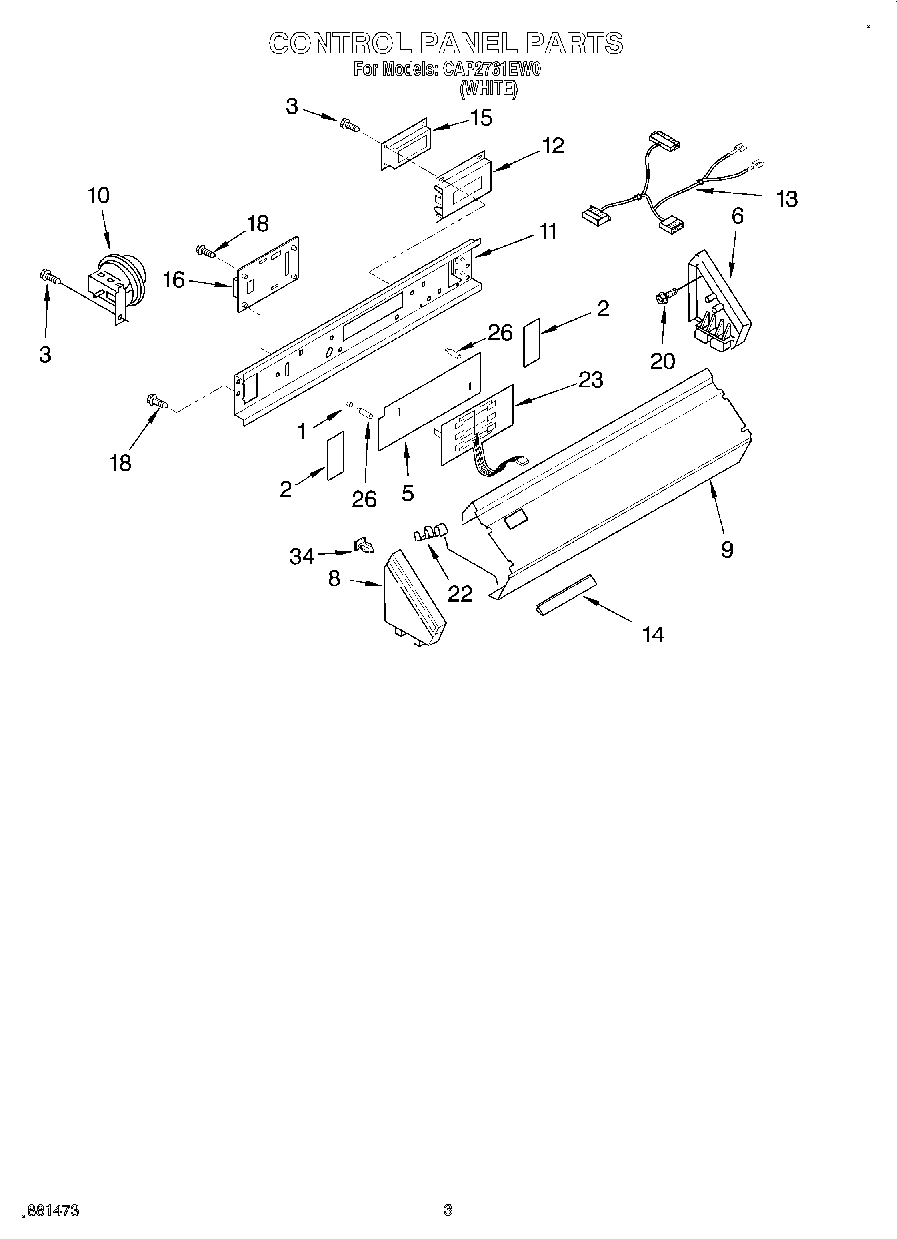

CAP2761EW0 02 – CONTROL PANEL

Products

Position	Product
1	Cap, Stud
2	Backer Plate, Side (2)
3	WP90767 Whirlpool Screw
5	Backer Plate
6	Cap, End (R.H.)
8	W11686050 Whirlpool Drive Motor
9	Panel, Control
10	Switch, Water Level
11	Bracket, Control
12	Lens, Display
13	Harness, Console
14	686770 Whirlpool Support Bracket
15	Display Board
16	WP3407152 Whirlpool Electronic Control Board
18	WPW10366705 Whirlpool Screw
20	WPW10109200 Whirlpool Screw
22	W10113937 Whirlpool Clamp
23	Switch, Membrane
26	Mounting Stud
34	WP689559 Whirlpool Nut
