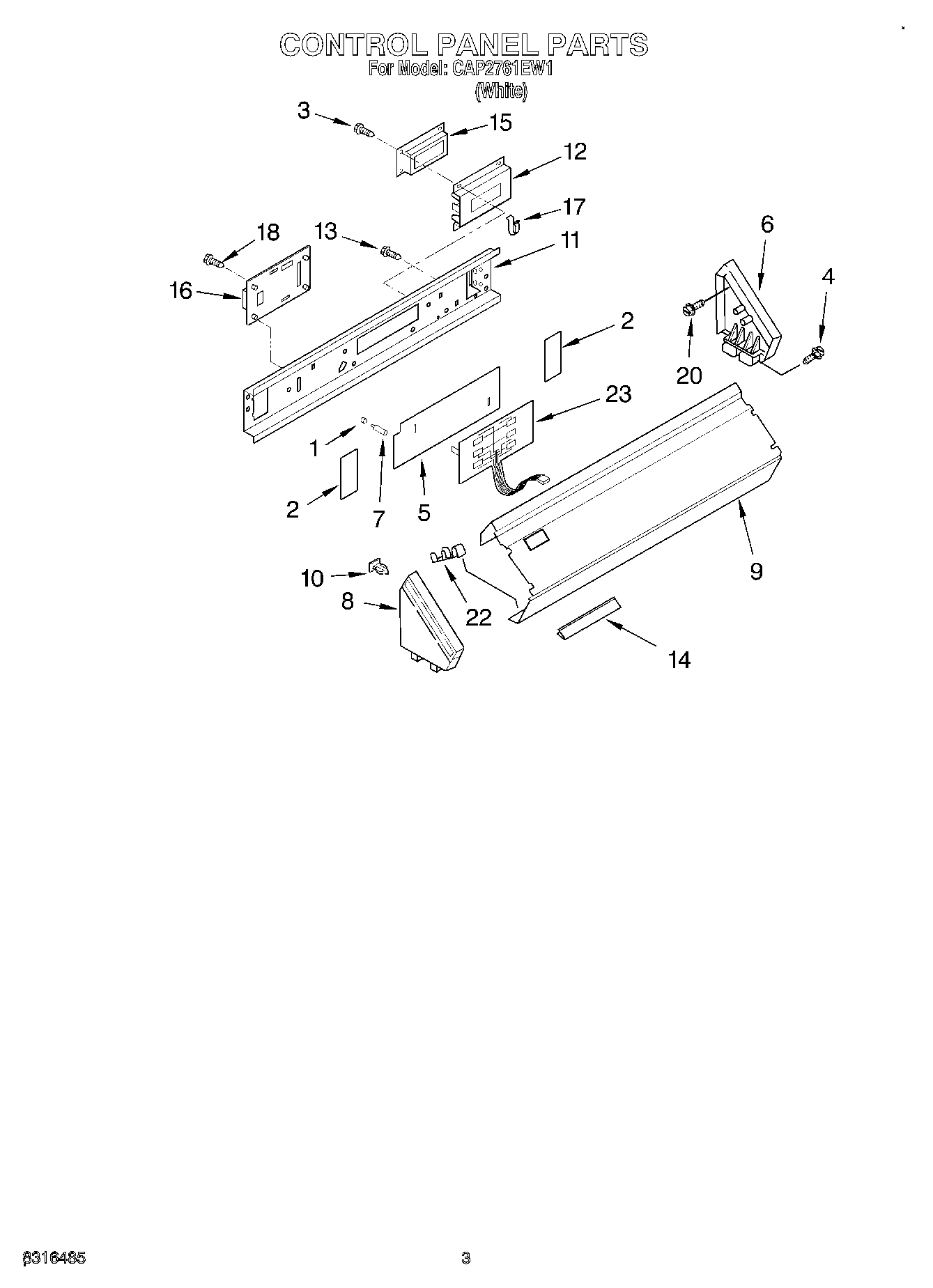

CAP2761EW1 02 – CONTROL PANEL

Products

Position	Product
1	Cap, Stud
2	Backer Plate, Side (2)
3	WP90767 Whirlpool Screw
4	WP388326 Whirlpool Screw
5	Backer Plate
6	Cap, End (R.H.)
7	Mounting Stud
8	W11686050 Whirlpool Drive Motor
9	Panel, Control
10	WP689559 Whirlpool Nut
11	Bracket, Control
12	Lens, Display
13	WP3351614 Whirlpool Screw
14	686770 Whirlpool Support Bracket
15	Display, Electronic
16	WP3407152 Whirlpool Electronic Control Board
17	Clip (2)
18	WPW10366705 Whirlpool Screw
20	WPW10109200 Whirlpool Screw
22	W10113937 Whirlpool Clamp
23	Switch, Membrane
