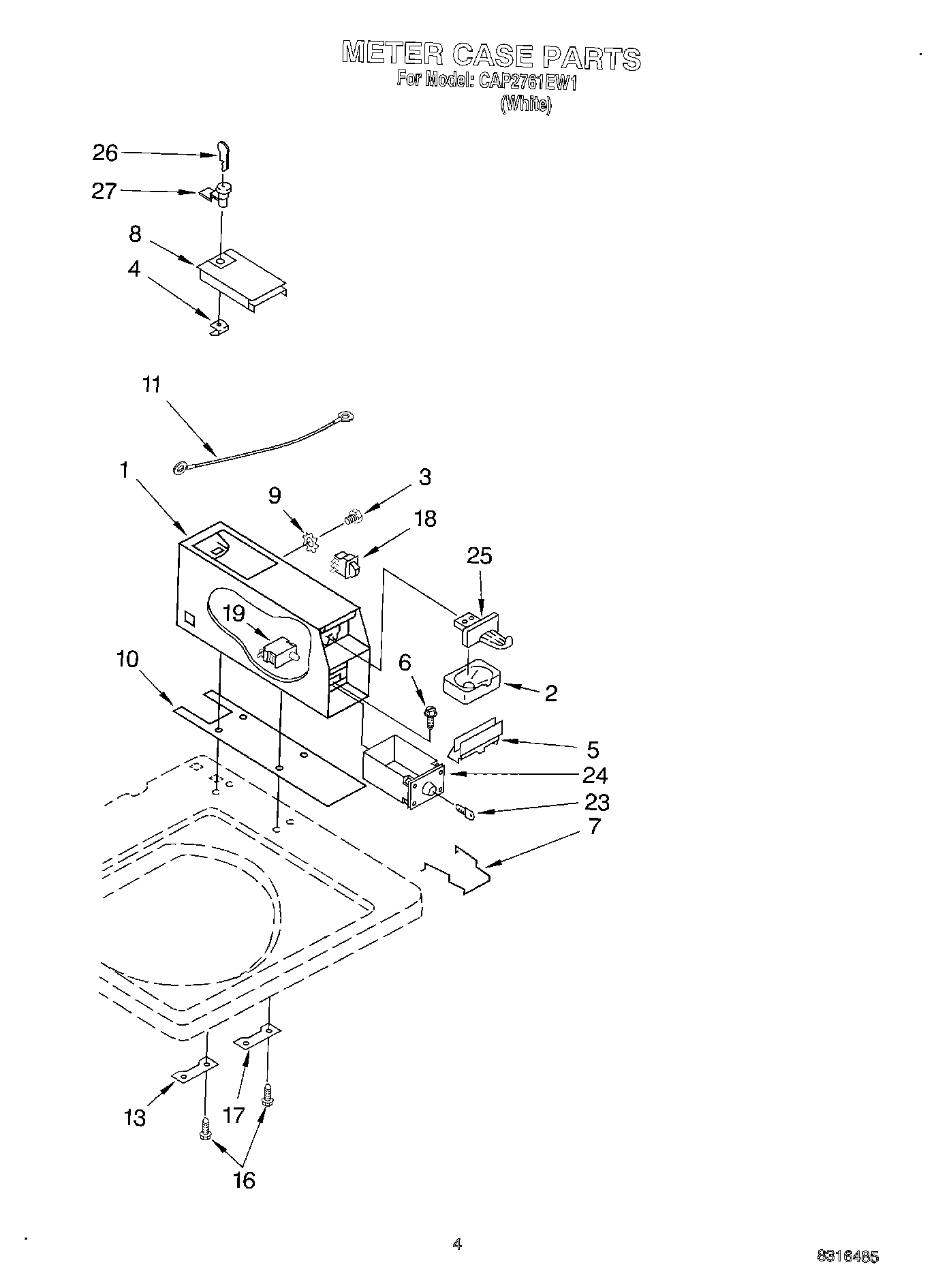

CAP2761EW1 03 – METERCASE

CAP2761EW1 03 – METERCASE

Written by

in

CAP2761EW1 03 – METERCASE

Products

PositionProduct
1Meter Case
2WP385421 Whirlpool Coin Operated Laundry Funnel
3339805 Whirlpool Screw
4WP90406 Whirlpool Nut
5Spacer (Money Vault) (White)
6W11715721 Whirlpool Screw Assembly
63353994 Whirlpool Screw Assembly
7Guide, Drawer
8W11283272 Whirlpool Washer Dryer Meter Case Access Door
9W11170663 Whirlpool Washer
10WP3954812 Whirlpool Cushion
11Wire, Ground
13Plate, Mounting
16W10841059 Whirlpool Screw
173347825 Whirlpool Plate
18Switch, Service Diagnostic
19Vault Switch, Kit (High)
19Vault Switch, Kit (Low)
