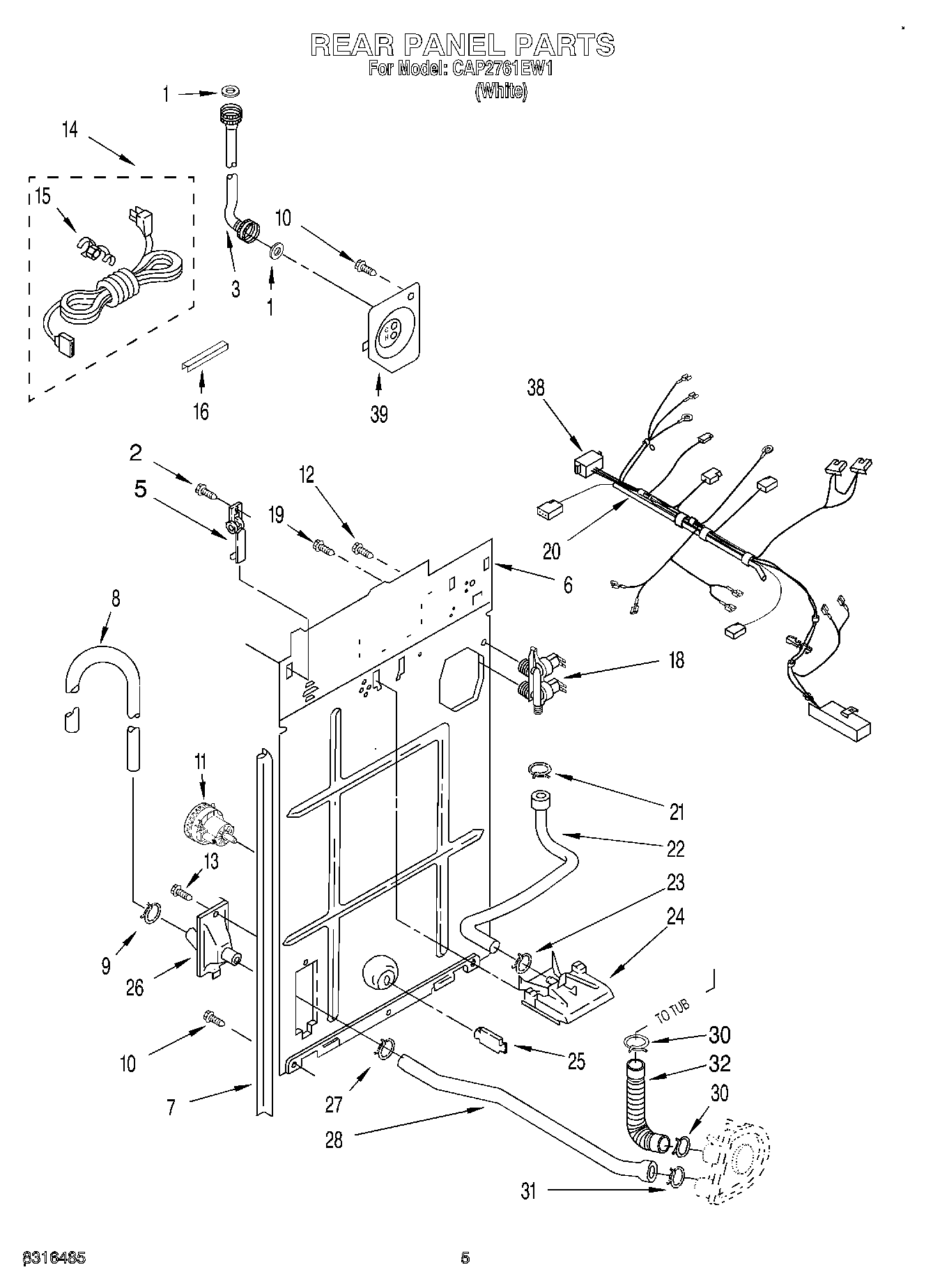

CAP2761EW1 04 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP488729 Whirlpool Refrigerator Door Screw
3	WP89503 Whirlpool Washer Fill Hose
5	Hinge, Console (2)
6	285929 Whirlpool Rear Panel
7	WP62747 Whirlpool Pad
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
8	WP96743 Whirlpool Hose
10	WP3390631 Whirlpool Screw
11	W10339019 Whirlpool Washer Water Level Switch
12	WP3351614 Whirlpool Screw
14	285928 Whirlpool Power Cord Assembly
15	Strain Relief, Power Cord
16	Edge Protector
18	285805 Whirlpool Washer Water Inlet Valve
19	WP9740848 Whirlpool Dishwasher Screw
20	WP353244 Whirlpool Hose
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP3348552 Whirlpool Hose
30	WP616099 Whirlpool Clamp
31	WP285655 Whirlpool Hose Clamp
32	285871 Whirlpool Hose and Clamp
38	Harness, Wiring (Includes No. 20)
39	285930 Whirlpool Plate
