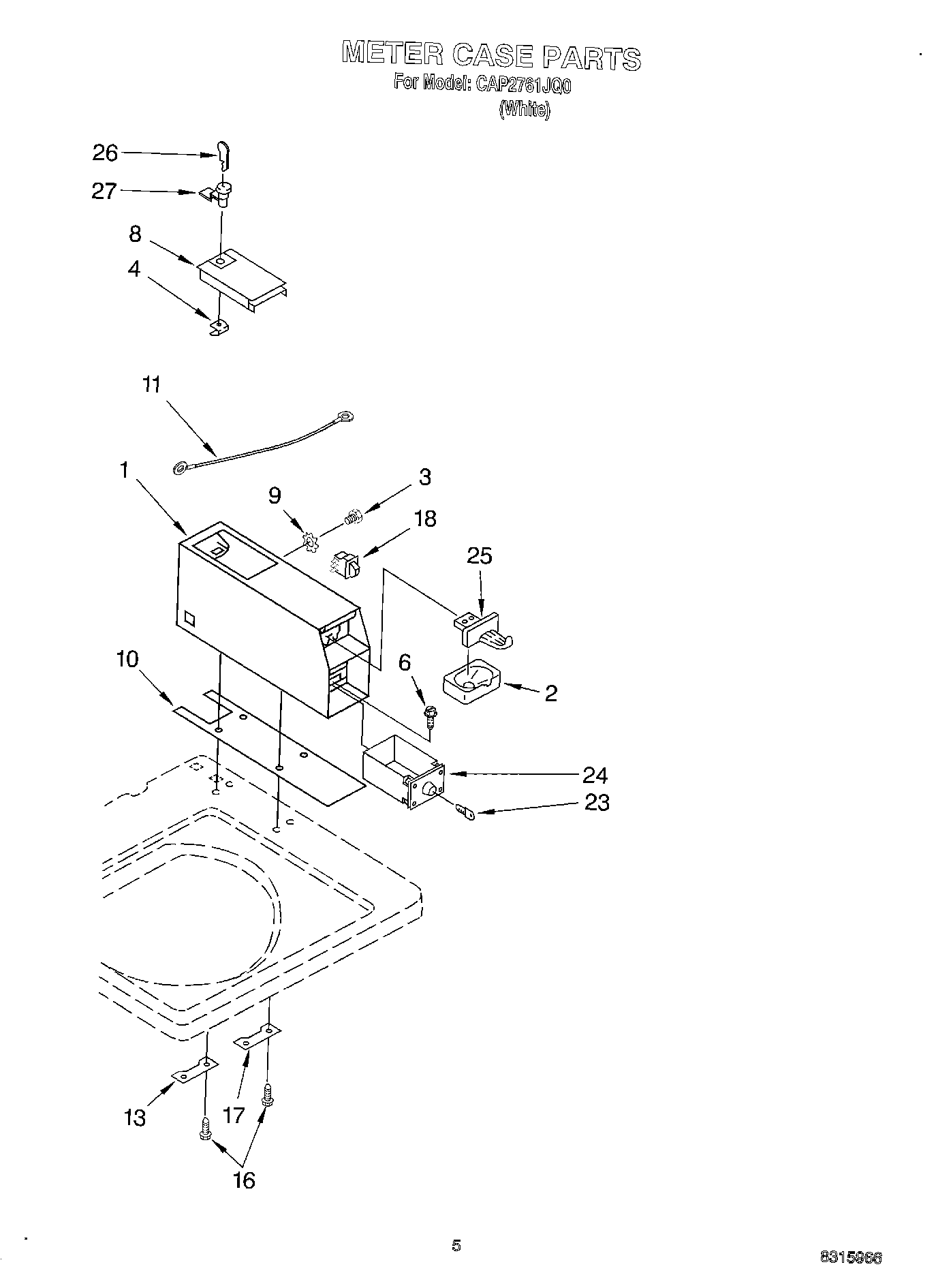

CAP2761JQ0 04 – METER CASE

CAP2761JQ0 04 – METER CASE

Written by

in

CAP2761JQ0 04 – METER CASE

Products

PositionProduct
1WPW10461200 Whirlpool Case
2WP385421 Whirlpool Coin Operated Laundry Funnel
3339805 Whirlpool Screw
4WP90406 Whirlpool Nut
6W11715721 Whirlpool Screw Assembly
63353994 Whirlpool Screw Assembly
8W11283272 Whirlpool Washer Dryer Meter Case Access Door
9W11170663 Whirlpool Washer
10WP3954812 Whirlpool Cushion
11Wire, Ground
13Plate, Mounting
16W10841059 Whirlpool Screw
173347825 Whirlpool Plate
18Switch, Service Diagnostic
