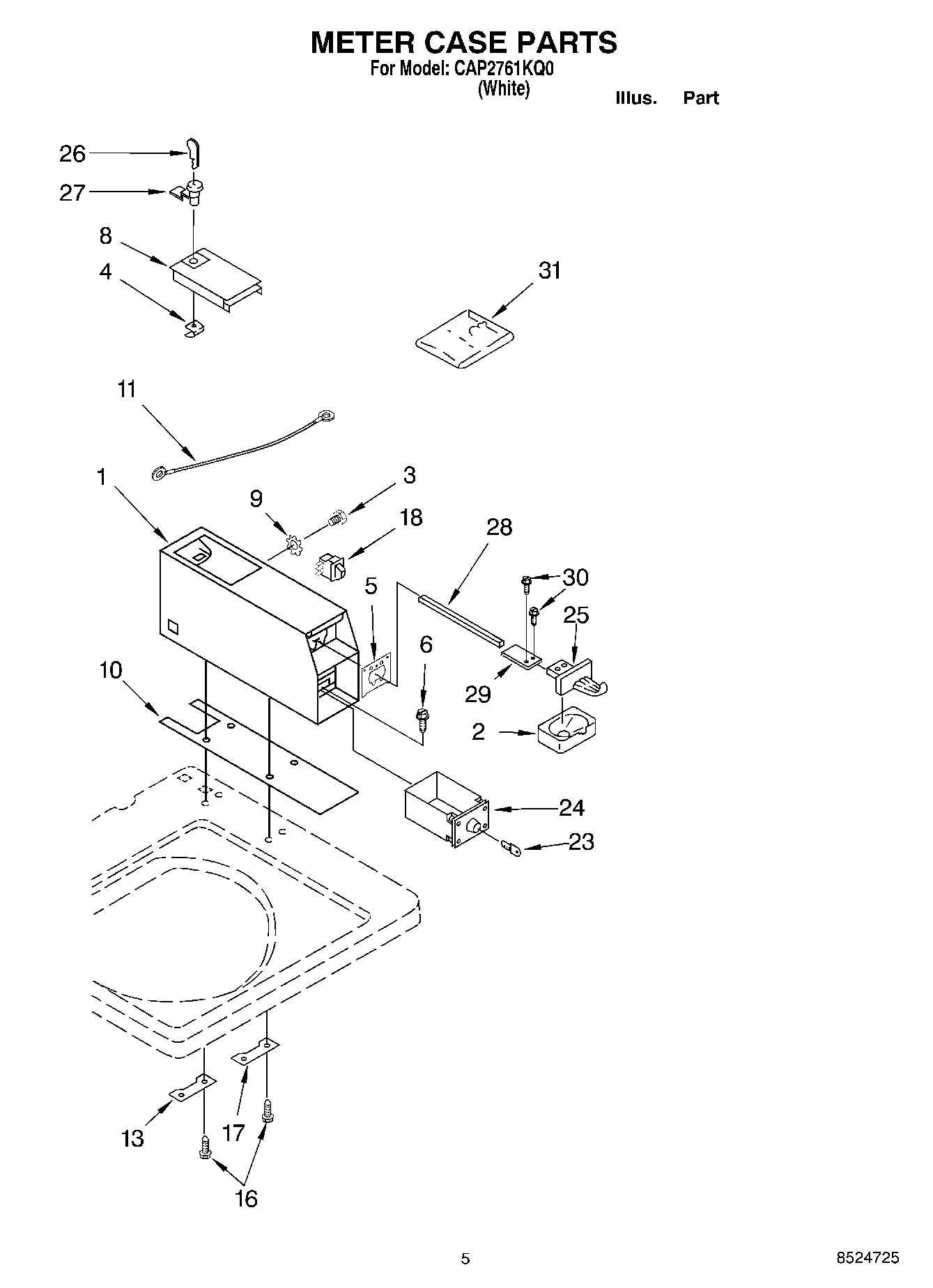

CAP2761KQ0 04 – METER CASE

Products

Position	Product
1	WPW10461200 Whirlpool Case
2	WP385421 Whirlpool Coin Operated Laundry Funnel
3	339805 Whirlpool Screw
4	WP90406 Whirlpool Nut
5	279950 Whirlpool Funnel
6	W11715721 Whirlpool Screw Assembly
6	3353994 Whirlpool Screw Assembly
8	W11283272 Whirlpool Washer Dryer Meter Case Access Door
9	W11170663 Whirlpool Washer
10	WP3954812 Whirlpool Cushion
11	Wire, Ground
13	Plate, Mounting
16	W10841059 Whirlpool Screw
17	3347825 Whirlpool Plate
18	Switch, Service Diagnostic
23	Key, Money Box (Specify Vendor of Money Box When Ordering)
24	W11190039 Whirlpool Coin Box Assembly
25	WPL 8316265
25	Inserts (Not Shown
25	W11126319 Whirlpool Washer Dryer Coin Chute
26	Fascia, Disp (Black)
27	W11315637 Whirlpool Lock Assembly
28	WP8576635 Whirlpool Bolt
29	W11318367 Whirlpool Extension
30	WPL 3400086
31	WPL 8316524
