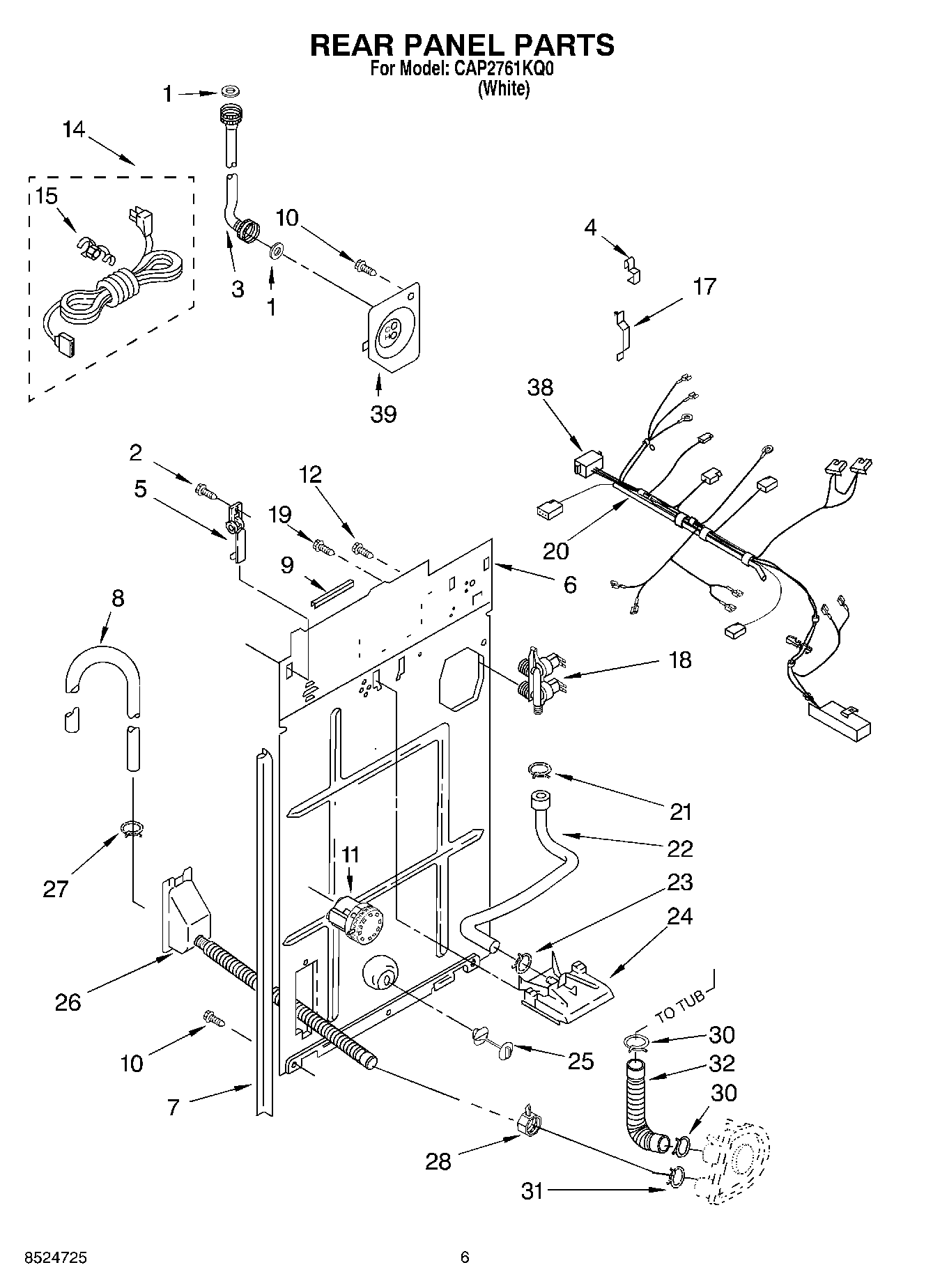

CAP2761KQ0 05 – REAR PANEL

CAP2761KQ0 05 – REAR PANEL

Products

PositionProduct
1WP16123 Whirlpool Washer
2WP488729 Whirlpool Refrigerator Door Screw
3WP3949381 Whirlpool Fill Hose
3WP3949380 Whirlpool Fill Hose
4Clip, Harness
5Hinge, Console (2)
6285929 Whirlpool Rear Panel
7WP62747 Whirlpool Pad
8WP96743 Whirlpool Hose
8285702 Whirlpool Extensions
8285666 Whirlpool Drain Hose 10'
9Edge Protector
10WP3390631 Whirlpool Screw
11W10339019 Whirlpool Washer Water Level Switch
12WP3351614 Whirlpool Screw
14285928 Whirlpool Power Cord Assembly
15Strain Relief, Power Cord
17Clip, Harness
18285805 Whirlpool Washer Water Inlet Valve
19WP9740848 Whirlpool Dishwasher Screw
20WP353244 Whirlpool Hose
21WP596669 Whirlpool Hose Clamp
22HOSE
24WP3347034 Whirlpool Vacuum Break
25WP8519200 Whirlpool Support Assembly
26WPW10358149 Whirlpool Hose
27WP356138 Whirlpool Hose Clamp
28Clamp, Hose
30WP616099 Whirlpool Clamp
31WP285655 Whirlpool Hose Clamp
32285871 Whirlpool Hose and Clamp
38Harness, Wiring (Includes No. 20)
39285930 Whirlpool Plate
