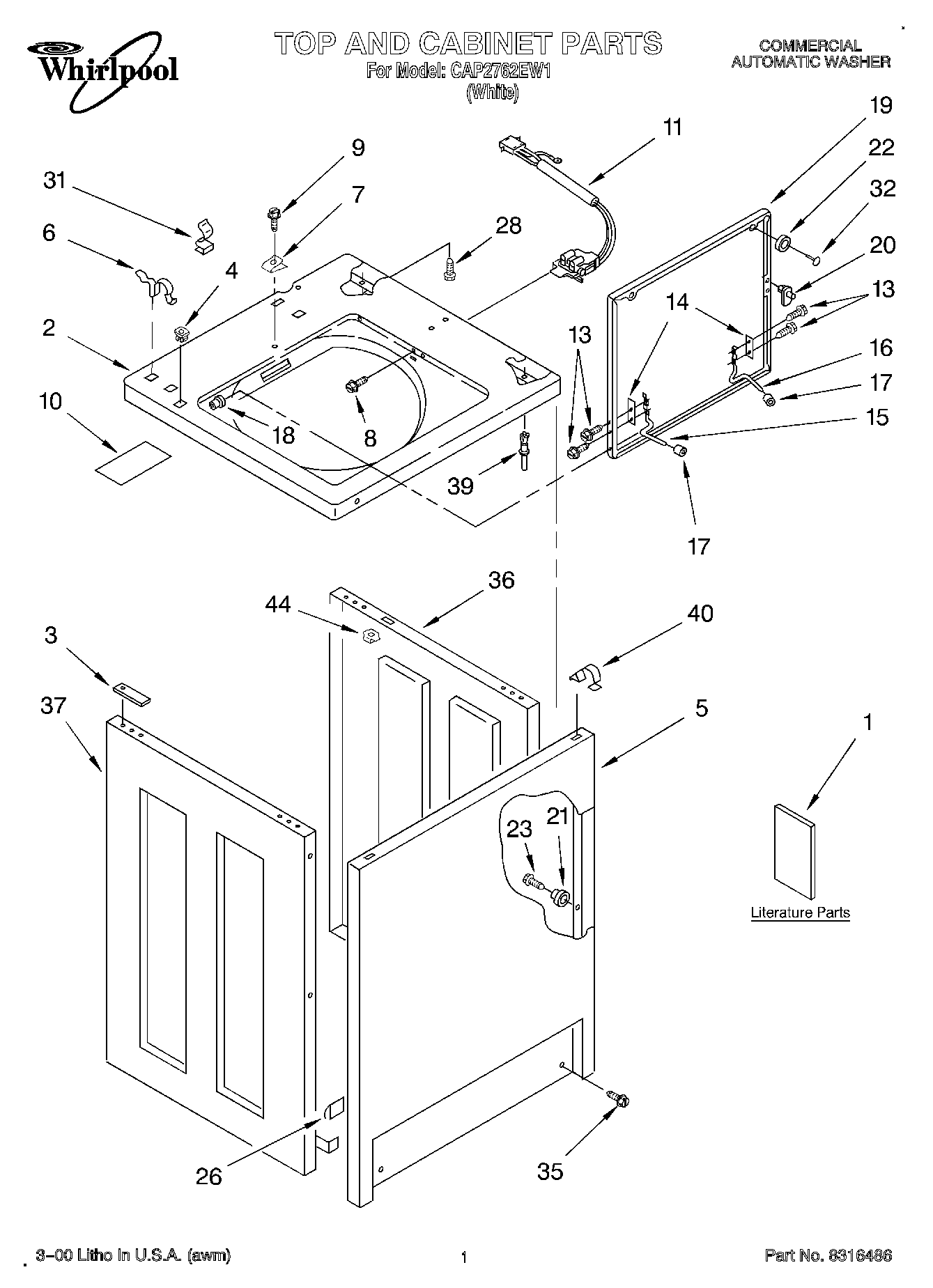

CAP2762EW1 01 – TOP AND CABINET, LITERATURE

CAP2762EW1 01 – TOP AND CABINET, LITERATURE

Written by

in

CAP2762EW1 01 – TOP AND CABINET, LITERATURE

Products

PositionProduct
1Literature Parts (Repair Parts List)
1Literature Parts (Tech Sheet)
1Literature Parts (Installation Instructions)
1Literature Parts (Wiring Diagram)
2Top
3Spacer, Cabinet To Top (4)
4Nut, Push-In (2)
5WP3358500 Whirlpool Panel
6WP62780 Whirlpool Cabinet Clip
7Clip, Static Ground
8WP3356311 Whirlpool Screw
9WP355214 Whirlpool Screw
10Shield, Pressure Switch
11285671 Whirlpool Lid Switch Assembly
13SCREW
14WP21097 Whirlpool Pad
15WP54584 Whirlpool Hinge
16WP91770 Whirlpool Hinge
17Bumper, Lid Hinge
18WP21258 Whirlpool Washer Lid Hinge Bearing
19WPW10193854 Whirlpool Lid Assembly
20WP358684 Whirlpool Strike Assembly
21Locator (4)
22BUMPER
23WP9741232 Whirlpool Dishwasher Screw
26WP98234 Whirlpool Nut
28Screw (2)
31WP90016 Whirlpool Clip
32WP356907 Whirlpool Rivet
35WP3373329 Whirlpool Dishwasher Screw
36Panel, R. H. (White)
37Panel, L. H. (White)
39Pin, Locator (2)
40WP18776 Whirlpool Lock
44WP90406 Whirlpool Nut
