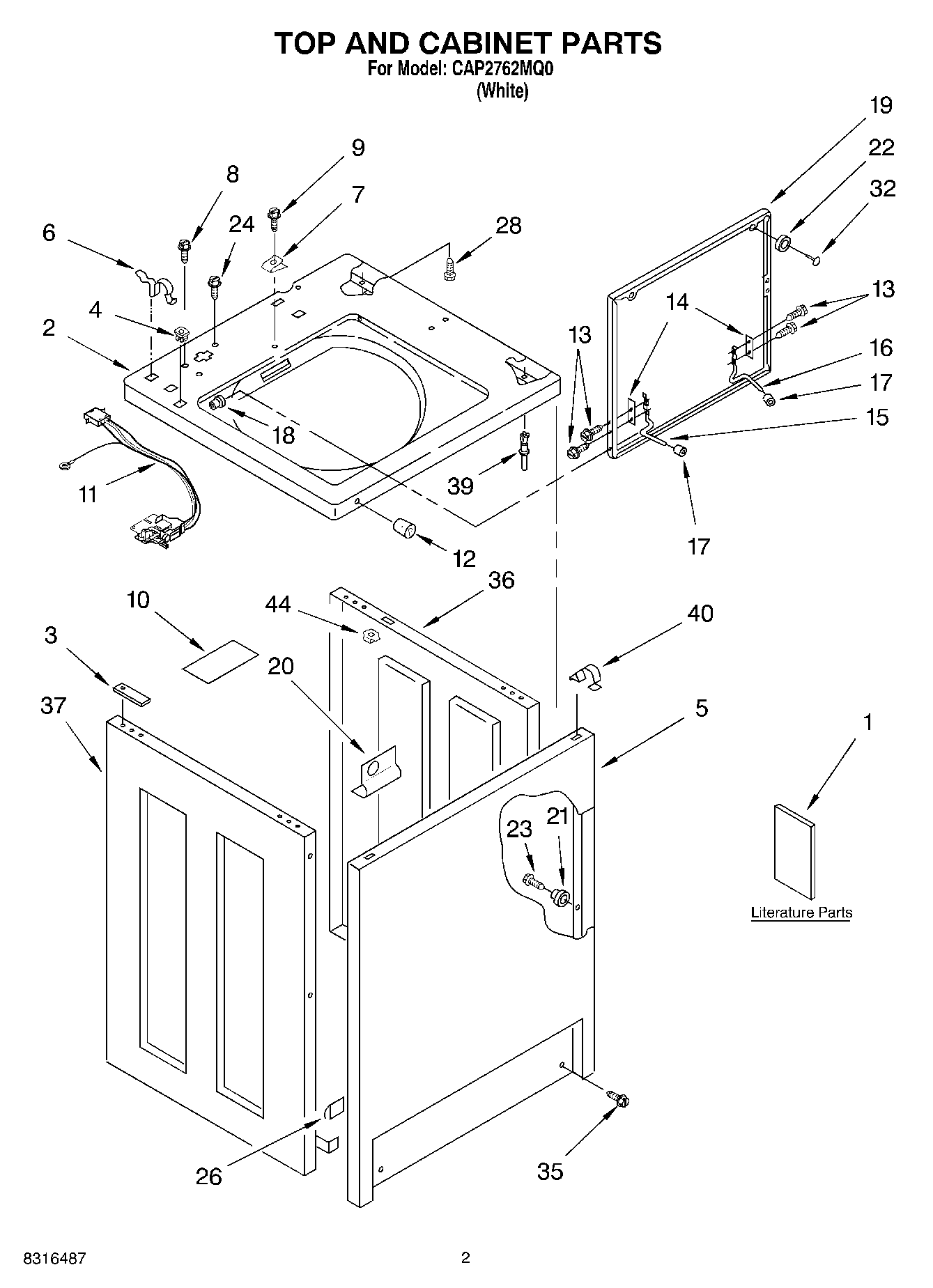

CAP2762MQ0 01 – TOP AND CABINET PARTS

Products

Position	Product
1	Literature Parts (Repair Parts List)
1	Literature Parts (Tech Sheet)
1	Literature Parts (Wiring Diagram)
1	Literature Parts (Instructions, Coin Slide)
1	Literature Parts (Installation Instructions)
2	Top
3	Spacer, Cabinet To Top (4)
4	Nut, Push-In (2)
5	WP3358500 Whirlpool Panel
6	WP62780 Whirlpool Cabinet Clip
7	Clip, Static Ground
8	Screw, Lid Switch (2)
9	WP355214 Whirlpool Screw
10	Shield, Pressure Switch
11	WP8054980 Whirlpool Lid Switch Assembly
12	WP387371 Whirlpool Plug
13	SCREW
14	WP21097 Whirlpool Pad
15	WP8524784 Whirlpool Hinge Assembly
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	WPW10193854 Whirlpool Lid Assembly
20	Rivet (2)
20	Bracket, Lock
21	Locator (4)
22	BUMPER
23	WP9741232 Whirlpool Dishwasher Screw
24	WP3351614 Whirlpool Screw
26	WP98234 Whirlpool Nut
28	Screw (2)
32	WP356907 Whirlpool Rivet
35	WP3373329 Whirlpool Dishwasher Screw
36	Panel, R. H. (White)
37	Panel, L. H. (White)
39	Pin, Locator (2)
40	WP18776 Whirlpool Lock
44	WP90406 Whirlpool Nut
