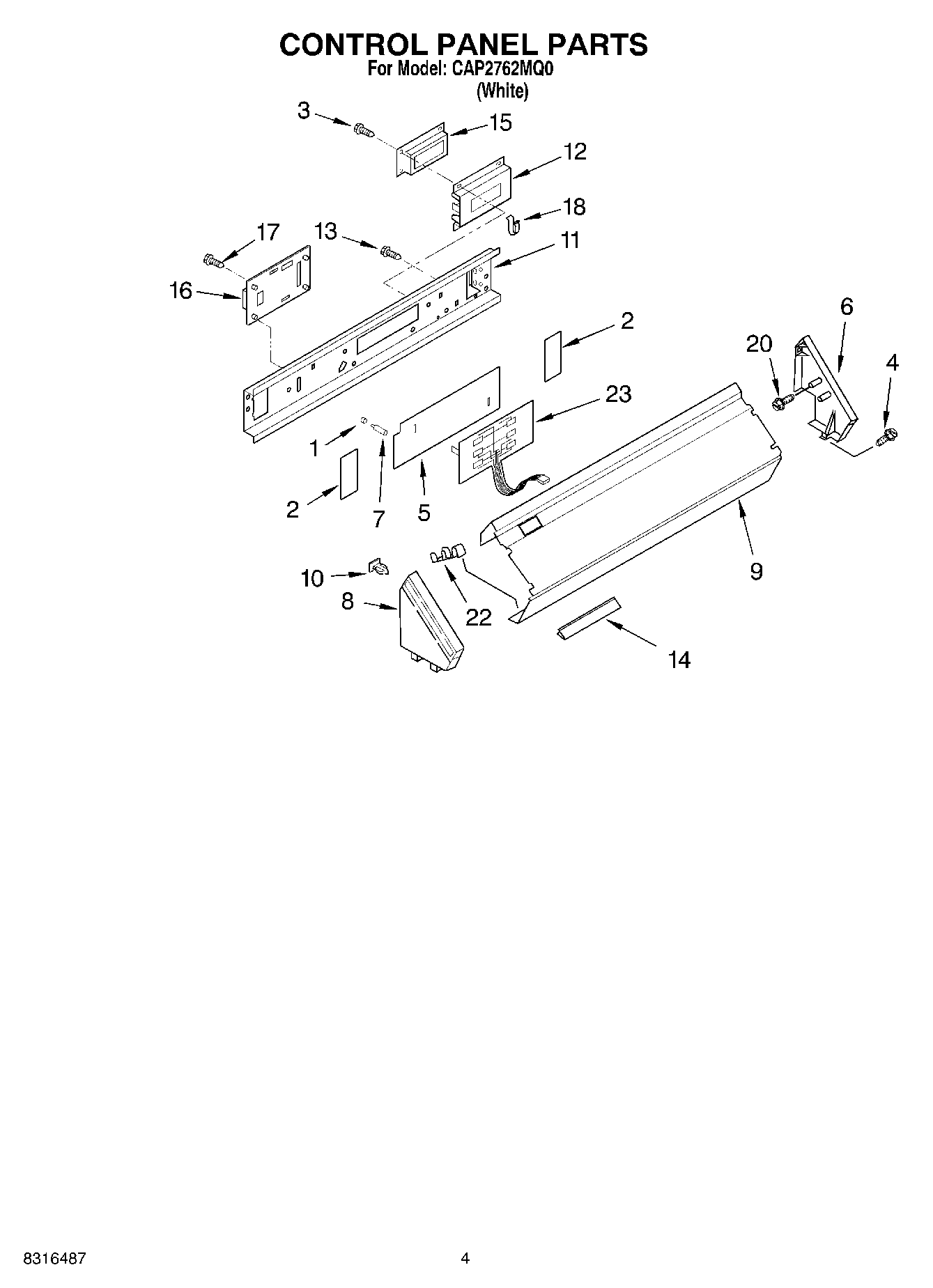

CAP2762MQ0 02 – CONTROL PANEL PARTS

Products

PositionProduct
1Cap, Stud
2Backer Plate, Side (2)
3WP90767 Whirlpool Screw
4WP8281182 Whirlpool Screw Assembly
5Backer Plate
6Cap, End (R.H.)
7Mounting Stud
8W11686050 Whirlpool Drive Motor
9Panel, Control
10WP689559 Whirlpool Nut
11Bracket, Control
12Lens, Display
13WP3351614 Whirlpool Screw
14686770 Whirlpool Support Bracket
15Display, Electronic
16WP3407152 Whirlpool Electronic Control Board
17WPW10366705 Whirlpool Screw
18Clip (2)
20WPW10109200 Whirlpool Screw
22W10113937 Whirlpool Clamp
23Switch, Membrane
