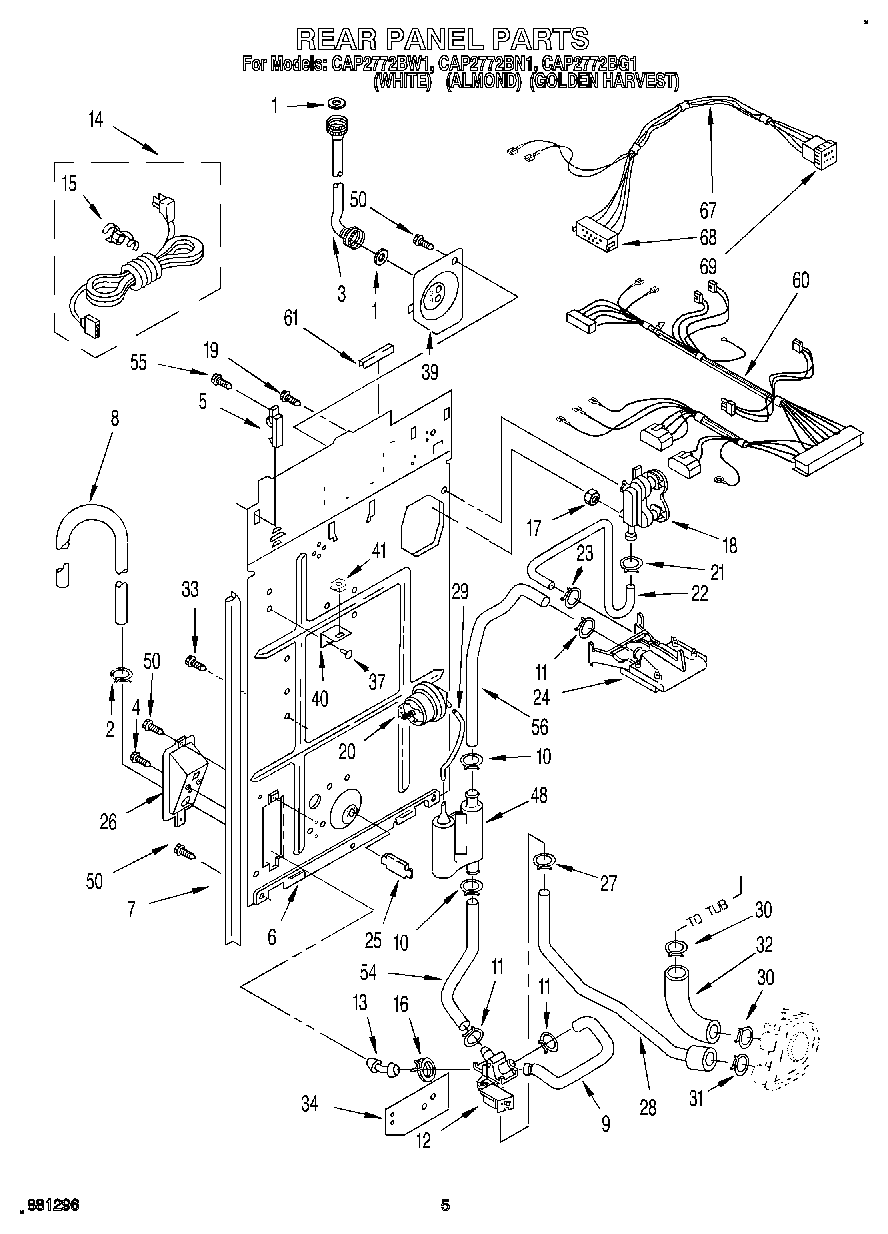

CAP2772BG1 04 – REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	WP3357331 Whirlpool Clamp
3	WP89503 Whirlpool Washer Fill Hose
4	Screw (2)
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	WP96743 Whirlpool Hose
9	Hose-Two Way Valve/ To Drain
11	3363365 Whirlpool Clamp
12	Valve, Two-Way
13	Connector, Hose
14	285928 Whirlpool Power Cord Assembly
15	Strain Relief, Power Cord
16	WP285655 Whirlpool Hose Clamp
17	WP96160 Whirlpool Washer Inlet Valve Screen
18	285805 Whirlpool Washer Water Inlet Valve
20	Switch, Pressure (Recirculate)
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	Break, Vacuum
25	WP8519200 Whirlpool Support Assembly
26	Bracket, Valve
27	WP356138 Whirlpool Hose Clamp
28	Hose, Pump To Two-Way Valve
29	WP353244 Whirlpool Hose
30	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
33	WPW10139210 Whirlpool Screw
34	Shield, Valve
37	Rivet (2)
39	285930 Whirlpool Plate
40	Bracket, Top Lock
41	WP90406 Whirlpool Nut
48	Air-Dome
50	WP3390631 Whirlpool Screw
54	Hose/Two-way Valve To Air Dome
55	WP308685 Whirlpool Microwave Screw
56	Hose, Air-Dome To Vacuum Break
60	Harness, Wiring (For Detail See Wiring Harness Parts Page.) Also See Clips.
61	Edge Protector
67	Harness, Timer (Includes Illus. 68 & 69)
68	W10876590 Whirlpool Connector
69	Cap, Terminal (15 Way)
